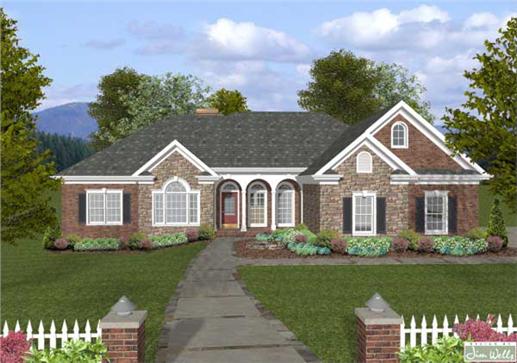

This is a colorful rendering of the front of these Traditional Ranch Homeplans.

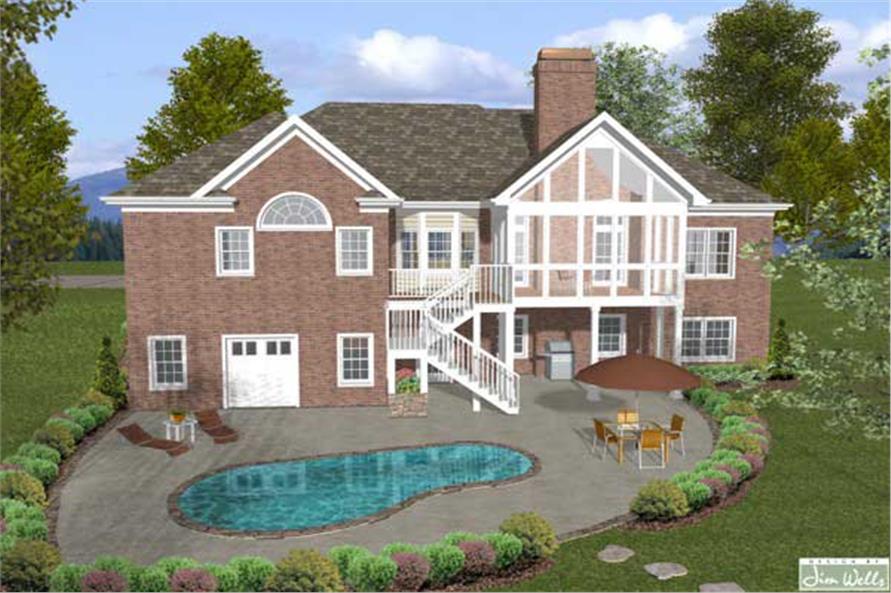

Home Plan Rear Elevation
4-Bedroom, 2000 Sq Ft Ranch House Plan - 109-1048 - Front Exterior
Home Plan Rear Elevation

About Plan # 109-1048

About Plan # 109-1048

2000 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 63' 0" WIDTH 62' 8" DEPTH 3 GARAGE BAY

We've integrated our customer's most requested features into a mid-sized ranch house plan in the creation of this attractive new design. The brick and stone exterior is accented with a "Palladian" window, multi-level trim and an inviting front porch. A flexible office/living/4th bedroom, an exquisite master suite, a 3-car garage with extra storage space, and a large screened porch are sure to make this 2000 square foot home irresistible. The exceptional master suite, with direct access to the deck, a sitting area, full-featured bath, and spacious walk-in closets, create a true "Master's Retreat." A bay window brightens the casual dining room and kitchen. Vaulted or trayed ceilings adorn the living, family room, master suite and cozy coffee corner. Other rooms have 9' ceilings. The upper level bonus room features approx. 495 sq. ft. of functional living space with 5 ft. knee walls rising up to an 8 ft. ceiling. The secondary bedroom suites, each measuring approx. 13' x 11', have walk-in closets and private baths. A breezy screened porch, measuring 16x138, features a vaulted ceiling with a ceiling fan.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

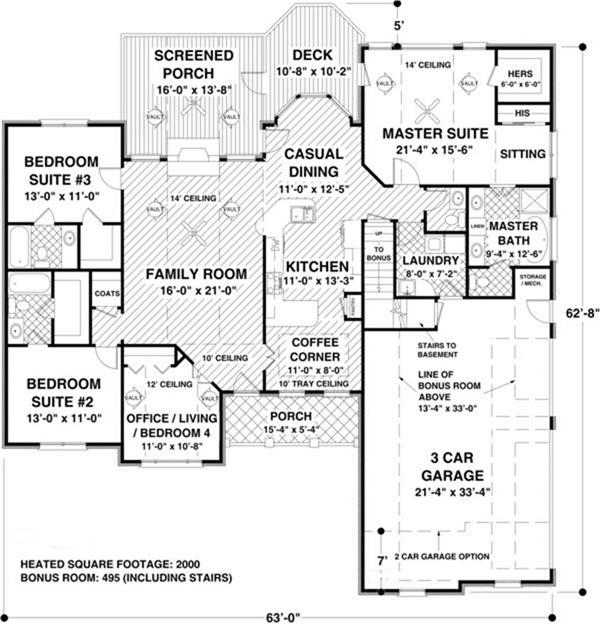

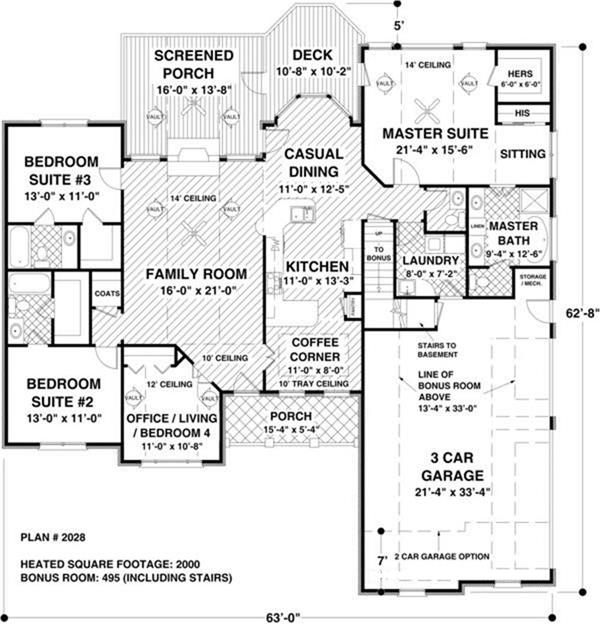

Home Plan: #109-1048 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #109-1048
Home Plan: #109-1048 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #109-1048
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1048
Floors:
1
Bedrooms:
4
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
2000
Main Floor:
2000
Unfinished Sq Ft:
Bonus Room:
495
Garage :
707

Dimensions

Width:
63' 0"
Depth:
62' 8"
Ridge Height:
23' 6"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Brick
Rock/Stone

Roofing Type

Hip
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12
10/12

Special Feature

In Home Gym
Fireplace
Dining Room
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Sundeck
Screened Porch/Sunroom

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Private Deck

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
