Contemporary home (ThePlanCollection: Plan #193-1146)

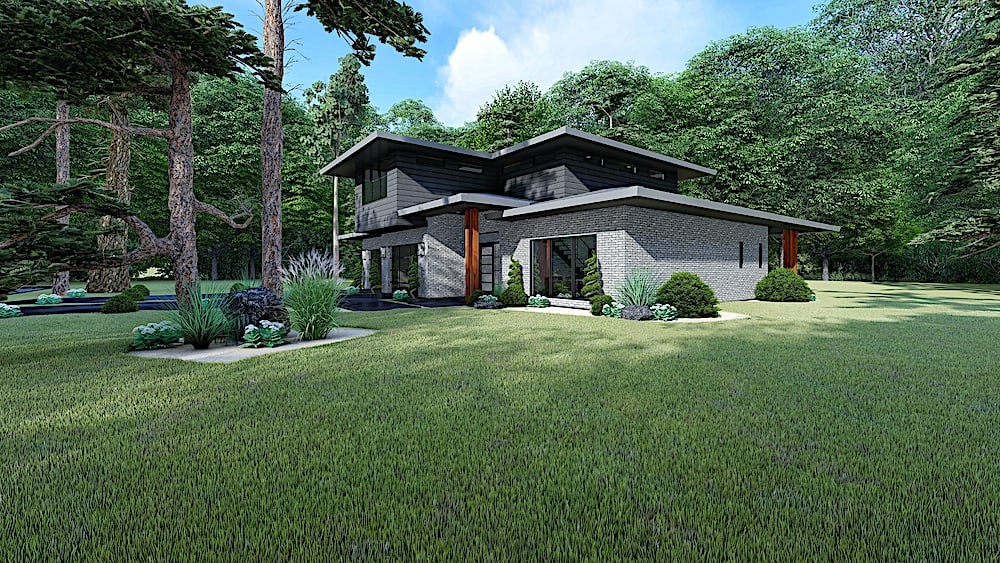

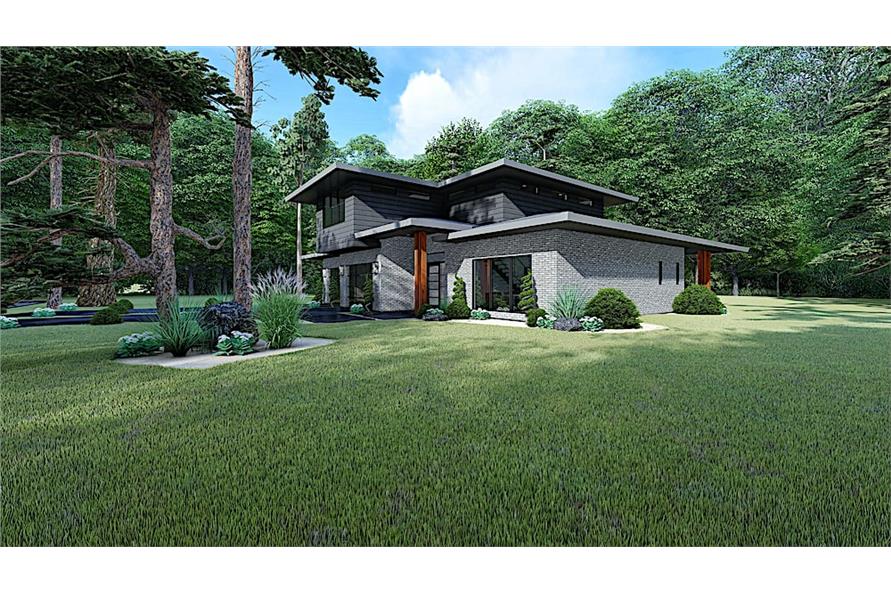

193-1146: Home Other Image-Right Side View

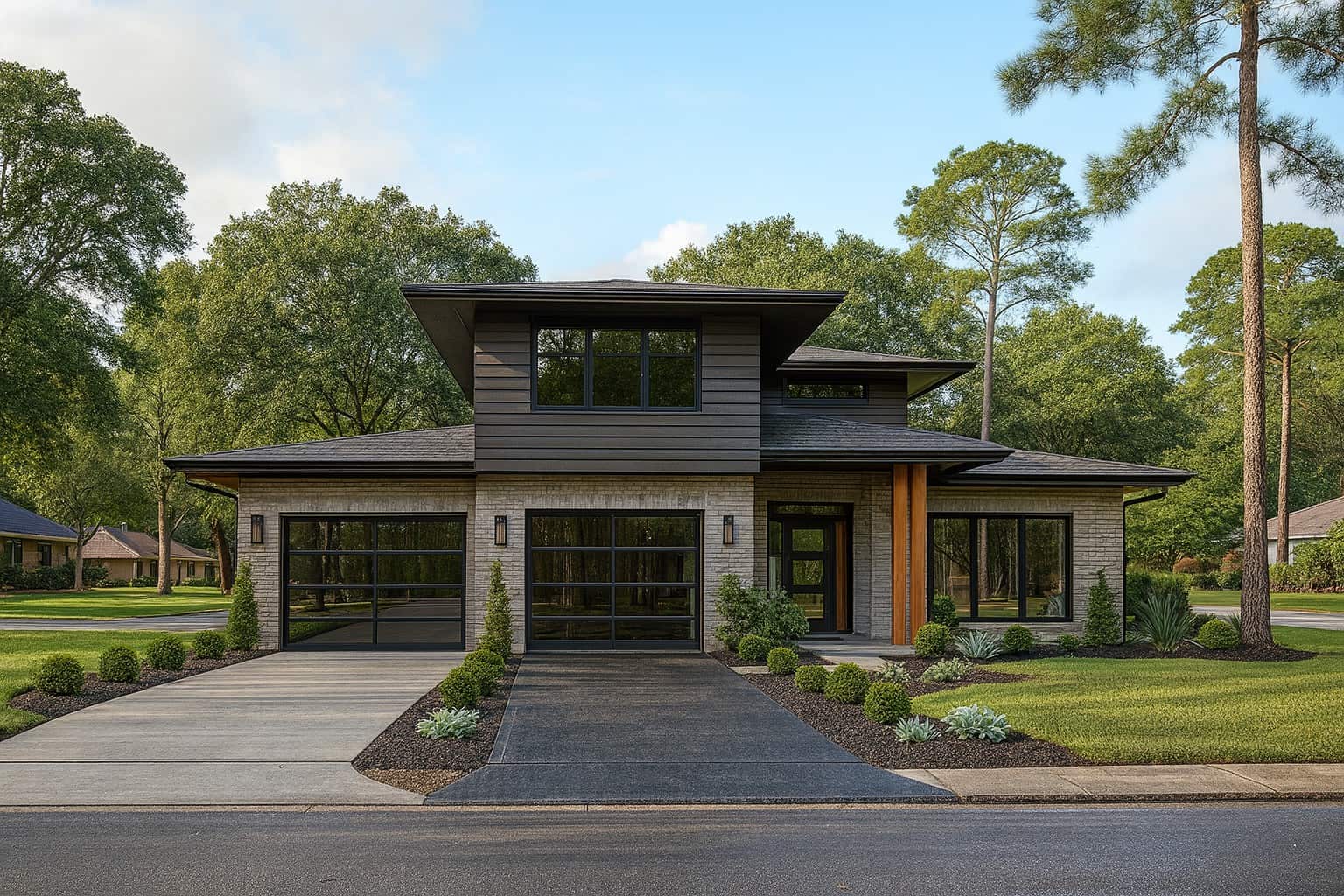

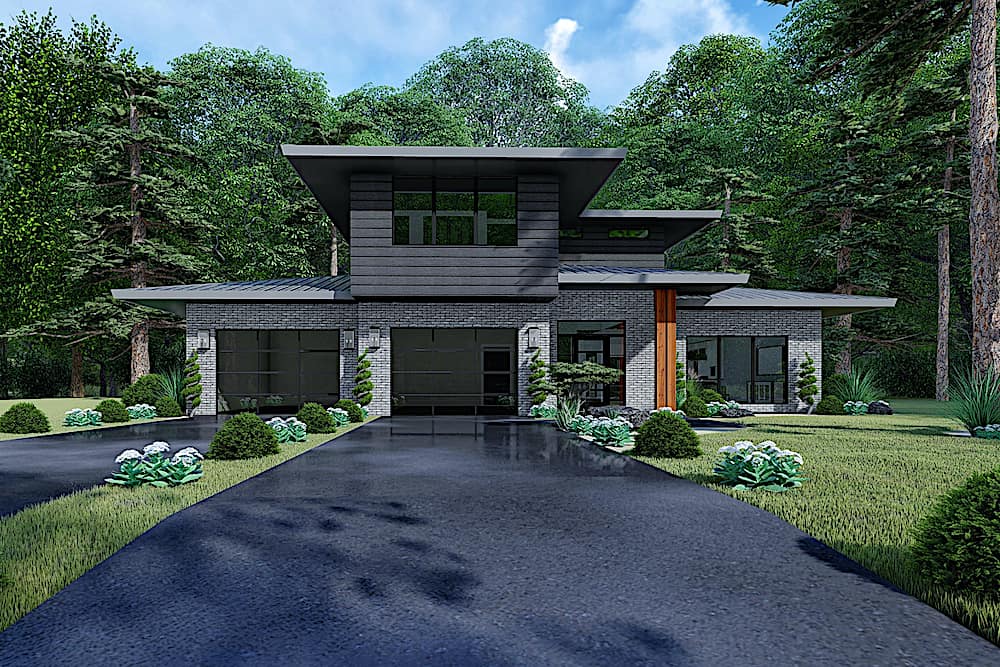

3-Bedroom, 2092 Sq Ft Contemporary Home - Plan #193-1146 - Main Exterior
193-1146: Home Other Image-Right Side View

About Plan # 193-1146

About Plan # 193-1146

2092 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1.5 FLOOR 53' 4" WIDTH 48' 10" DEPTH 2 GARAGE BAY

This Contemporary style house with Prairie attributes is sure to suit a growing family with its superb design both inside and out. The echoes of Frank Lloyd Wright in the strong horizontal lines of the design and shallow hip roof – not to mention the eminently livable floor plan – give the home enormous curb appeal and even more appeal upon entering the house. The graceful 1.5-story floor plan has 2092 square feet of heated-and-cooled living space and includes 3 bedrooms and 2 full bathrooms.

Each plan set includes the following:

  • Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer framing, plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

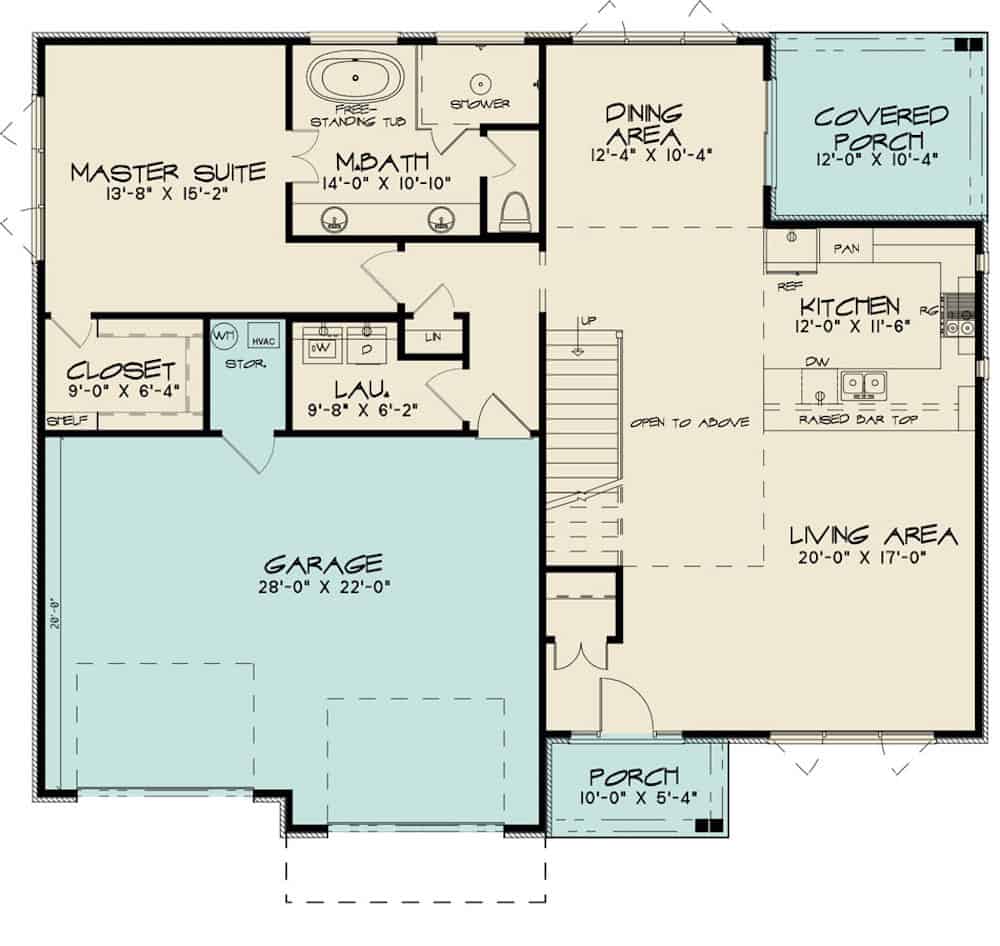

Home Plan: #193-1146 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #193-1146

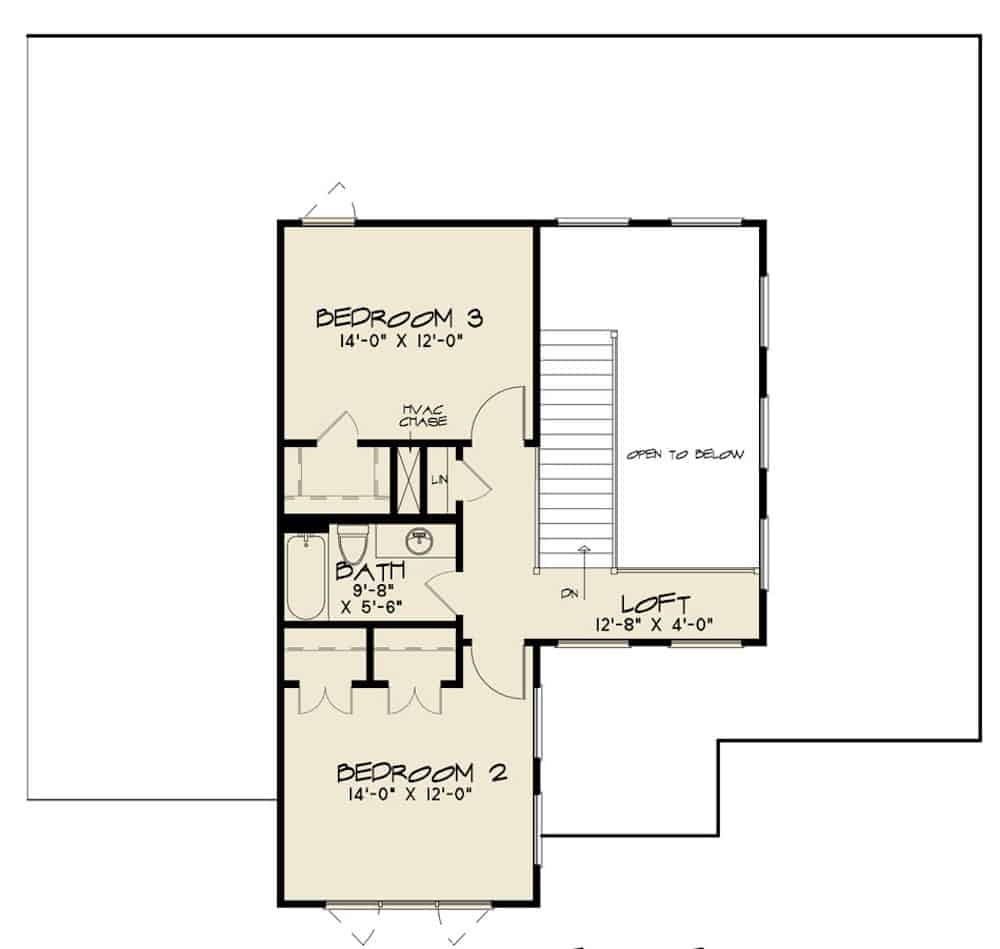

#193-1146 Floor Plan Second Story - upper level Floor Plan Upper Level of Contemporary Plan #193-1146
Home Plan: #193-1146 Floor Plan First Story - main level Floor Plan Main Level of Contemporary Plan #193-1146
#193-1146 Floor Plan Second Story - upper level Floor Plan Upper Level of Contemporary Plan #193-1146
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 193-1146
Floors:
1.5
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
2092
Main Floor:
1472
Upper Floor:
620
Unfinished Sq Ft:
Garage :
635
Porch :
177

Dimensions

Width:
53' 4"
Depth:
48' 10"
Ridge Height:
22' 0"

Architectural Styles

Contemporary
Modern
Prairie
1 1/2 Story
Mid-Century Modern

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Hip

Roofing Material

Metal

Roof Pitch

3/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Dining Room
Mud Room
Family Room
Main Level Laundry
Loft
Split Bathroom
Storage
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x4

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

For this designer, if you choose optional features such as but not limited to: 2x6 exterior walls, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! This designer does not offer Framing. Please feel free to contact us with any questions!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
