4-Bedroom, 2274 Sq Ft Craftsman Plan with Split Master Bedroom
Related House Plans
| 2274 SQUARE FEET | 4 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 68' 4" WIDTH | 57' 7" DEPTH | 3 GARAGE BAY |
This lovely Craftsman style home with Arts and Crafts influences (House Plan #169-1104) has 2274 square feet of living space. The 2 story floor plan includes 4 bedrooms.
Each plan set includes the following:
- General notes and specifications
- Front, rear and side elevations (1/4" scale)
- Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
- Reinforced foundation and footing details
- First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
- Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
- Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

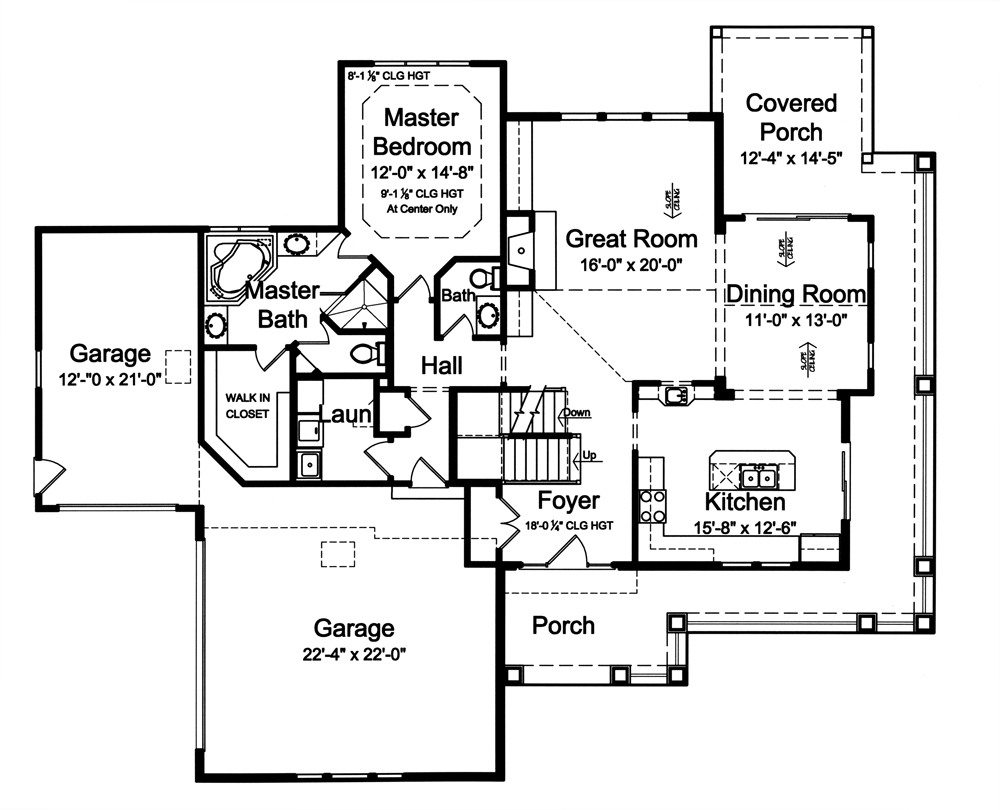

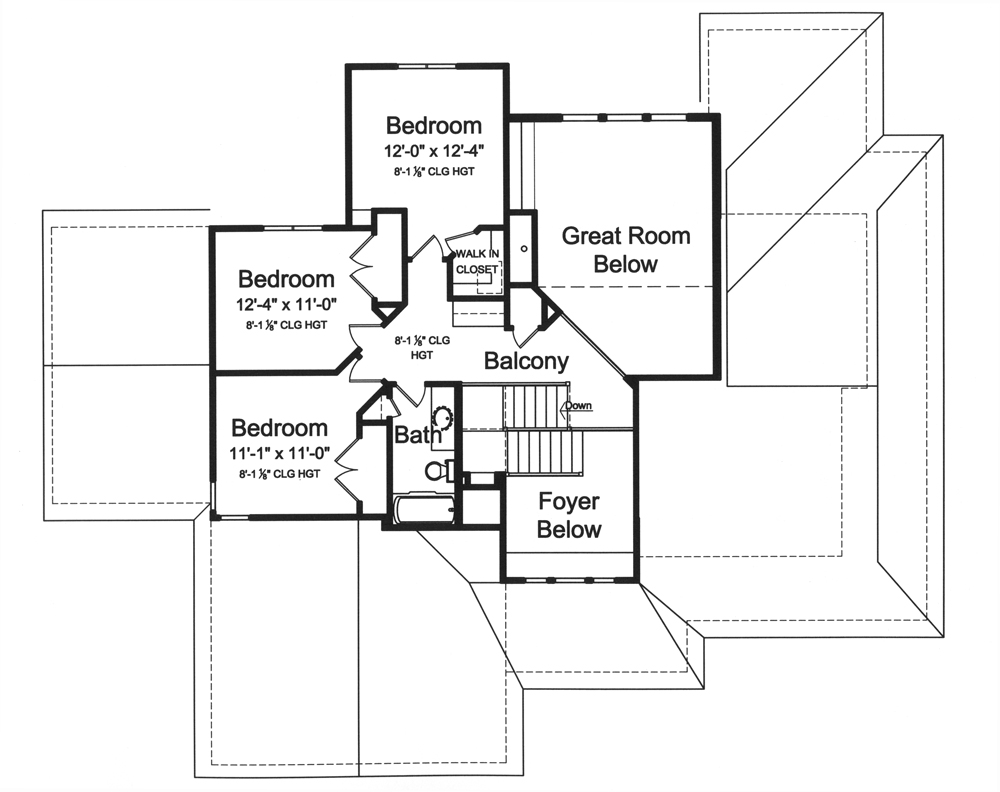

FLOOR PLANS Flip Images
