3-Bedroom, 1716 Sq Ft Ranch Plan with Mudroom
Related House Plans
| 1716 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 59' 4" WIDTH | 69' 4" DEPTH | 2 GARAGE BAY |
This 3-bedroom, 1,716 sq ft ranch plan features an open layout with a spacious living room, dining area, and a kitchen boasting a large island and walk-in pantry. The main level includes a primary suite with a walk-in closet and a private bath. A mudroom adds convenience.
Each plan set includes the following:
- General notes and specifications

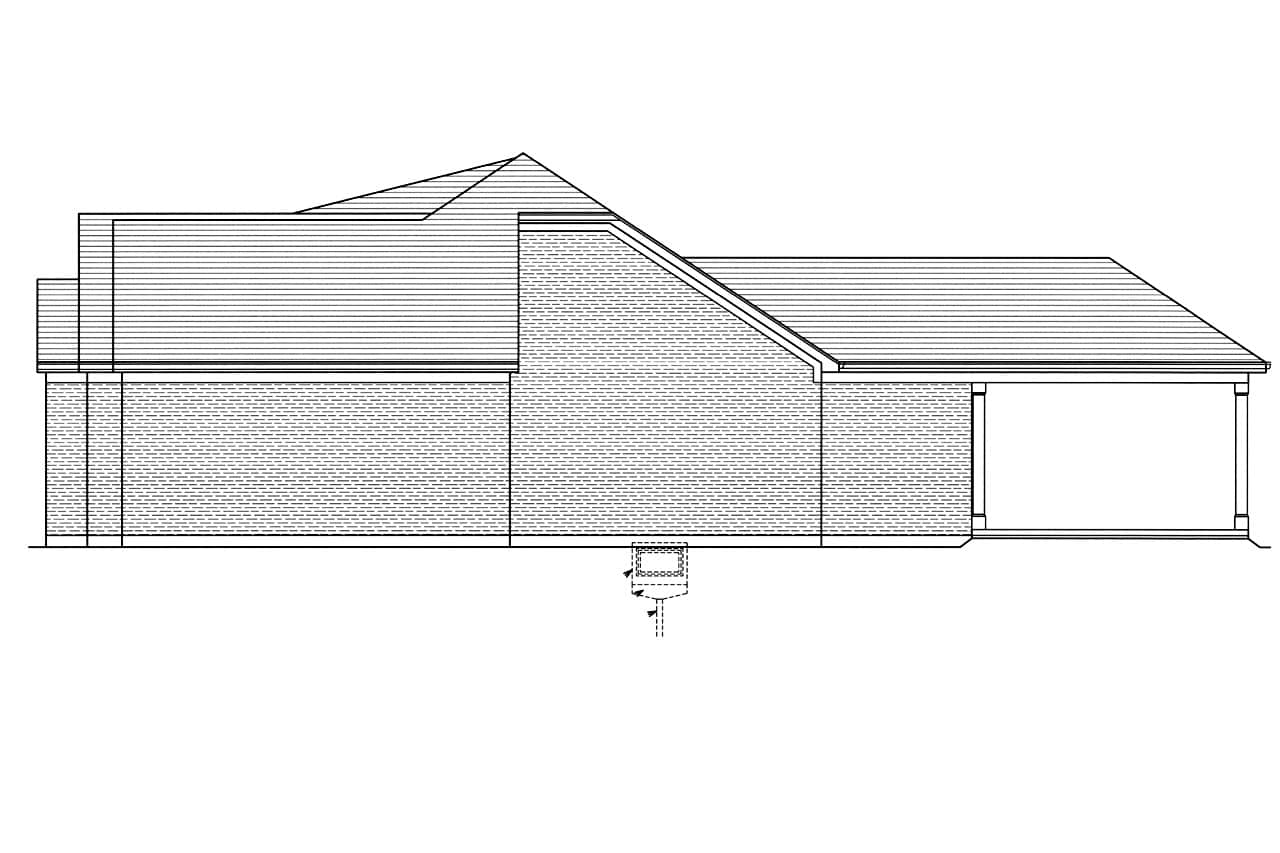

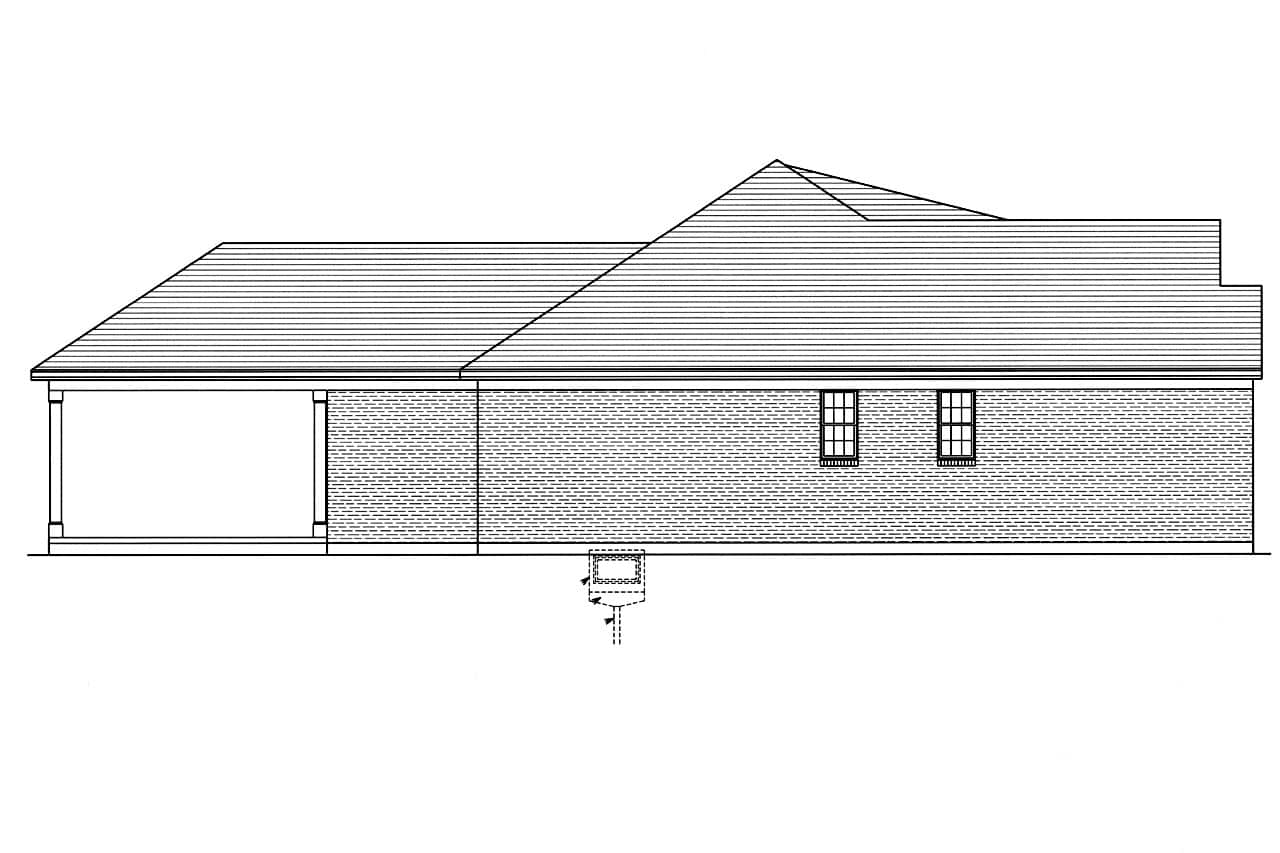

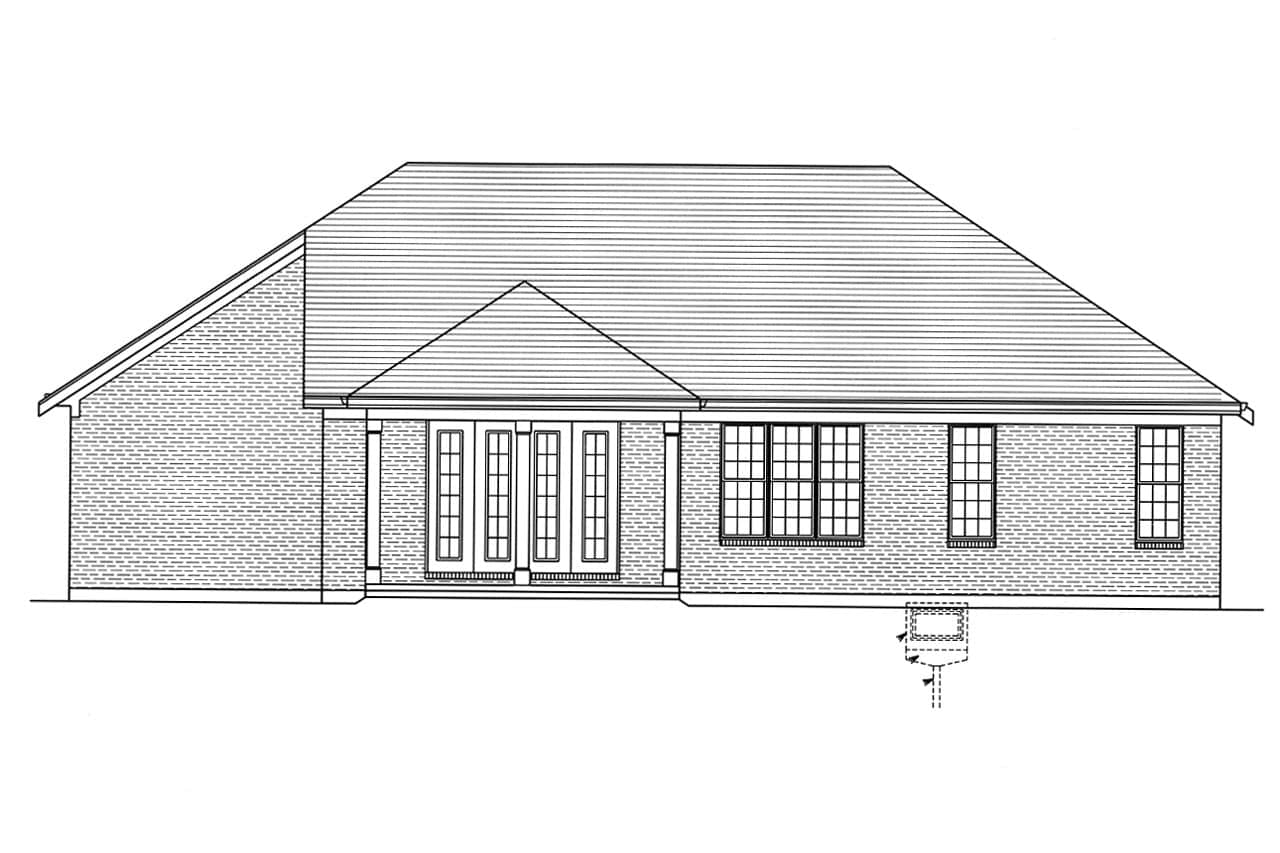

- Front, rear and side elevations (1/4" scale)

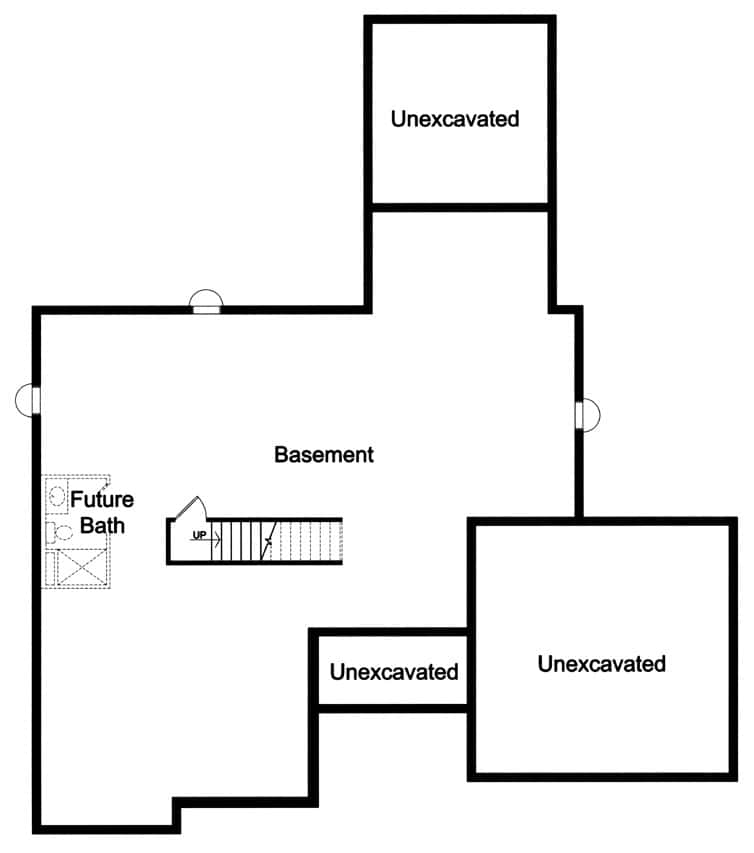

- Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
- Reinforced foundation and footing details

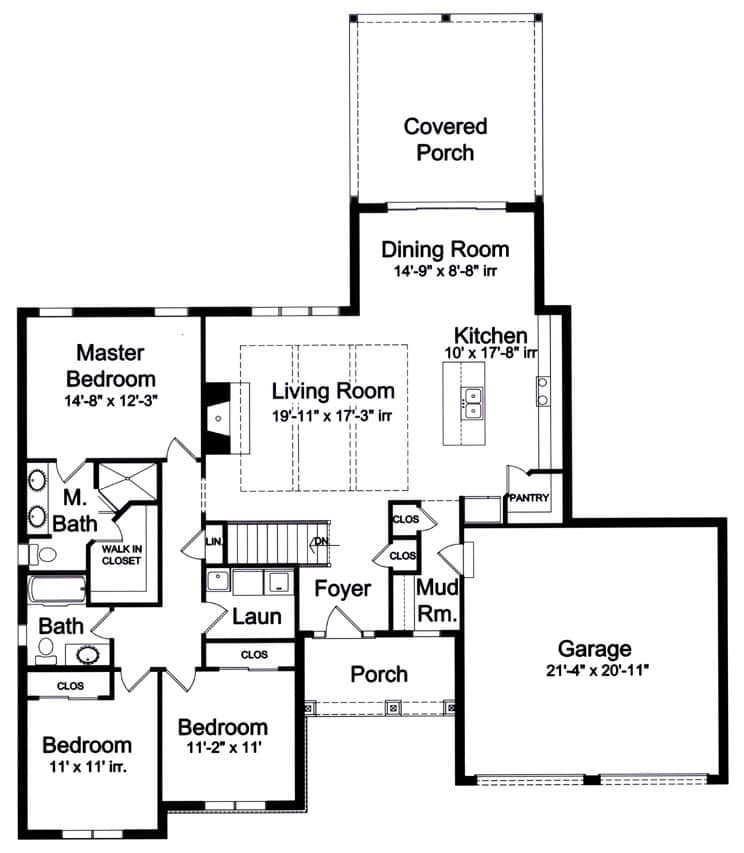

- First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
