2296 SQUARE FEET 6 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 38' 0" WIDTH 32' 4" DEPTH 0 GARAGE BAY

This stylish duplex with traditional influences has 1,148 square feet of living space, 3 bedrooms, and 1.5 baths per unit as well as these wonderful amenities:

  •  Open floor plan
  • Main level laundry
  • Large kitchen with peninsula/eating bar

The total heated square footage for the home plan is 2,296 square feet.

Each plan set includes the following:

  • Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer framing, plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

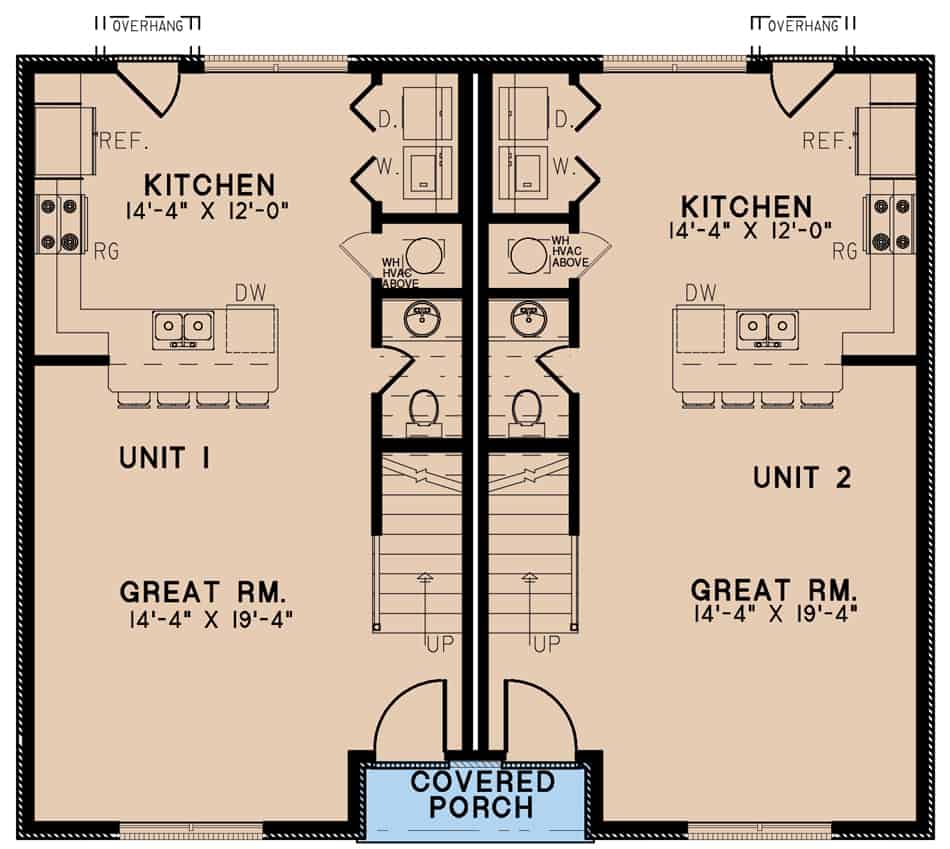

Home Plan: #193-1246 Floor Plan First Story - main level Main Level of Duplex/Multi-Unit Plan #193-1246

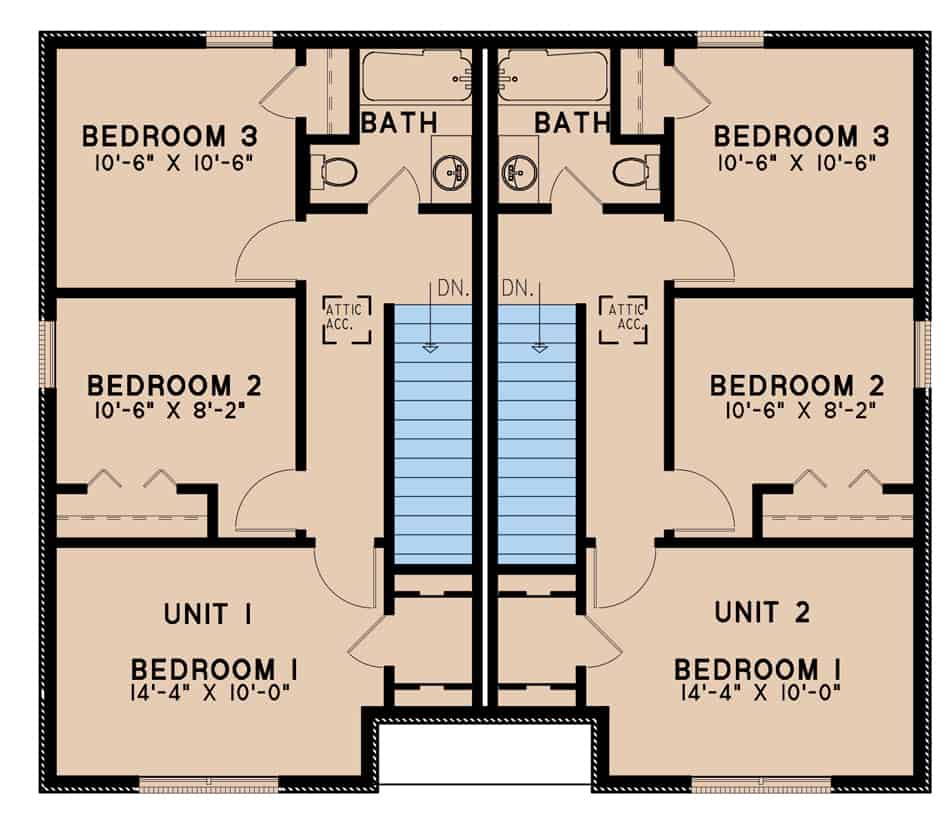

#193-1246 Floor Plan Second Story - upper level Upper Level of Duplex/Multi-Unit Plan #193-1246
Home Plan: #193-1246 Floor Plan First Story - main level Main Level of Duplex/Multi-Unit Plan #193-1246
#193-1246 Floor Plan Second Story - upper level Upper Level of Duplex/Multi-Unit Plan #193-1246
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 193-1246
Floors:
2
Bedrooms:
6
Full Baths:
3

Square Footage

Heated Sq Feet:
2296
Main Floor:
1188
Upper Floor:
1108
Unfinished Sq Ft:

Dimensions

Width:
38' 0"
Depth:
32' 4"
Ridge Height:
26' 8"

Architectural Styles

Duplex/Multi-Unit
Traditional
Transitional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

8 Foot Ceiling

Special Feature

Main Level Laundry
Open Floor Plan

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Second Floor Master

Additional Notes from Designer

Each unit has 3 bedrooms, 1.5 baths and 1,148 square feet of living space.


For this designer, if you choose optional features such as but not limited to: 2x6 exterior walls, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. if you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! This designer does not offer Framing. Please feel free to contact us with any questions!
