About Plan # 109-1030

About Plan # 109-1030

2493 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 70' 0" WIDTH 57' 10" DEPTH 3 GARAGE BAY

This charming 2,493 square foot home features a split 3-car garage with a workshop, a spacious front porch and a brick, stone and siding exterior with shake accents and Craftsman-inspired details. The entry unfolds to a columned dining room which is open to the kitchen, a home office and powder room. The large gourmet kitchen has an angled breakfast nook and a snack bar to provide additional seating and food prep space. Cabinets and shelves in the breakfast area offer a sizeable pantry. The center island holds a cook-top. A welcoming fireplace warms the cozy two-story family room. The elegant master suite, with a dramatic tray ceiling, is located on the main level. Closet space abounds with his and hers walk-in closets. The master bath features separate vanities, a linen closet, a luxurious spa tub and a private toilet room with an oversized shower. Upstairs are three generous bedrooms, all with walk-in closets. Suite #2 has a private bath with a corner shower. Bedrooms #3 and #4 share a bath. The biggest surprise of the upper level is the expansive dual bonus areas with an optional bathroom. The possibilities are limitless as to the use of this delightfully unexpected space! Outdoor living is enjoyed to the fullest with front and back porches and a roomy deck. We have featured a small pool in our rendering to spark the creative possibilities for your recreational space.

Each plan set includes the following:

  • Rendering cover page
  • Elevations
  • Floor plans
  • Foundation plan
  • Cabinet/interior elevations
  • Roof plan
  • Section
  • Construction details
  • IRC code specifications

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

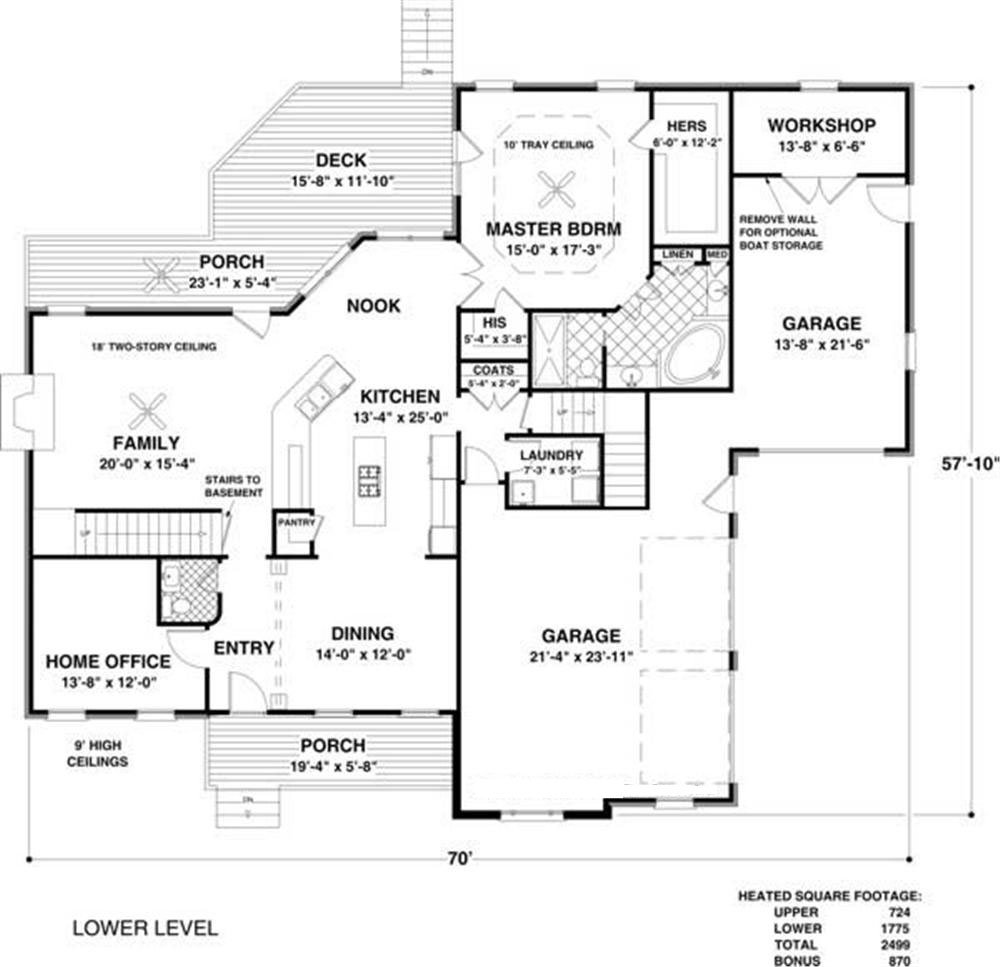

Home Plan: #109-1030 Floor Plan First Story - first story Floor Plan First Story of Traditional Plan #109-1030

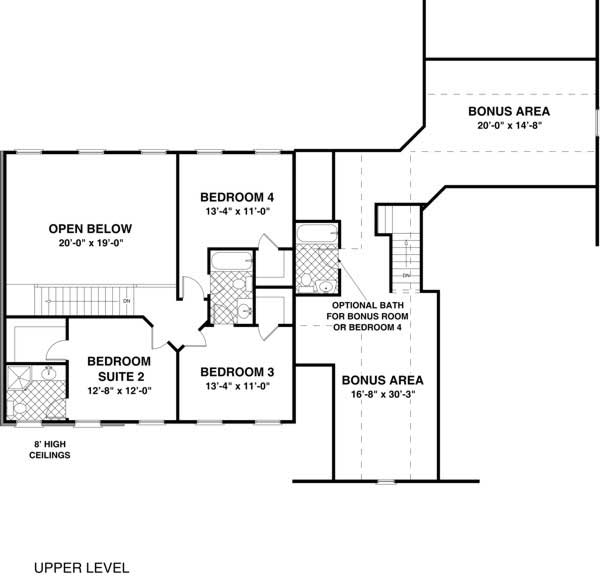

#109-1030 Floor Plan Second Story - second story Floor Plan Second Story of Traditional Plan #109-1030
Home Plan: #109-1030 Floor Plan First Story - first story Floor Plan First Story of Traditional Plan #109-1030
#109-1030 Floor Plan Second Story - second story Floor Plan Second Story of Traditional Plan #109-1030
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 109-1030
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2493
Main Floor:
1769
Upper Floor:
724
Unfinished Sq Ft:

Dimensions

Width:
70' 0"
Depth:
57' 10"
Ridge Height:
29' 0"

Architectural Styles

Country
Traditional
Craftsman

Exterior Wall Material

Brick
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Fireplace
Dining Room
Mud Room
Bonus Room
Family Room
Main Level Laundry
Split Bathroom
Workshop

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Optional Foundations are considered modifications so please send us a modification request if you would like a free quote. Thank you! PLEASE NOTE! Any options that are ordered such as RRR or 2x6 conversion will each take 4-7 business days to complete BEFORE the plans are sent. Materials Lists can take up to 14 business days to complete BEFORE plans are sent.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
