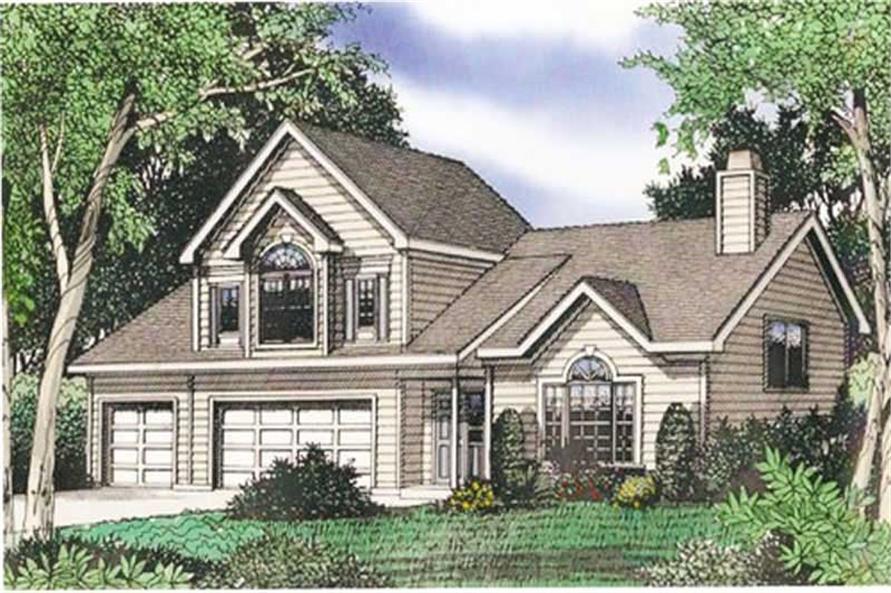

4-Bedroom, 2649 Sq Ft Multi-Level Plan with Kitchen Island
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #147-1062
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

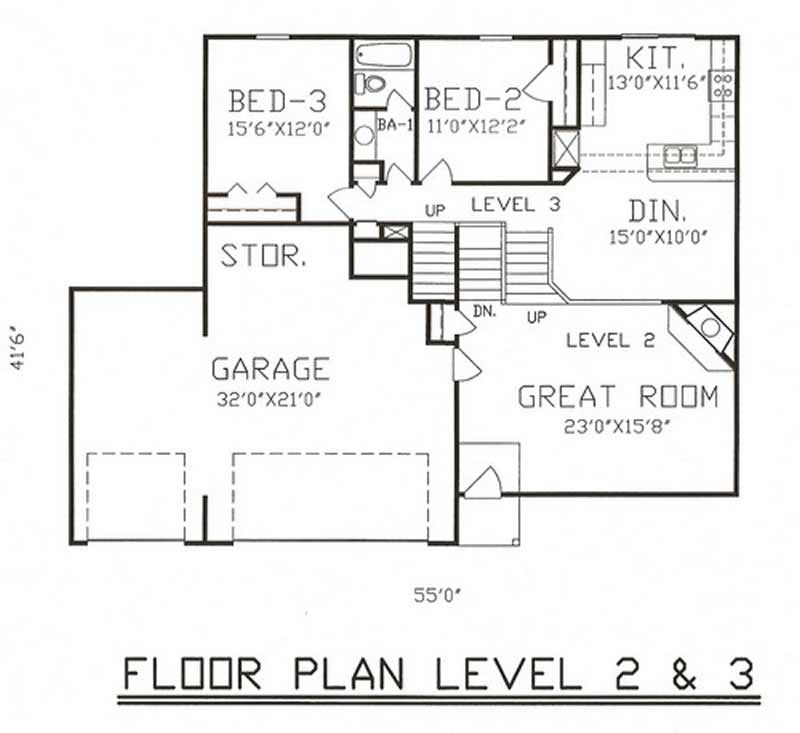

Floor Plans
Share Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
PLEASE NOTE!! Mirror Reverse ONLY available if purchasing a PDF. Right Reading Reverse ONLY available if purchasing a CAD!
TOTAL SF. 2649, MAIN LEVEL SF. 783, UPPER LEVEL SF. 1233,BASEMENT 633
WIDTH 55\'-0\", DEPTH 41\'-1\",
BEDROOMS 4, BATHS 2, GARAGE 3 CAR, STORIES 2,
EXTERIOR WALL 2X4,
EXTERIOR SURFACE SIDING,
CEILING HEIGHTS MAIN 8\'-0\"
FOUNDATION BASEMENT,

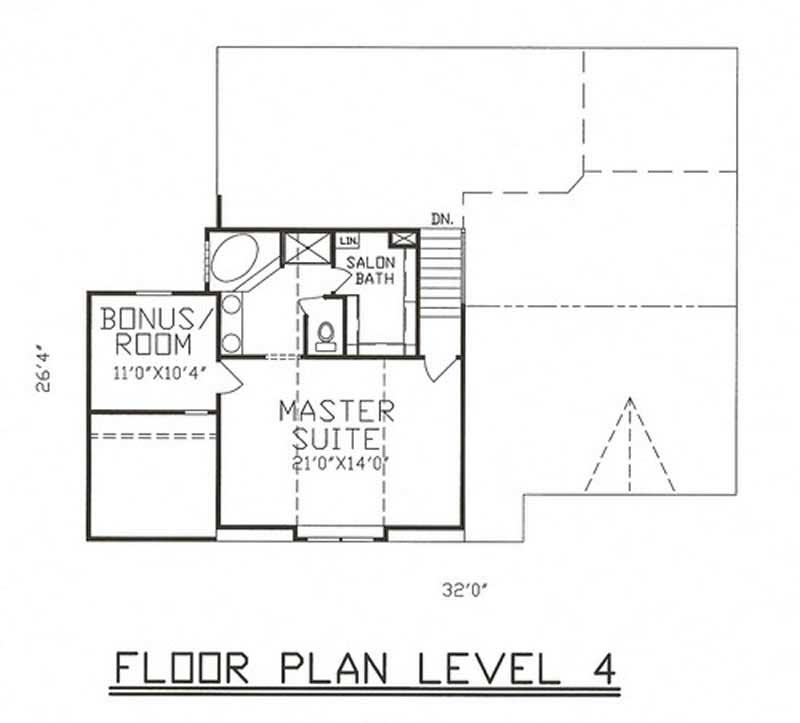

SPECIAL FEATURES: MASTER SECLUDED ON 4TH LEVEL
House Plan Description
This square foot 2649, muti-level or split-level home includes four bedrooms, two bathrooms, a basement and a three car garage.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Foundation Plan Floor plans Roof plan Exterior Elevations Cross Sections & typical details Interior elevations as needed Door & Window schedule Electrical layout What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
