Country Ranch Duplex with Covered Front Porch
Related House Plans
| 2762 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 100' 0" WIDTH | 48' 0" DEPTH | 0 GARAGE BAY |
This delightful country ranch duplex (Multi-Family Plan #100-1024) has 1381 living sq ft per unit. The 1-story floor plan includes 3 bedrooms per unit. Total living area is 2762. Each apartment is 1381 square feet.
Each plan set includes the following:
- Cover Sheet: Shows the front elevation and typical notes and requirements.

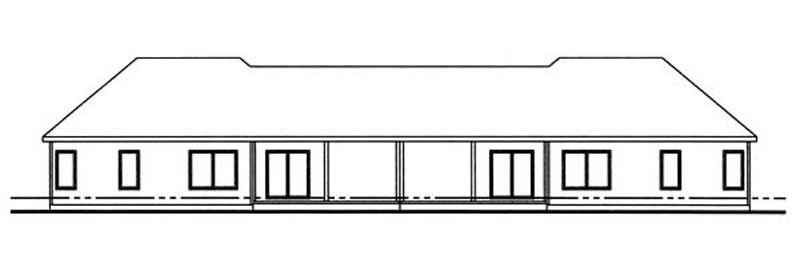

- Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

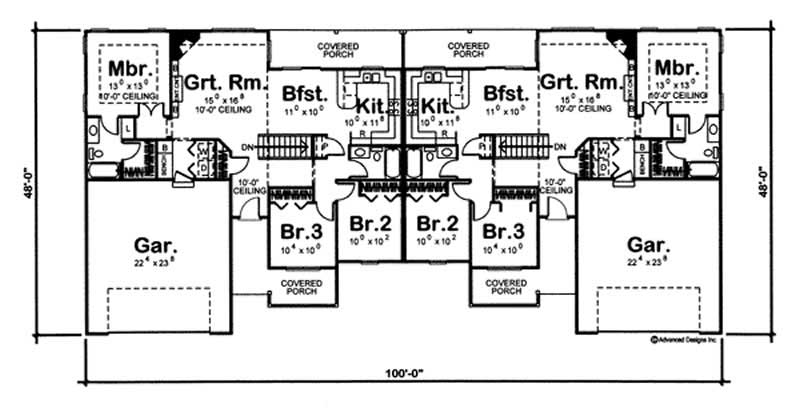

- Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
- Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
- Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
- Roof Plan
- Typical wall section
- Typical stair section
- Cabinets are shown on all plans.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
