| 2860 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 84' 0" WIDTH | 56' 8" DEPTH | 2 GARAGE BAY |
A family can easily spread out in one of these duplex units. There is an efficient U-shape kitchen, which includes a double sink and ample cabinet and closet space. The dining room, with arched entries on three sides, is graced with a large front window. In close proximity to the kitchen and the dining room, the sloped ceiling living room is excellent for entertaining. The bedrooms are located for privacy in the rear of the home.
Each plan set includes the following:
- Exterior elevations
- Foundation plans
- Interior elevations
- Electrical layout
- Detailed house floor plans
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

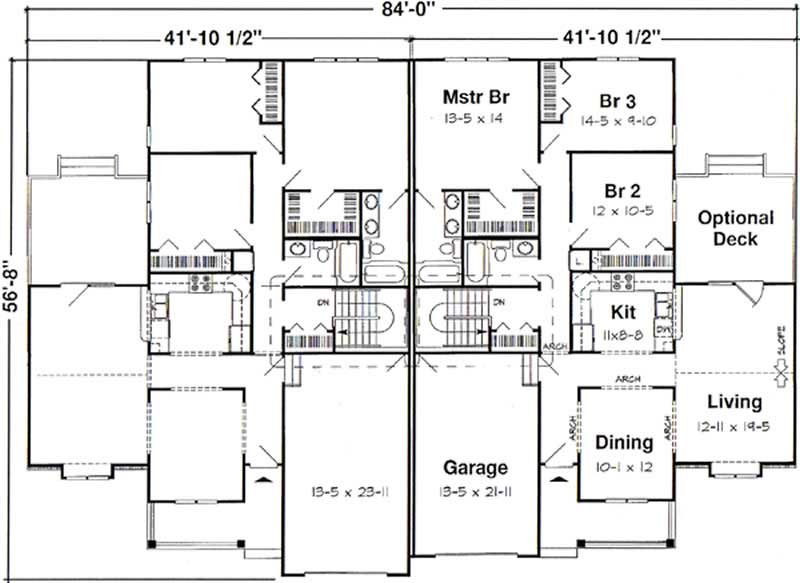

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Roofing Type
Special Feature
Exterior Wall Framing
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

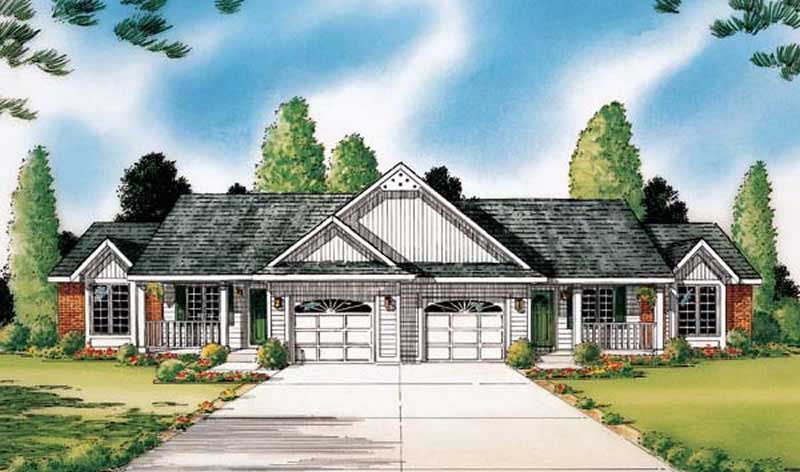

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
