4-Bedroom, 2880 Sq Ft Vacation Homes Plan with Peninsula/Eating Bar
Related House Plans
| 2880 SQUARE FEET | 4 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 84' 0" WIDTH | 53' 3" DEPTH | 3 GARAGE BAY |
This lovely Vacation Home style home plan with Country influences (House Plan #163-1011) has 2880 square feet of living space. The 1 story floor plan includes 4 bedrooms.

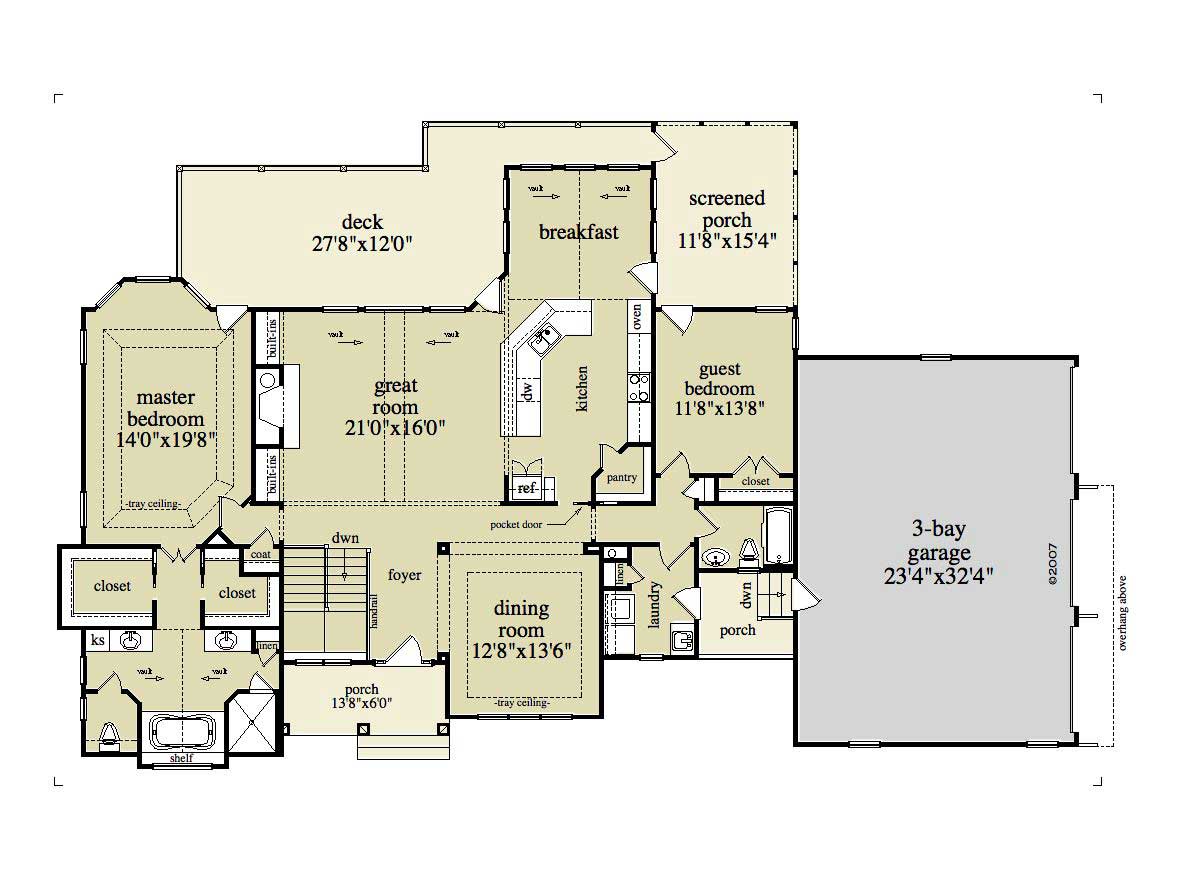

The rustic style ranch house plan is a perfect mountain or vacation home. It has an attached garage and plenty of decks and porches to enjoy the outdoors. From the front door, the foyer opens to the dining room and large vaulted great room with a fireplace and built-ins. This ranch has a split bedroom layout with the private master suite on the opposite side of the house as the kitchen. The breakfast, kitchen and great room are all open, light and bright. The optional terrace level below offers the ability to add a rec room, 2 additional bedrooms each with their own baths and plenty of storage.
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

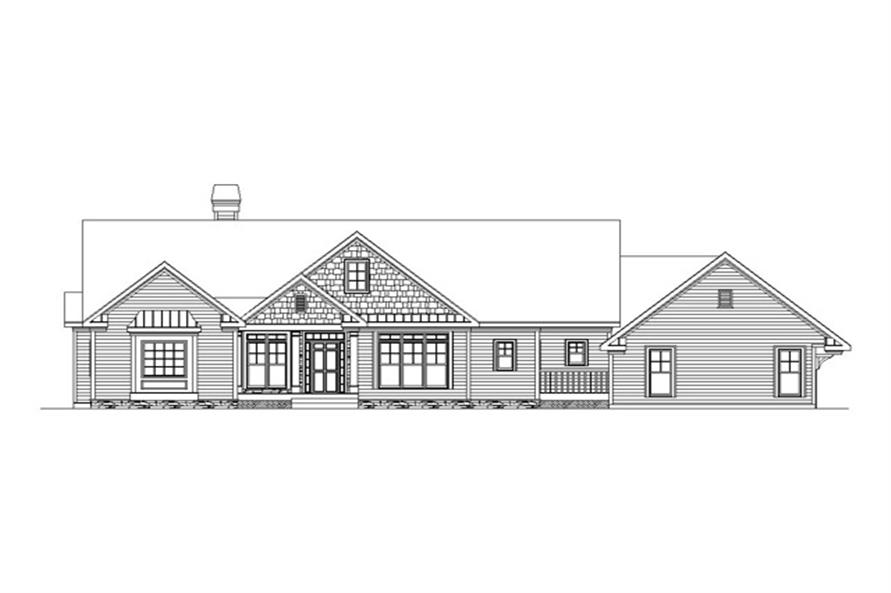

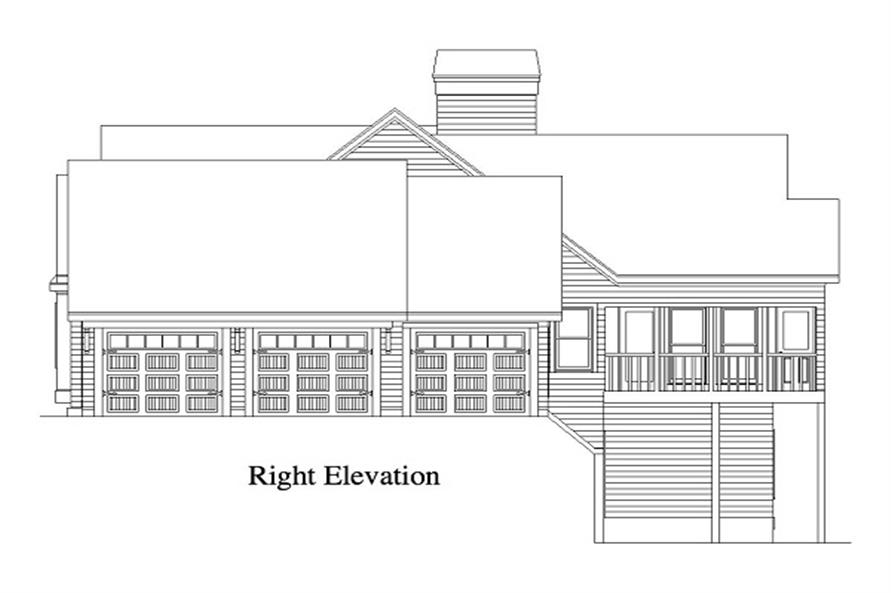

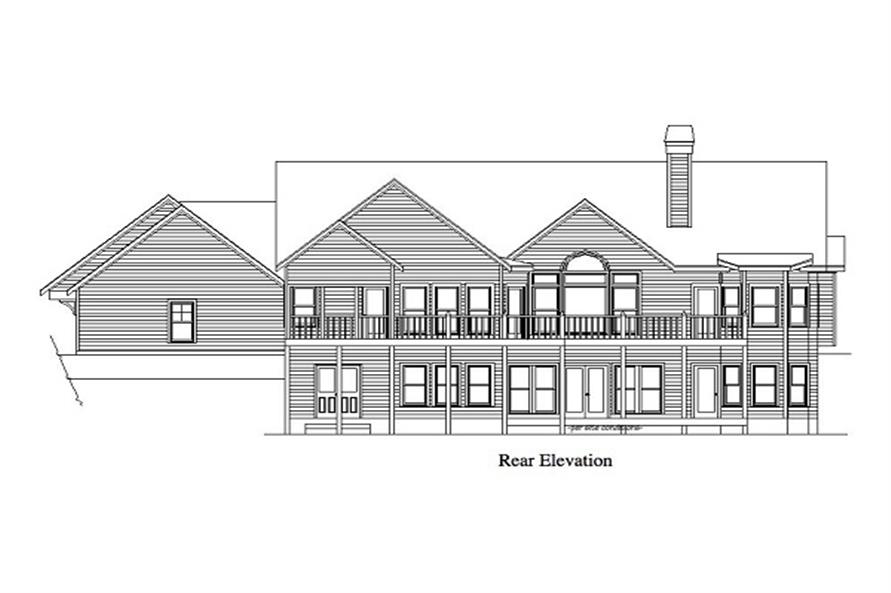

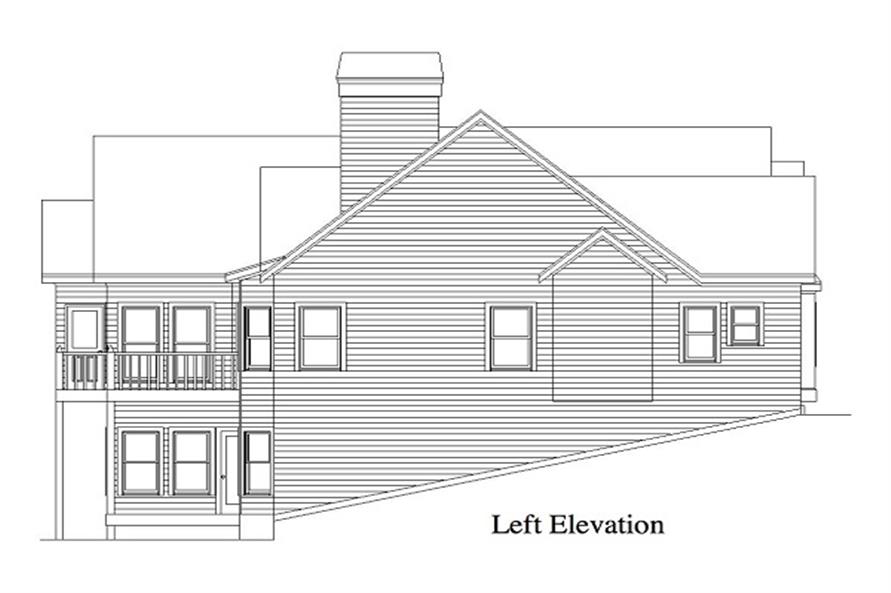

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
