3-Bedroom, 2979 Sq Ft Southwest Plan with Wraparound Rear Patio
Related House Plans
| 2979 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1.5 FLOOR | 77' 1" WIDTH | 80' 8" DEPTH | 2 GARAGE BAY |

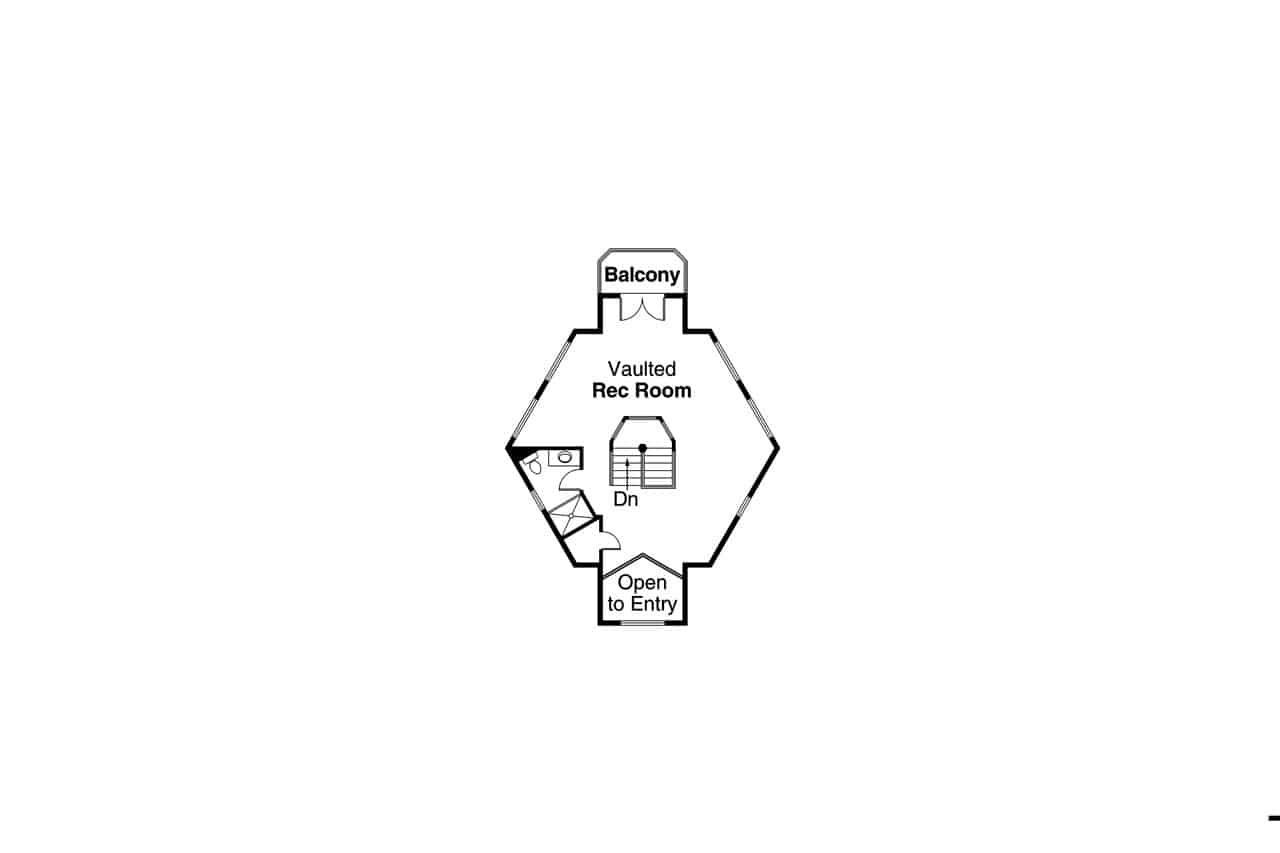

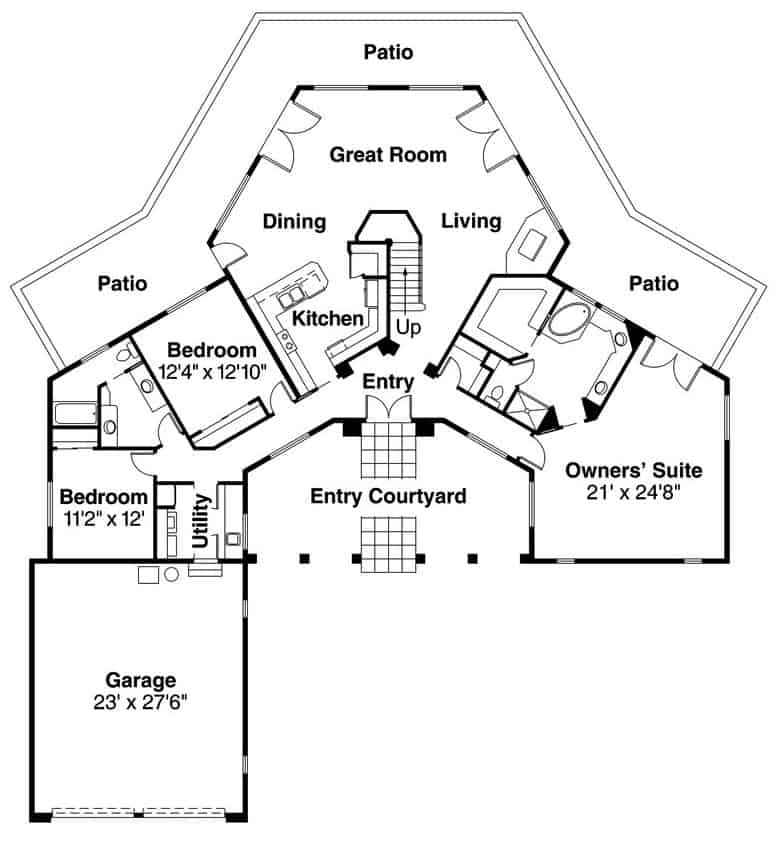

This is a 1-1/2 story, Spanish style house plan with 2979 total living square feet. Seen from above, this home looks like half of a hexagon. Its unusual shape turns out to be an asset, though, as the backyard patio wraps around the rear outside of the open-plan home, with access from the Great Room, dining area, and master suite. There is a vaulted recreation room upstairs with access to a balcony in the rear.
A courtyard entry, 3 bedrooms, and 3 bathrooms complete the picture for this attractive home.
Each plan set includes the following:
-
Artist’s rendering of the home,
-

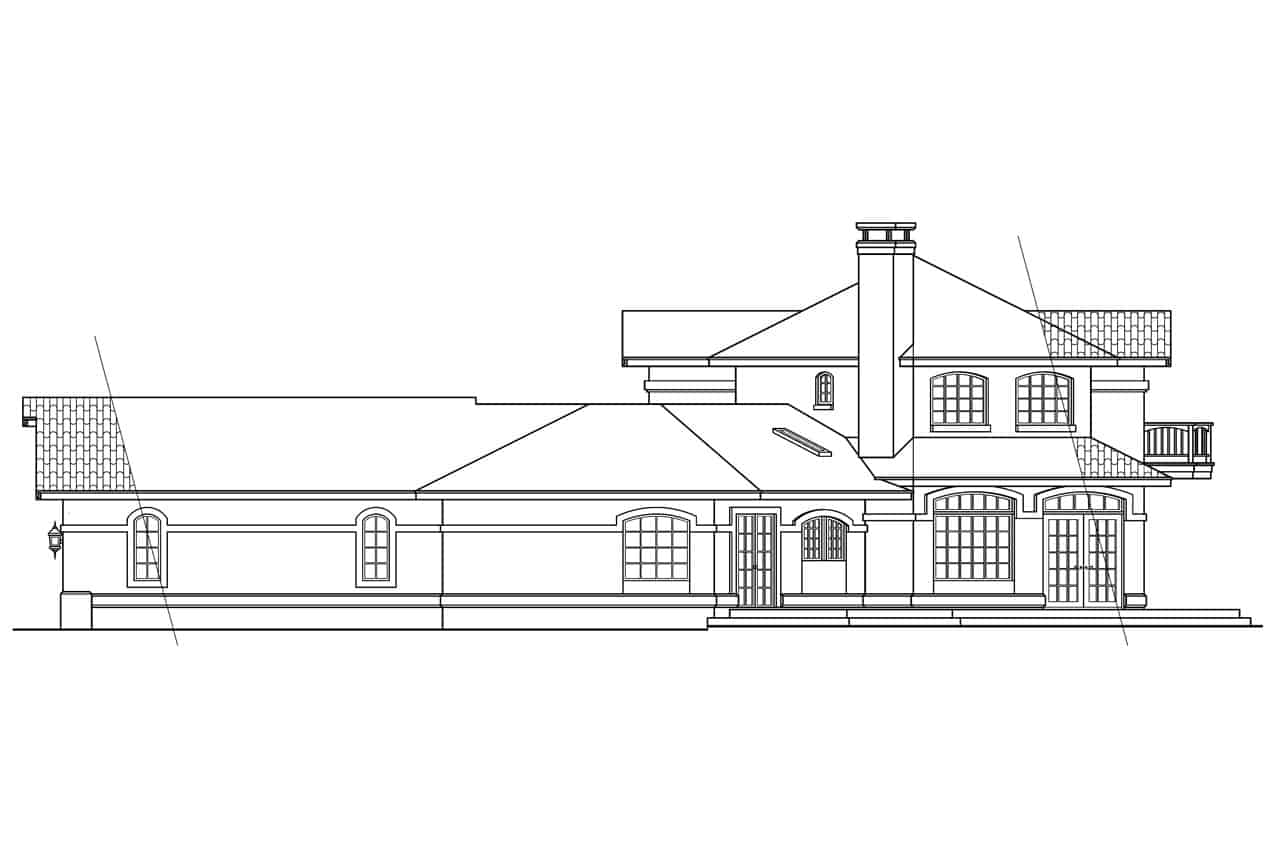

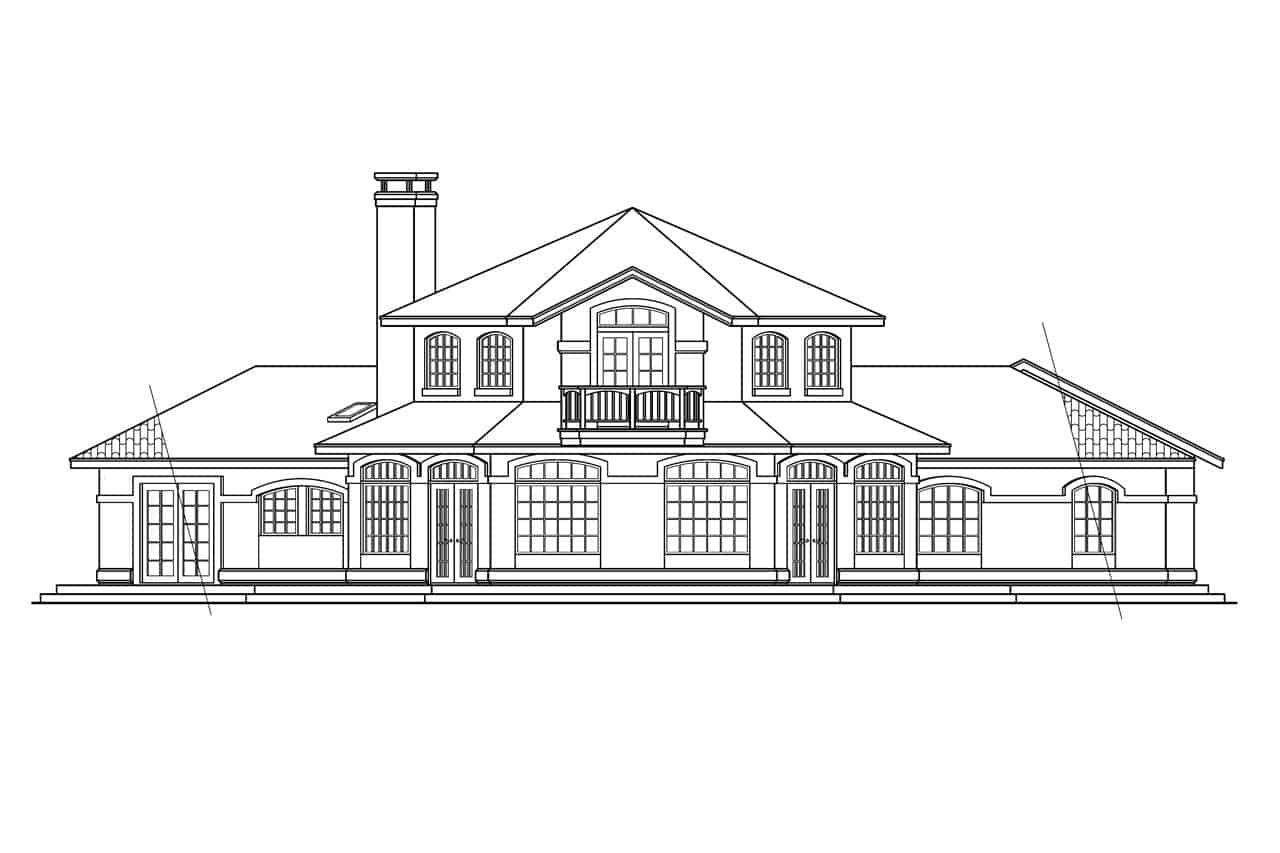

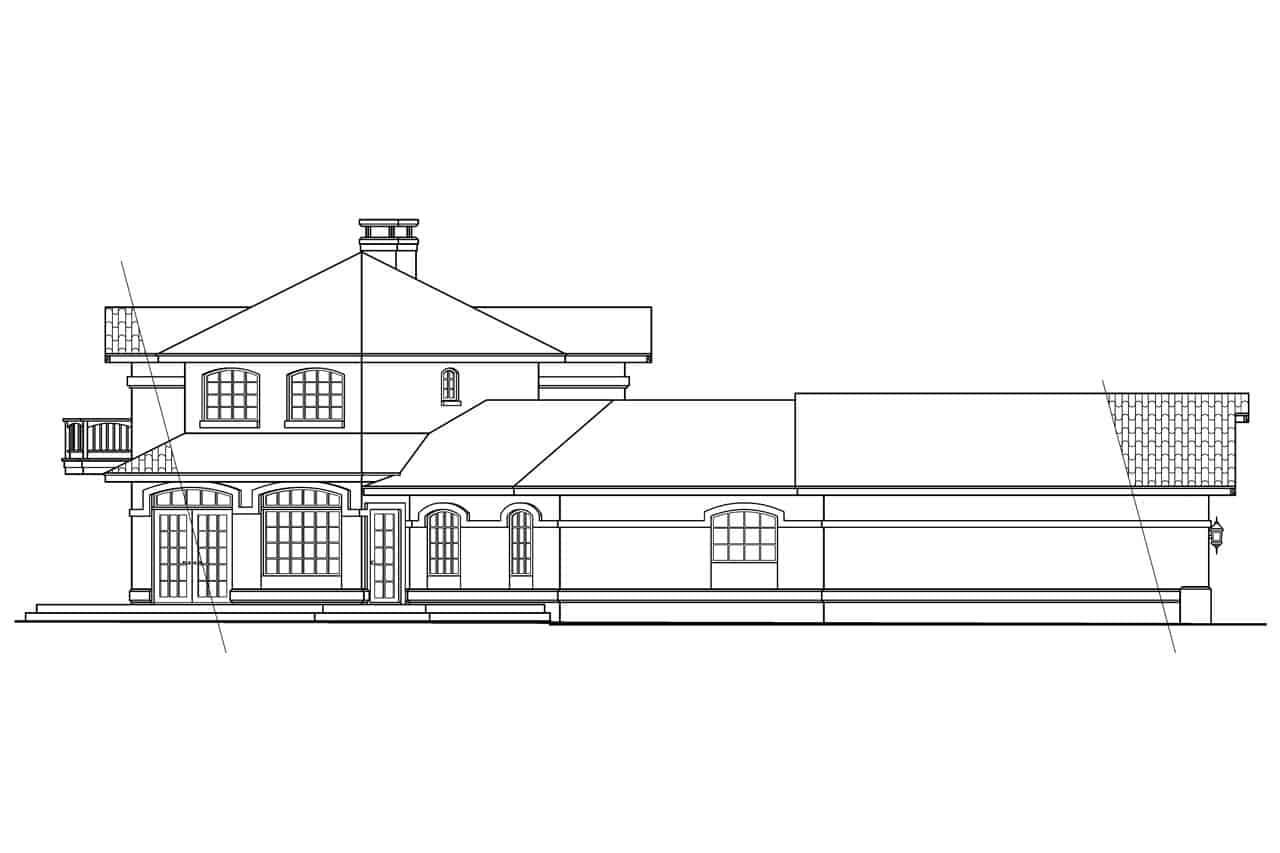

Front/Rear/Left and Right Elevations,
-
Main floor plan, Second or Basement floor plans (if applicable),
-
Foundation plan and detail,
-
Floor framing plan,
-
Roof framing plan, supporting details and
-
Electric layout.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
