Contemporary Duplex Plan with Matching 3-Bedroom, 2-Bathroom Units
Related House Plans
| 3082 SQUARE FEET | 6 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 72' 0" WIDTH | 50' 0" DEPTH | 4 GARAGE BAY |
Get ready to be captivated and experience the beauty at every corner of this marvelous contemporary-style duplex. It has a total heated area of 3082 square feet (1541 living sq ft per unit) and is designed to accommodate two families to enjoy this wonderful home with great amenities such as:
- 3 bedrooms per unit
- 2 baths per unit
- 2 garage spaces per unit
- Open concept layout
- Balcony
- Walk-in kitchen pantry
- Mudroom
- Lots of storage space
Each plan set includes the following:
-
Artist’s rendering of the home,
-

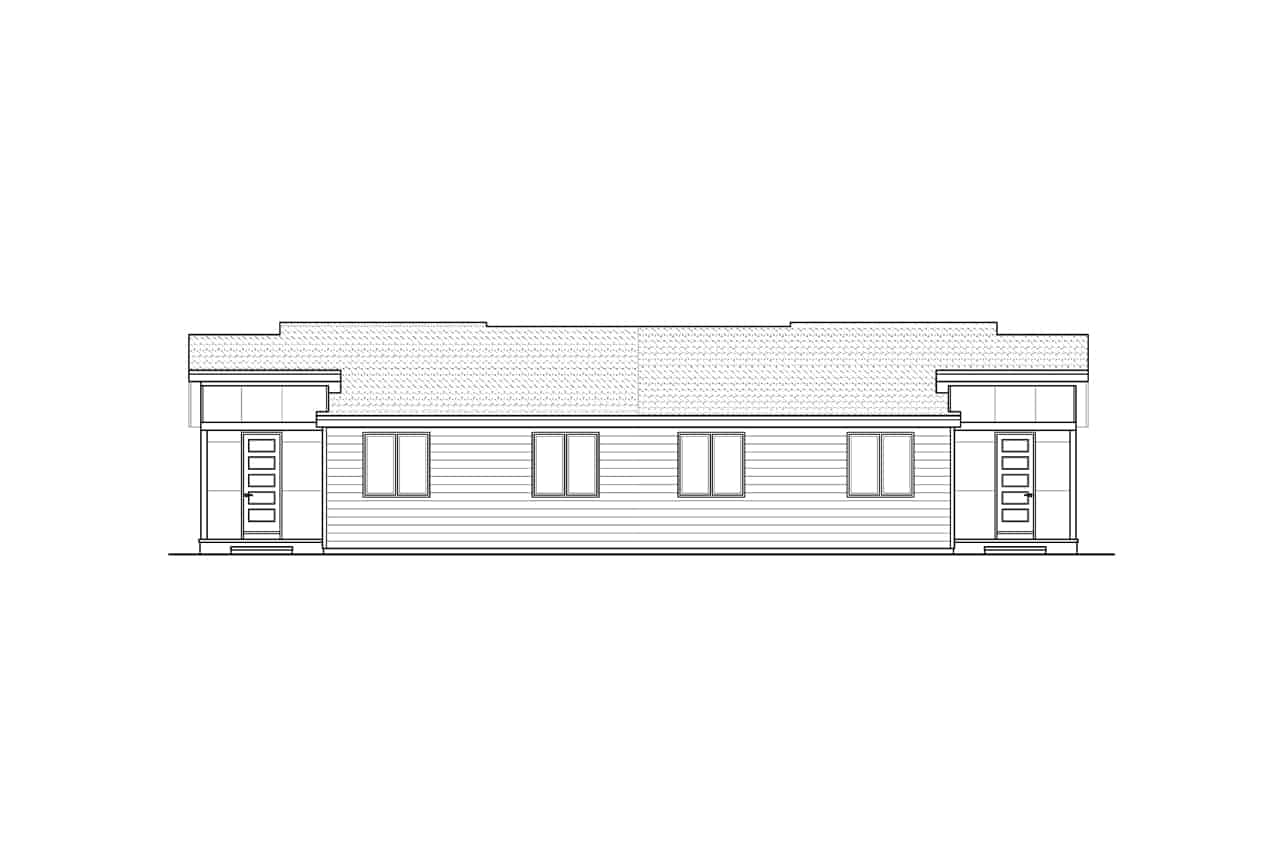

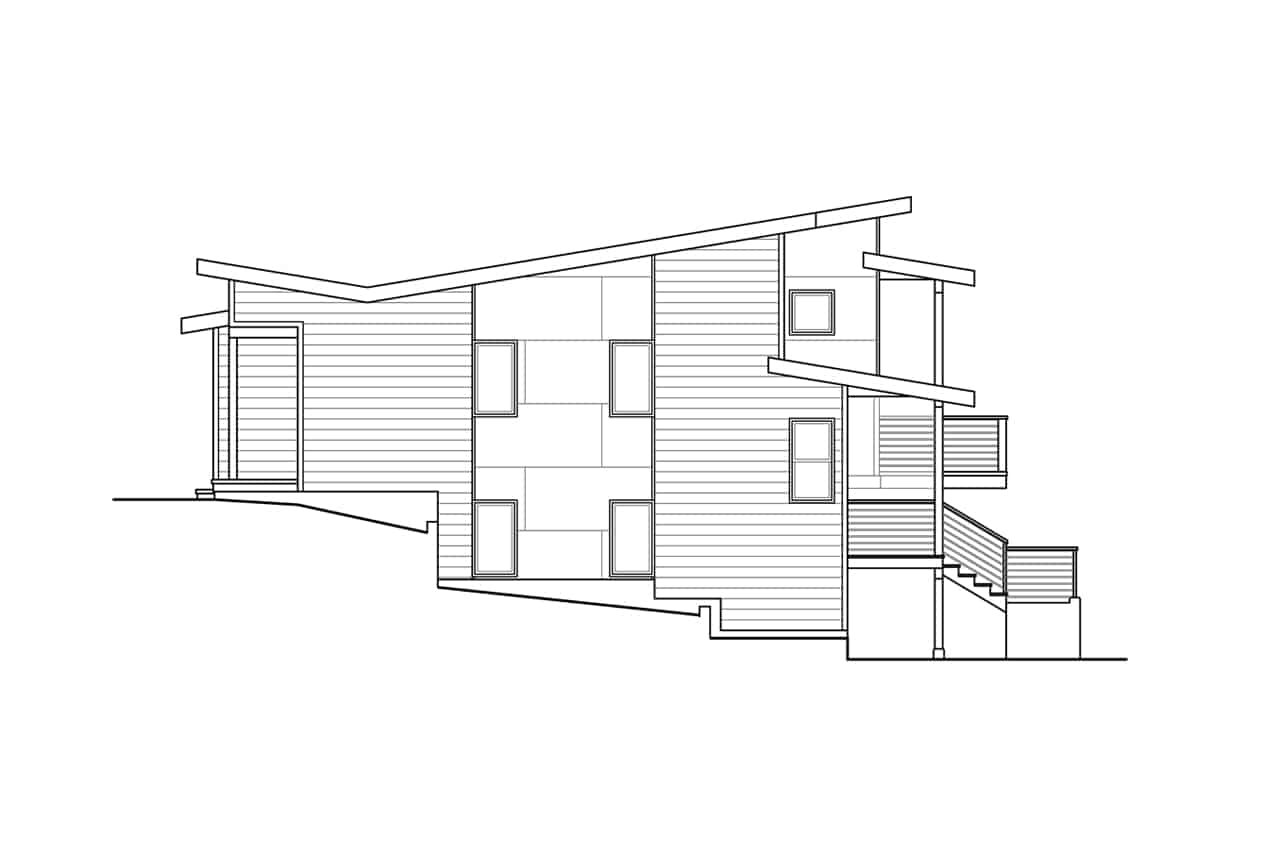

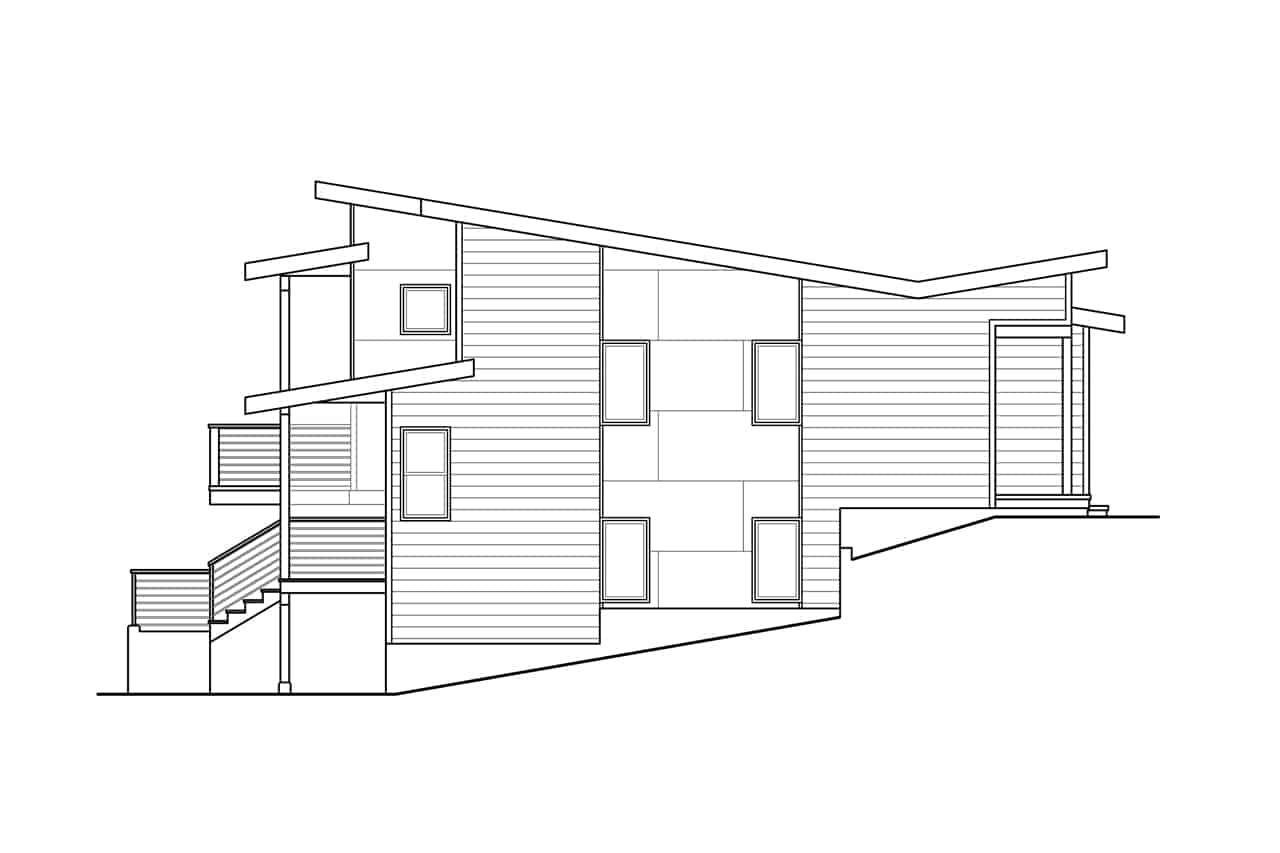

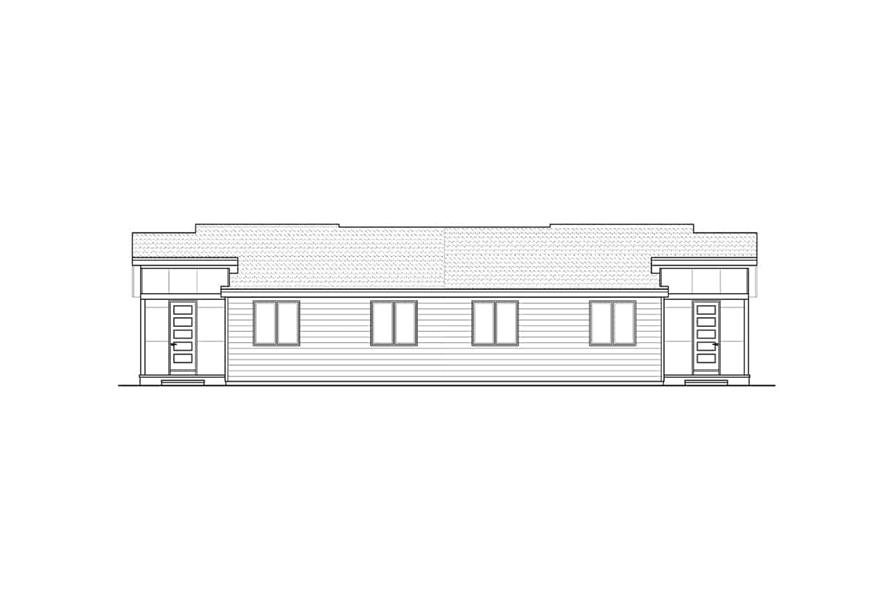

Front/Rear/Left and Right Elevations,
-
Main floor plan, Second or Basement floor plans (if applicable),
-
Foundation plan and detail,
-
Floor framing plan,
-
Roof framing plan, supporting details and
-
Electric layout.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

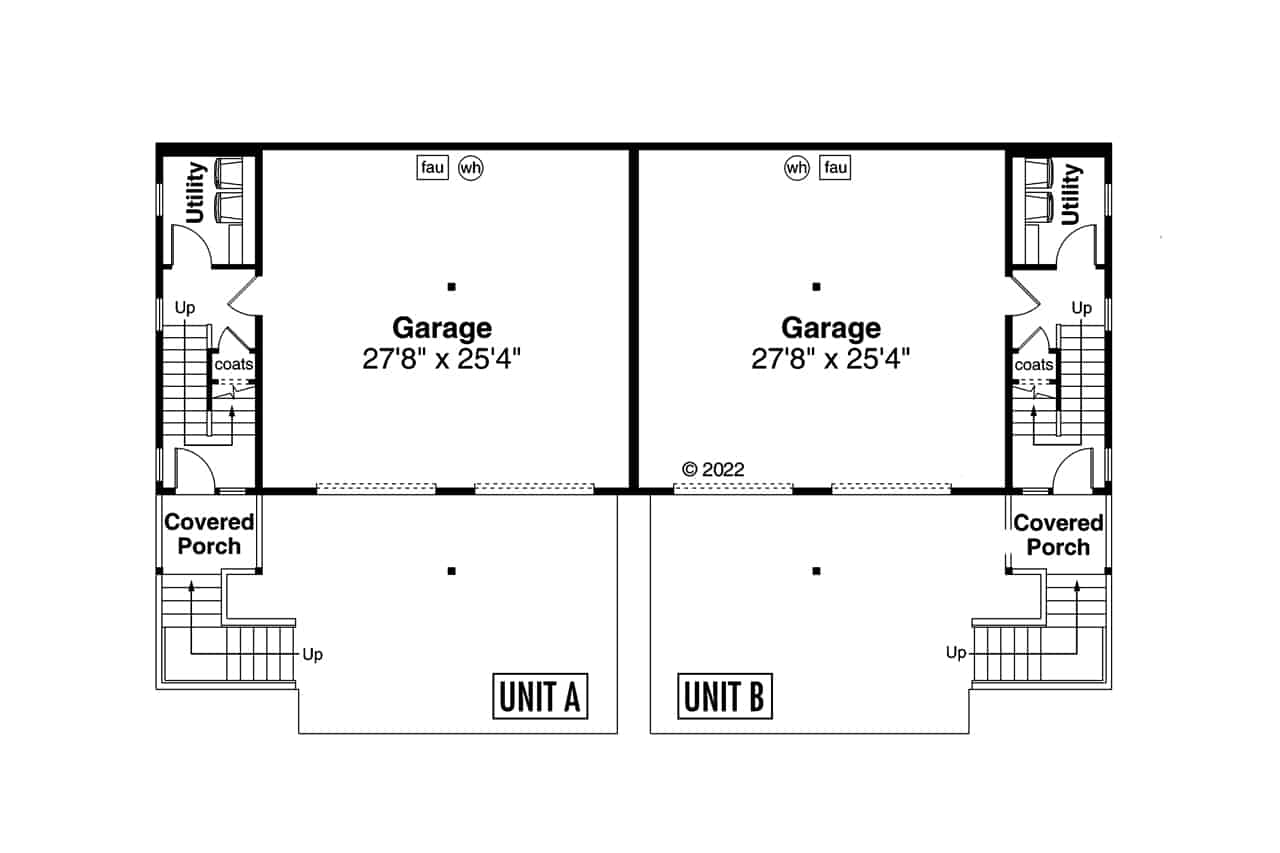

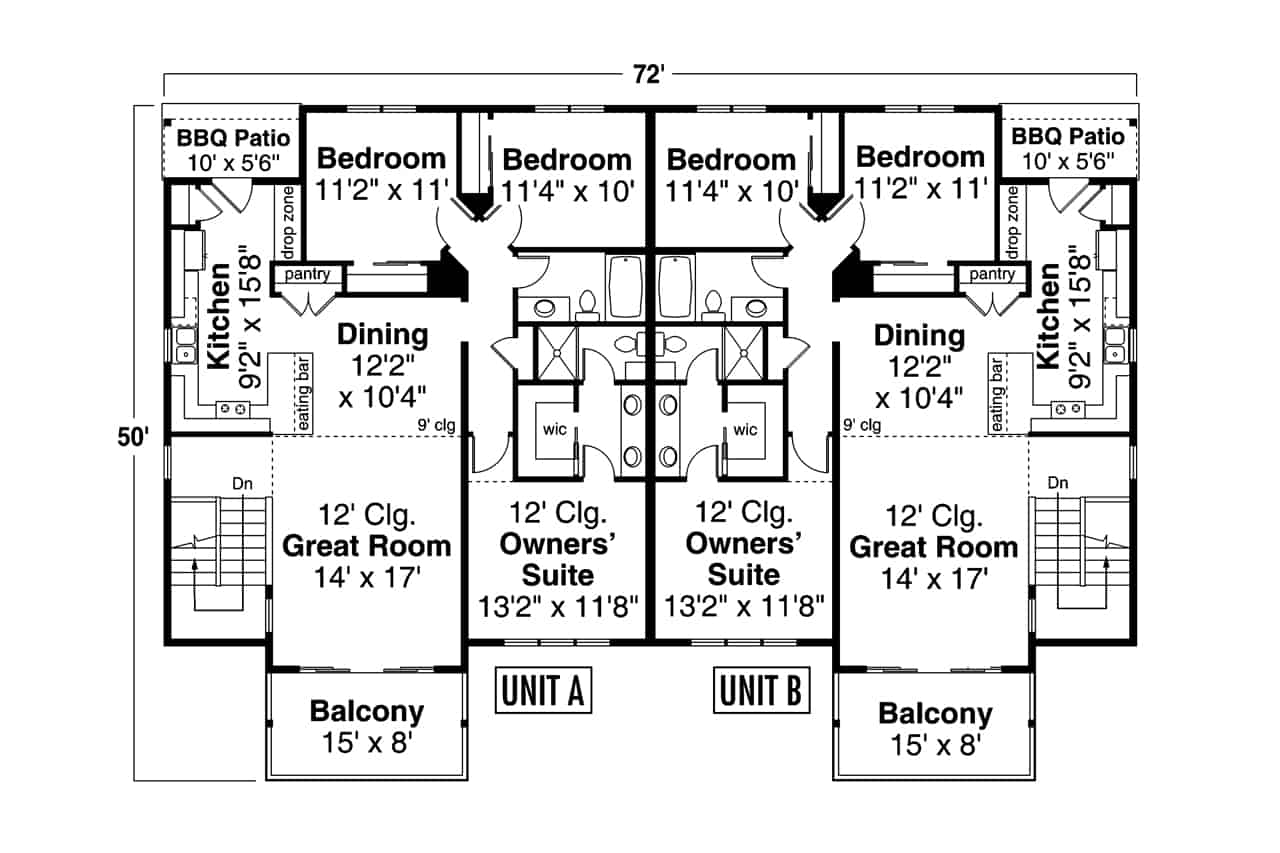

FLOOR PLANS Flip Images
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Square Footage
Dimensions
Architectural Styles
Exterior Wall Material
Roofing Type
Roofing Material
Roof Pitch
Ceiling Height
Special Feature
Garage Type
Exterior Wall Framing
Building Lot Type
Kitchen Features
Porches and Exterior Features
Master Suite Features
Additional Notes from Designer
This duplex plan has two identical units. Each unit has 1541 square feet, 3 bedrooms, 2 bathrooms, and 2 garage spaces.
PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.
PRICING OPTIONS
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
How much will this plan cost to build?
