4-Bedroom, 3276 Sq Ft Mediterranean Plan with Eat-In Kitchen
Related House Plans
| 3276 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 64' 8" WIDTH | 113' 0" DEPTH | 3 GARAGE BAY |
The Monterrey II home plan carries on the unique characteristics of its predecessor, our popular Monterrey home plan. This house design emulates the same celebrated qualities spacious great room with coffered, vaulted ceiling, large master suite with walk-in closets, soaking tub and shower, island kitchen with eating bar and dinette. The addition of a versatile recreation room to this floor plan, which accesses the lanai, provides more space for family activities. The tradition lives on in this Mediterranean home plan the Monterrey II.
The Lanai is 663 sq ft
Entry for Foryer is 102 sq ft
Total Under the Roof 4975
Each plan set includes the following:

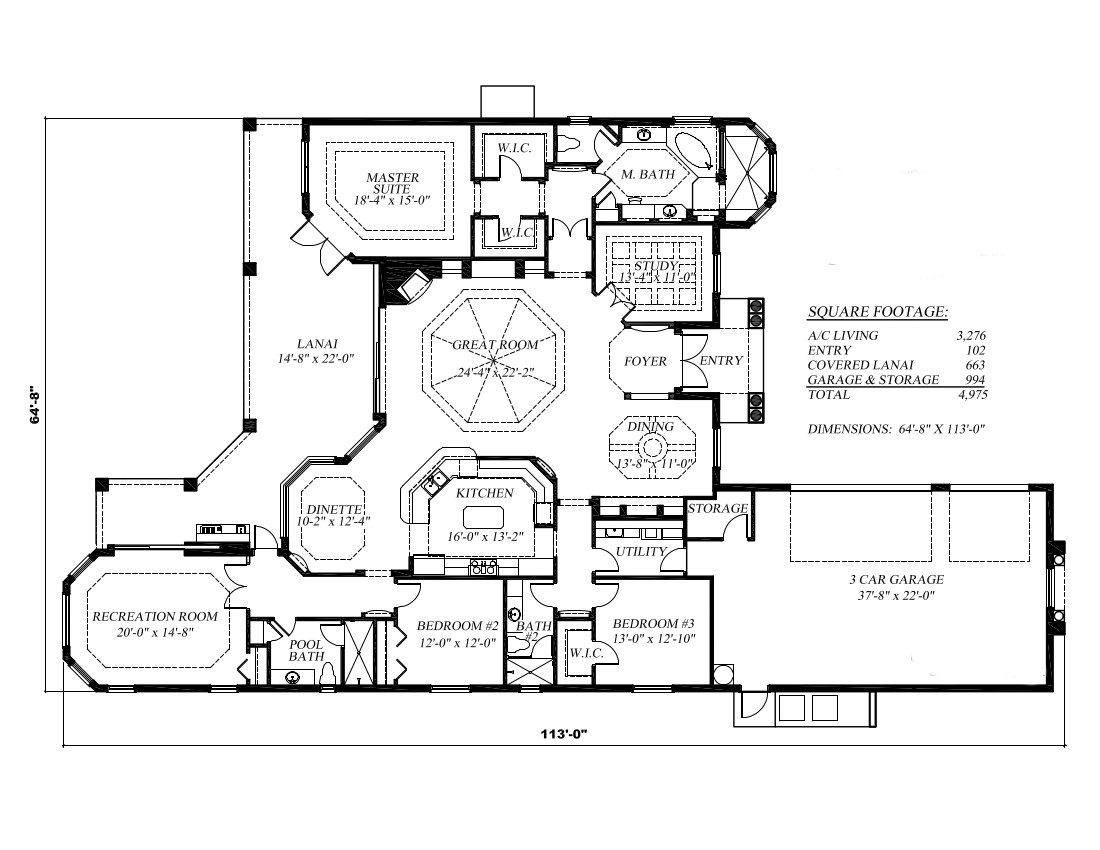

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
