4-Bedroom, 3490 Sq Ft Mediterranean Plan with Nook/Breakfast Area
Related House Plans
| 3490 SQUARE FEET | 4 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 69' 8" WIDTH | 115' 0" DEPTH | 3 GARAGE BAY |
This award winning home has striking curb appeal with its well-balanced and detailed Mediterranean facade. The floor plan offers open, formal and casual living areas. Plenty of natural light and views to spacious outdoor areas are provided by the use of pocketing sliding-glass doors, French doors, windows, and mitered glass. This design offers four full bedrooms with four full baths. The family room features a built-in entertainment center with fireplace and is easily furnished. The functional and spacious kitchen is open to the family room and dinette. The plan is also available in a smaller version. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction
Each plan set includes the following:

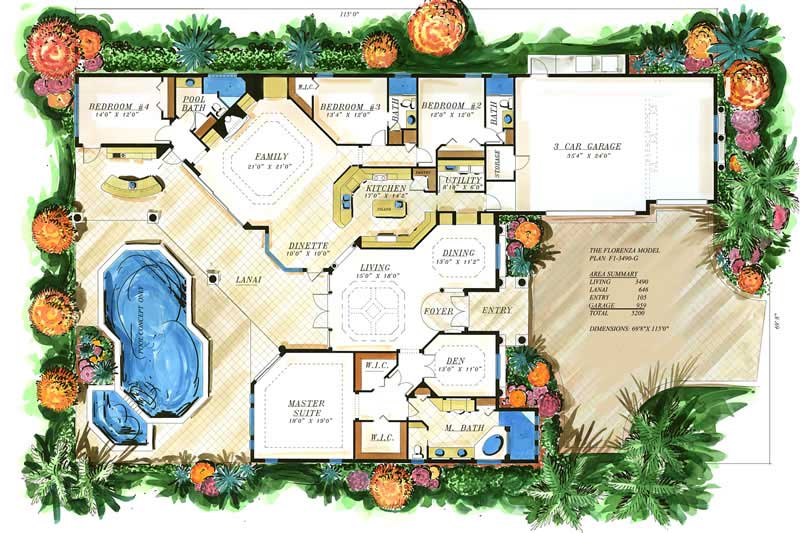

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
