Contemporary Ranch style house (ThePlanCollection: Plan #108-2016)

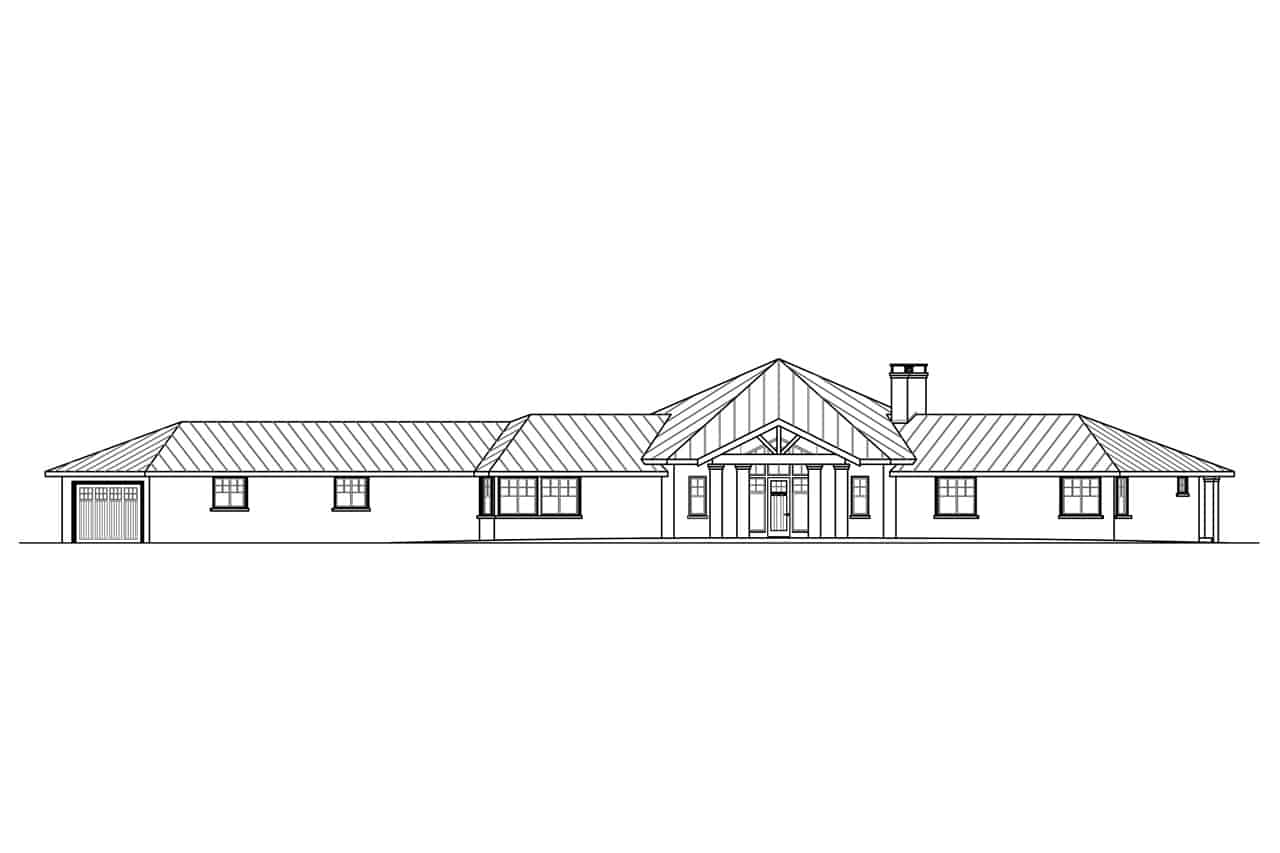

108-2016: Home Plan Front Elevation
3-Bedroom, 3433 Sq Ft Ranch House - Plan #108-2016 - Front Exterior

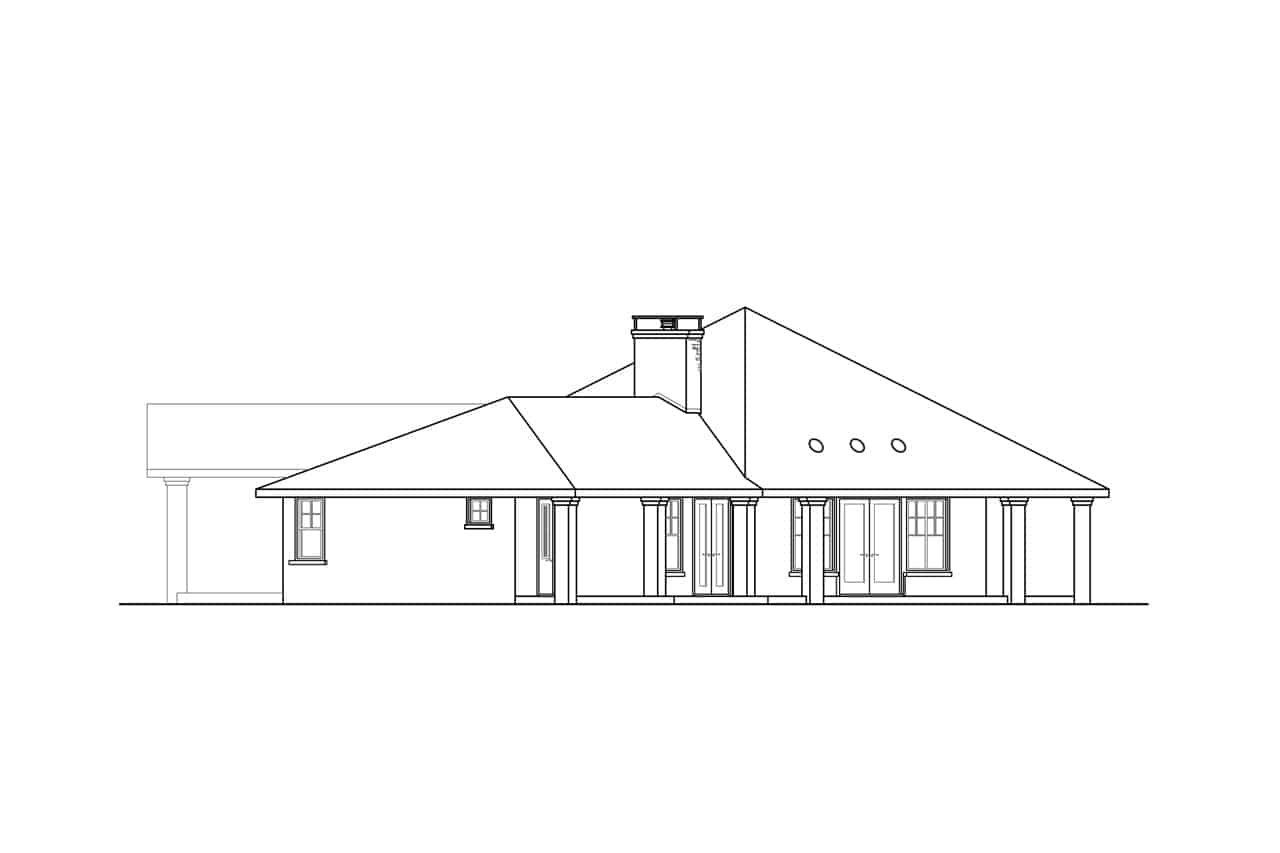

108-2016: Home Plan Left Elevation

About Plan # 108-2016

About Plan # 108-2016

3433 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 155' 8" WIDTH 85' 3" DEPTH 2 GARAGE BAY

Welcome home to this fabulous and spacious ranch home boasting an open floor plan and multiple bedroom suites. The creative single-story floor plan has 3433 square feet of heated and cooled living space plus an oversized 1012-square-foot 2-car garage. Enjoy the following features:

  • Vaulted porte-cochere leading to the main entry
  • Hexagon-shaped Great Room with plenty of windows and doors leading out the wrap-around covered rear deck
  • Vaulted ceilings in both the Great Room and the owners' suite
  • Fireplaces in both the Great Room and the owners' suite
  • Open-concept kitchen with island, eating bar, and breakfast nook
  • Laundry room with sink
  • Study nook/pocket office
  • Wrap-around rear covered deck

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

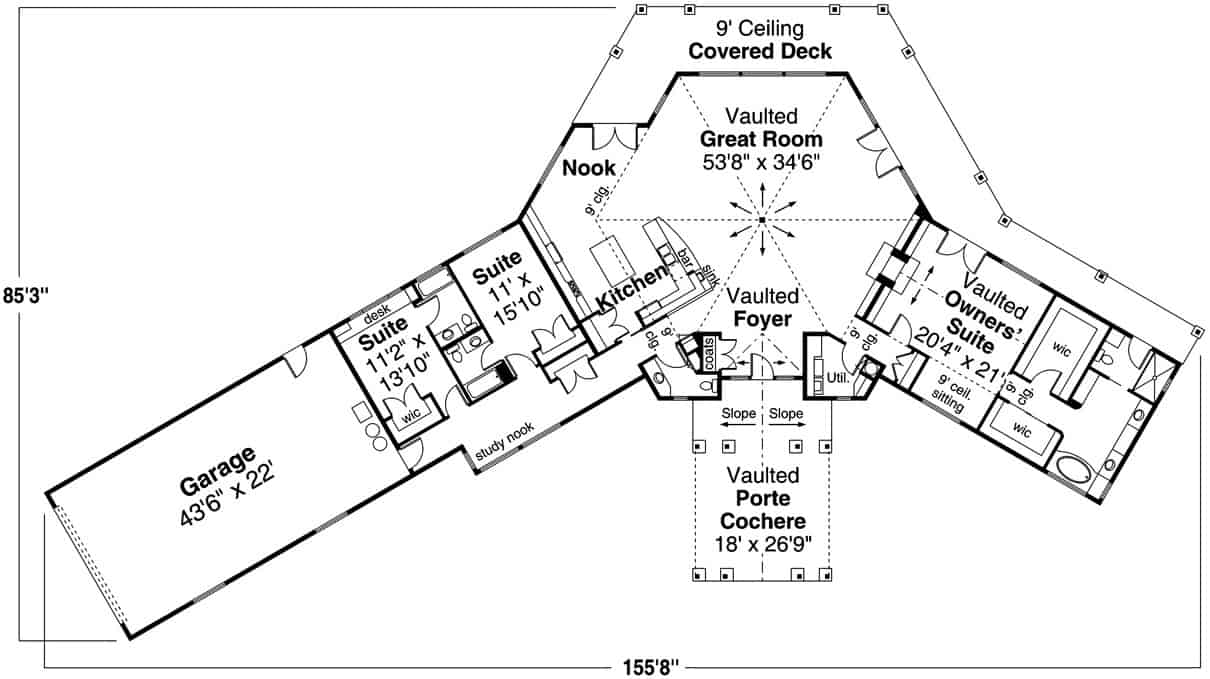

Home Plan: #108-2016 Floor Plan First Story - main level Main Level of Ranch Plan #108-2016
Home Plan: #108-2016 Floor Plan First Story - main level Main Level of Ranch Plan #108-2016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-2016
Floors:
1
Bedrooms:
3
Full Baths:
3
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
3433
Main Floor:
3433
Unfinished Sq Ft:
Garage :
1012

Dimensions

Width:
155' 8"
Depth:
85' 3"
Ridge Height:
25' 0"

Architectural Styles

Ranch
Contemporary
Luxury

Exterior Wall Material

Rock/Stone

Roofing Type

Hip

Roofing Material

Metal

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Home Office
Family Room
Main Level Laundry
Storage
Vaulted Ceilings
Open Floor Plan
L-Shaped

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Flat Site
View Lot
Corner Lot

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Rear Porch
Porte-Cochere

Master Suite Features

Main Floor Master
Fireplace in Master
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom

Additional Notes from Designer

Total covered square footage: 4445 square feet


PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost ...
...Read More

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.
