Rustic Duplex with Matching 2160 sq ft, 5-Bedrooms, 5-Baths per Unit

Main Image
Thumbnail Image

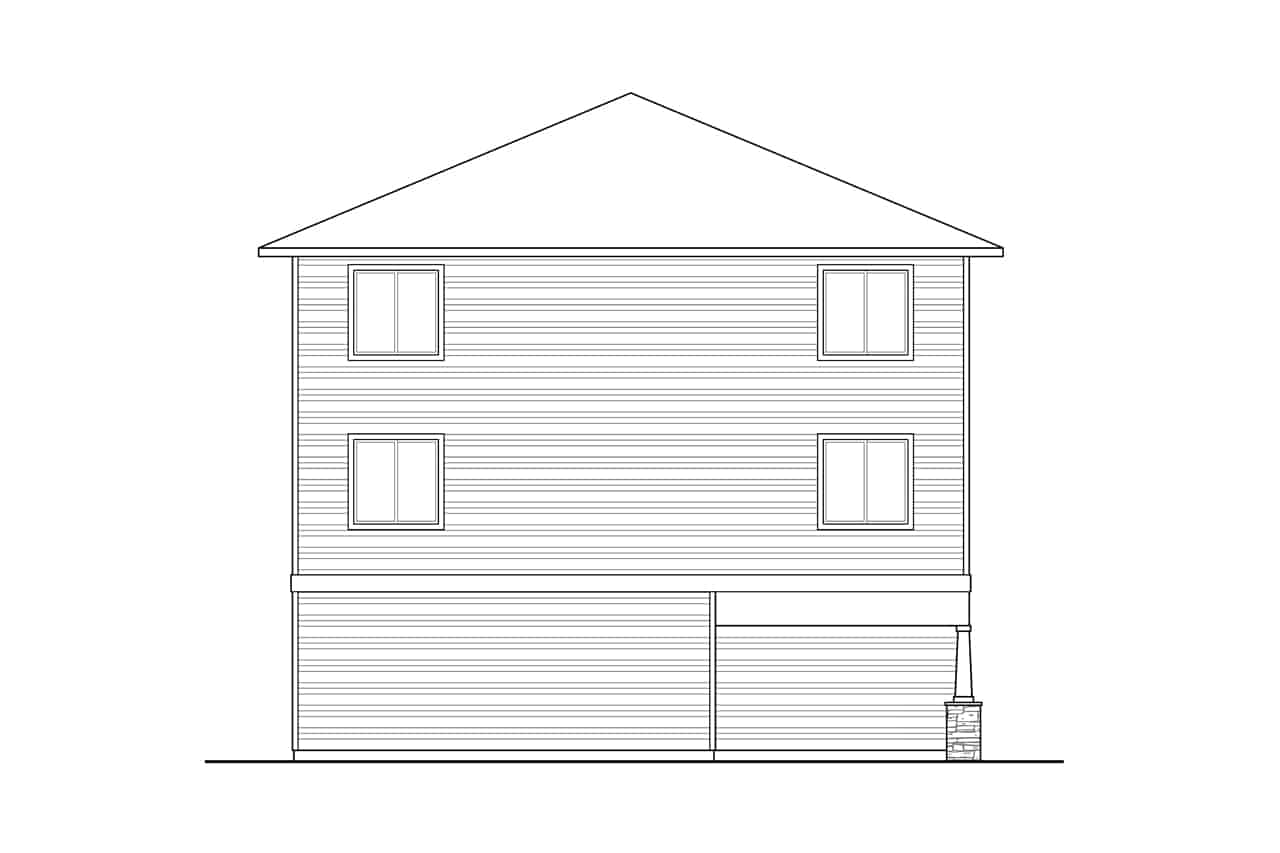

Home Plan Rear Elevation

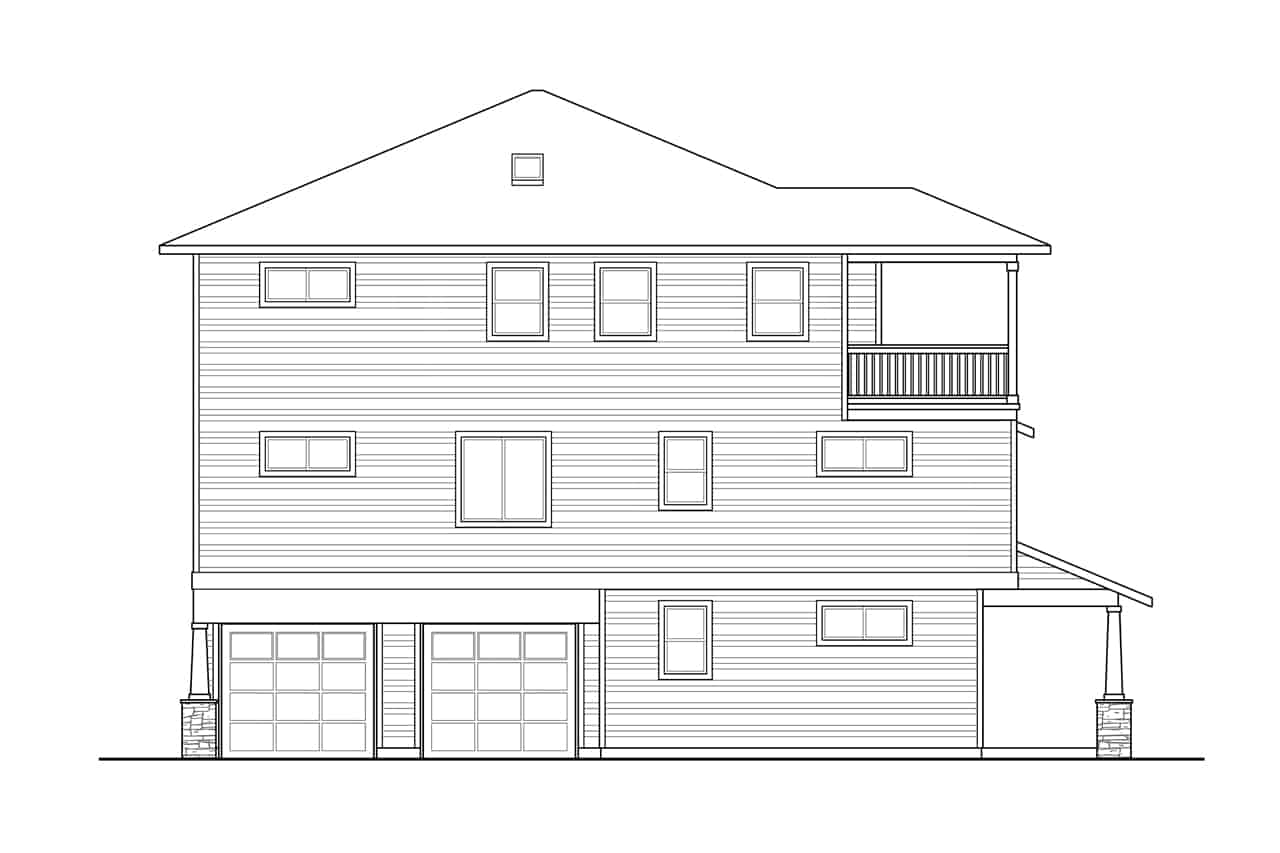

Home Plan Left Elevation

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #108-2056

Sq Ft
4320
Sq Ft
Bedrooms
10
Bedrooms
Bathroom
10
Baths
Half Baths
0
Half Baths
Bedrooms
2
Cars
Bedrooms
3
Stories
Bedrooms
40' 0'
Width
Bedrooms
54
Depth
From$3450What's included
STEP 1Bedrooms
STEP 2Bedrooms
STEP 3Bedrooms

Subtotal:$0
Plan Collection

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Floor Plans

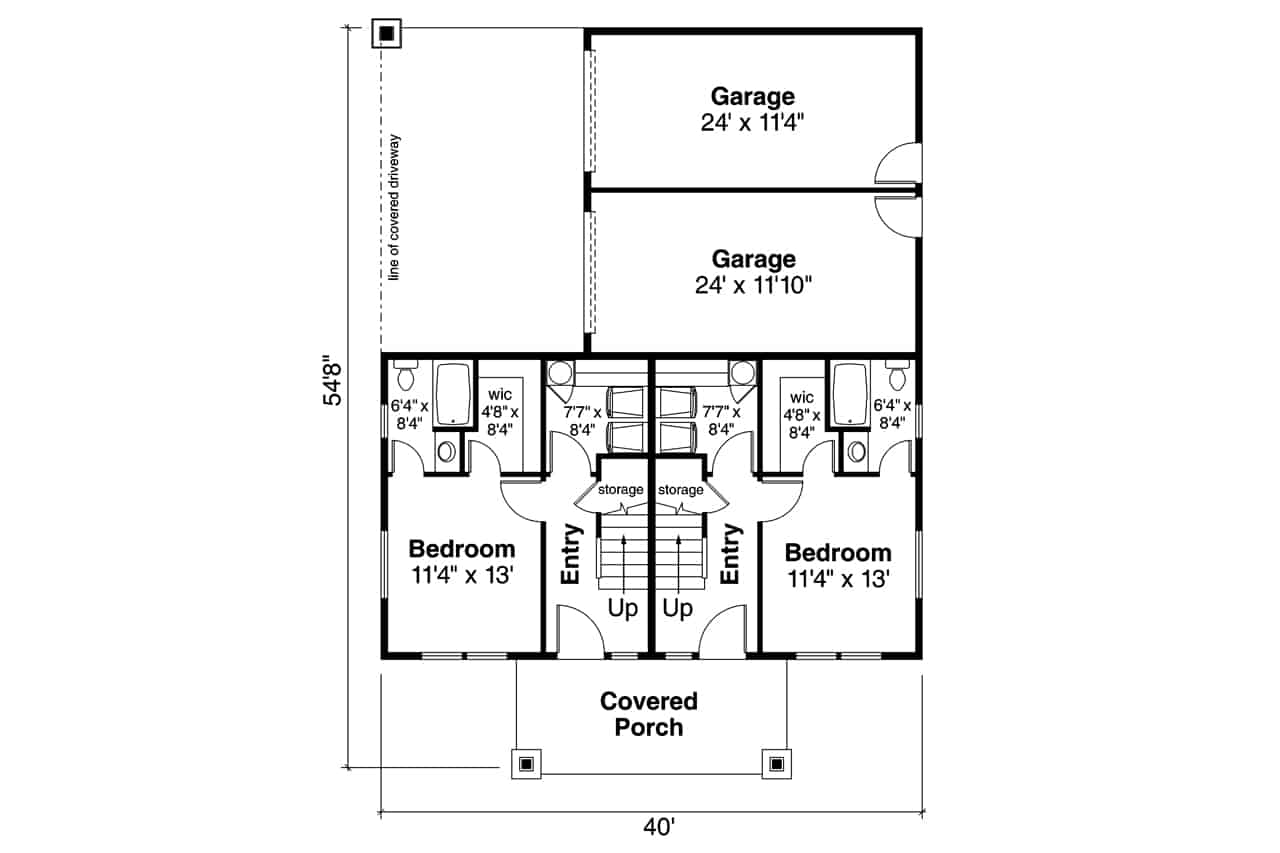

Main Level

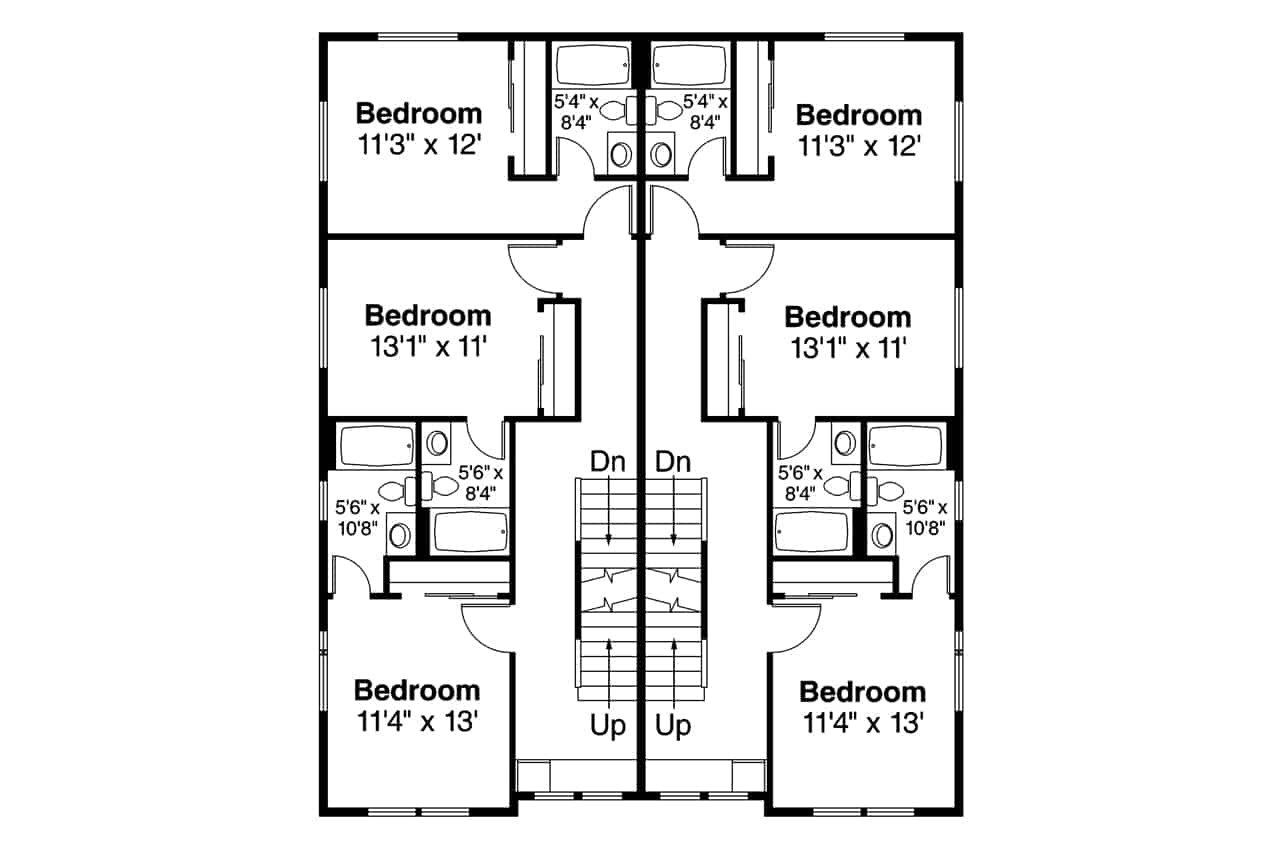

Upper Level

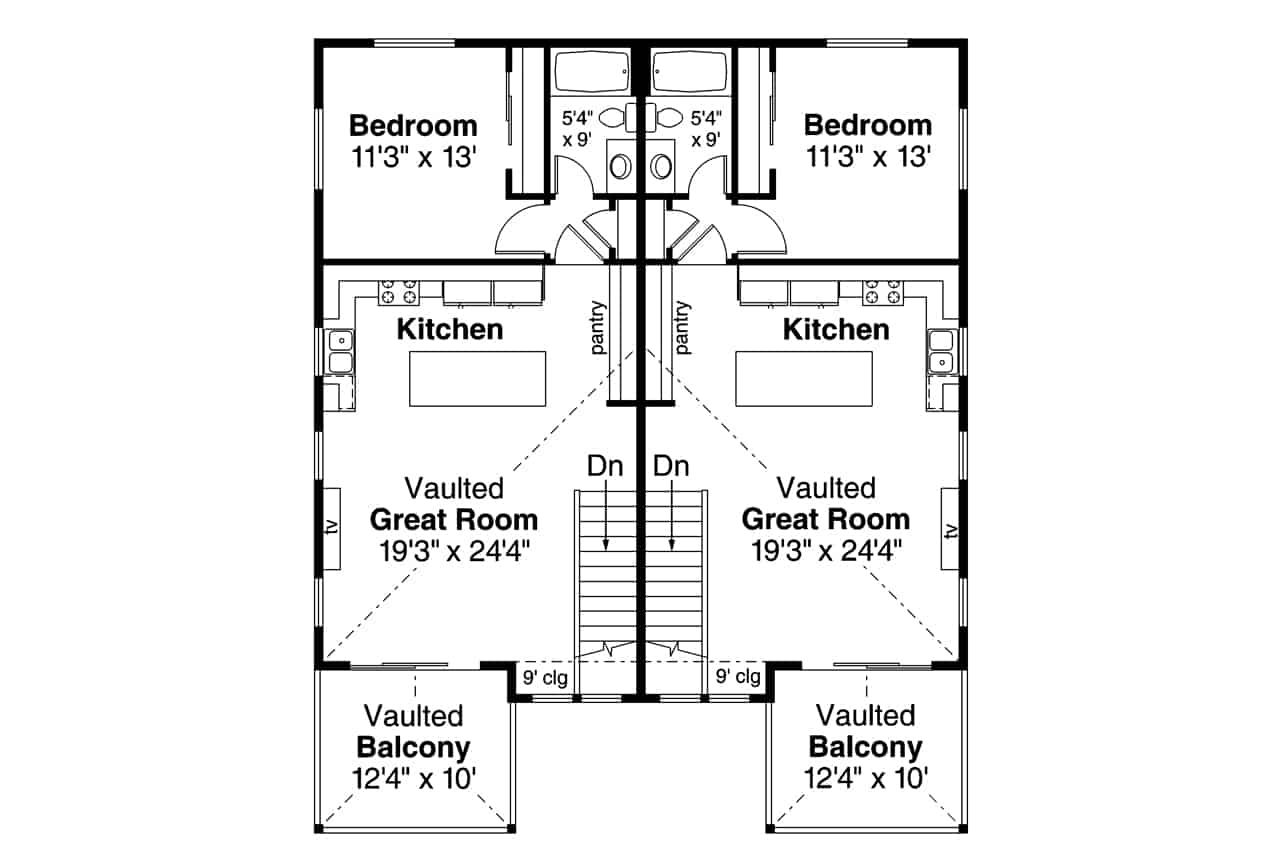

Third Story
Main Level
Main Level
Plan Collection

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete. <br/><p>This duplex plan has two identical units. Each unit has 2160 living square feet, 5 bedrooms, 5 bathrooms, and one garage space.</p> <p>&nbsp;</p>

House Plan Description

Welcome home to this excellently designed contemporary rustic duplex with wonderful porch/balcony spaces. Plenty of living space makes this 2-unit home the perfect place for relaxing and entertaining. The duplex covers a total heated and cooled area of 4320 square feet (2160 sq ft per Unit, each with 5 Bedrooms, 5 Full Baths and 1 Garage Space). Thid Duplex also has:

  • Open concept layout
  • Great Room with a vaulted ceiling
  • Balcony with a vaulted ceiling
  • Lots of storage space

Home Details

Summary
Plan #:108-2056
Floors:3
Bedrooms:10
Full Baths:10
Half Baths:0
Garage:
Square Footage
Heated Area:4320 Sq. Ft.
First Floor:906 Sq. Ft.
Second Floor:1932 Sq. Ft.
Third Floor:1482 Sq. Ft.
Unheated Area:
Garage:600 Sq. Ft.
Dimensions
Depth:54' 8''
Architectural Styles
Exterior Wall Material
Vinyl SidingRock/StoneWood Siding
Roofing Type
Hip
Roofing Material
Asphalt Shingles
Roof Pitch
5/12
Ceiling Height
9 Foot Ceiling
Special Feature
Family RoomMain Level LaundryStorageVaulted CeilingsBalconyOpen Floor Plan
Garage Type
Courtyard Entry
Exterior Wall Framing
2x6
Building Lot Type
Narrow Lot Design
Kitchen Features
Kitchen IslandWalk-in Pantry
Porches and Exterior Features
Covered Front Porch
Master Suite Features
Main Floor MasterMaster BathroomWalk In ClosetSplit Master Bedroom

What’s Included

Most plan sets include the following:

icon text-secondary-400 included Artist&rsquo;s rendering of the home,

icon text-secondary-400 included Front/Rear/Left and Right Elevations,

icon text-secondary-400 included Main floor plan, Second or Basement floor plans (if applicable),

icon text-secondary-400 included Foundation plan and detail,

icon text-secondary-400 included Floor framing plan,

icon text-secondary-400 included Roof framing plan, supporting details and

icon text-secondary-400 included Electric layout.

What’s Not Included

These items are  NOT included:

icon text-secondary-400 includedArchitectural or Engineering Stamp - handled locally if required.

icon text-secondary-400 includedSite Plan - handled locally when required.

icon text-secondary-400 includedMechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

icon text-secondary-400 includedPlumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

icon text-secondary-400 includedEnergy calculations - handled locally when required.
