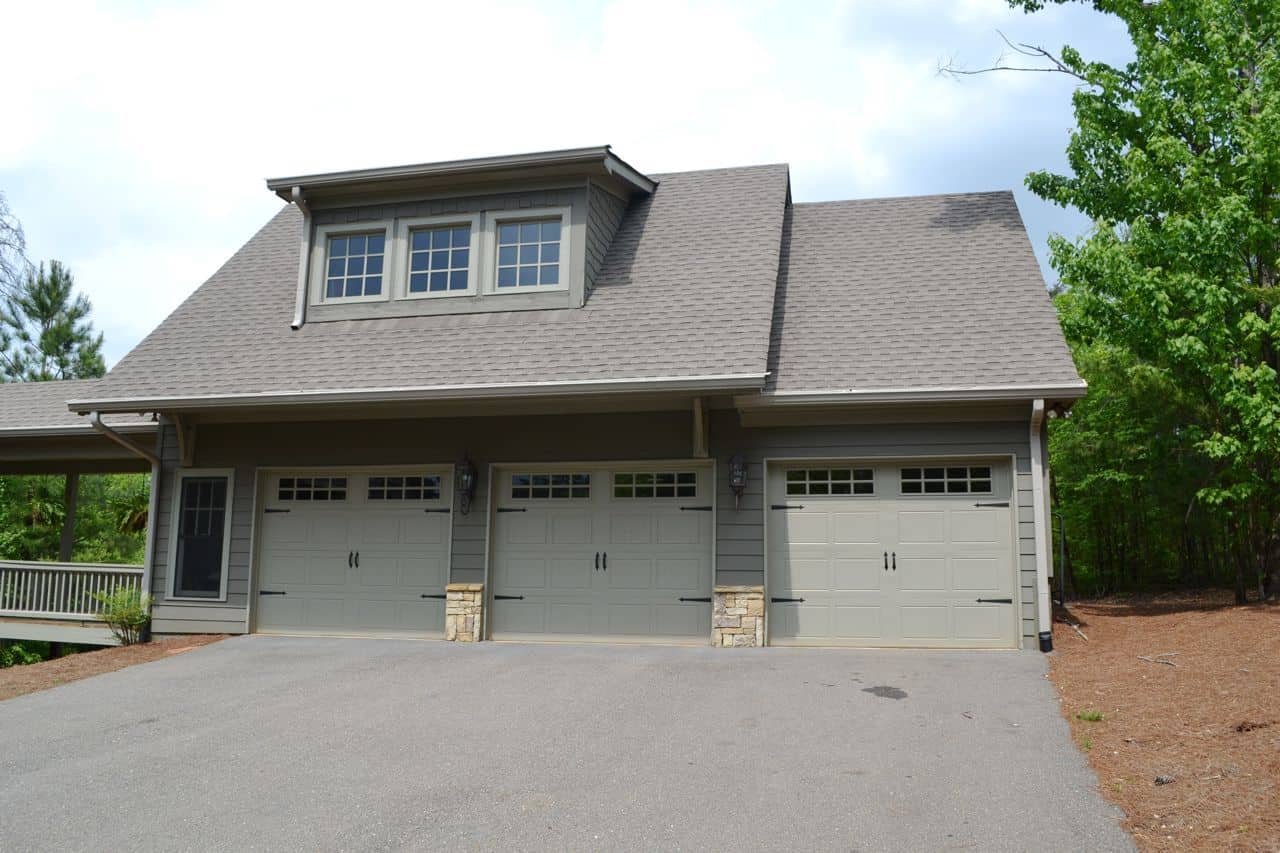

878 Sq Ft Garage with 487 Sq Ft Upper Level Office
Related House Plans
| 487 SQUARE FEET | 0 BEDROOMS | 0 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 37' 0" WIDTH | 24' 0" DEPTH | 3 GARAGE BAY |
This adorable detached garage plan is perfect as an addition to a home with 487-square-foot of heated and cooled living space on the second level, which can be used as an office or a guest room. The 878-square-foot 3-car garage with a side entrance has lots of windows around that exude natural light.
Each plan set includes the following:

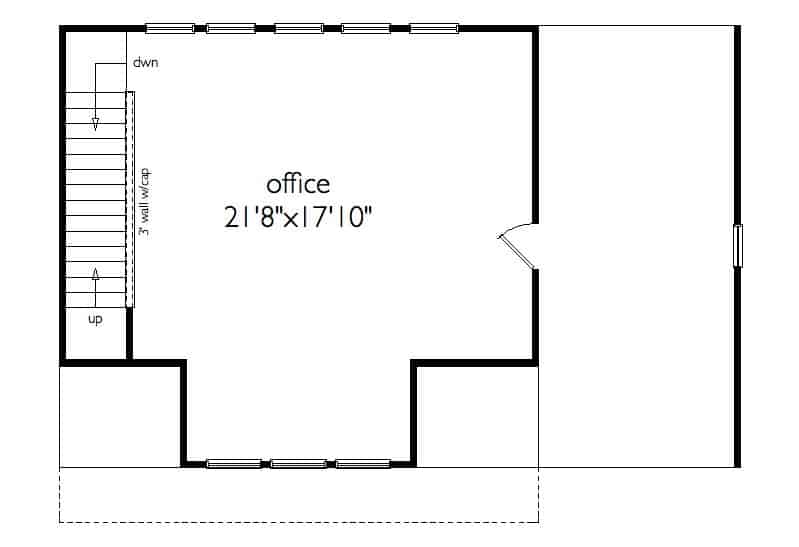

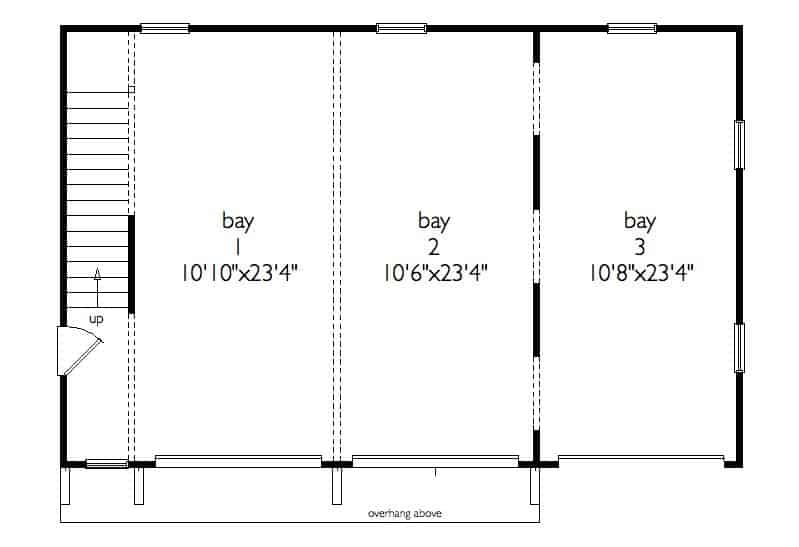

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.

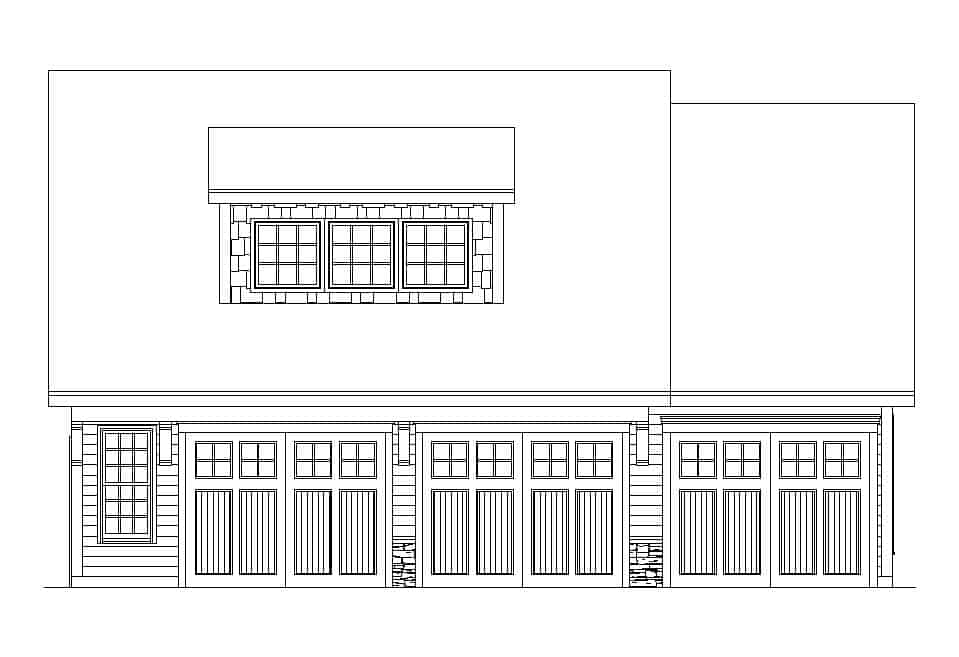

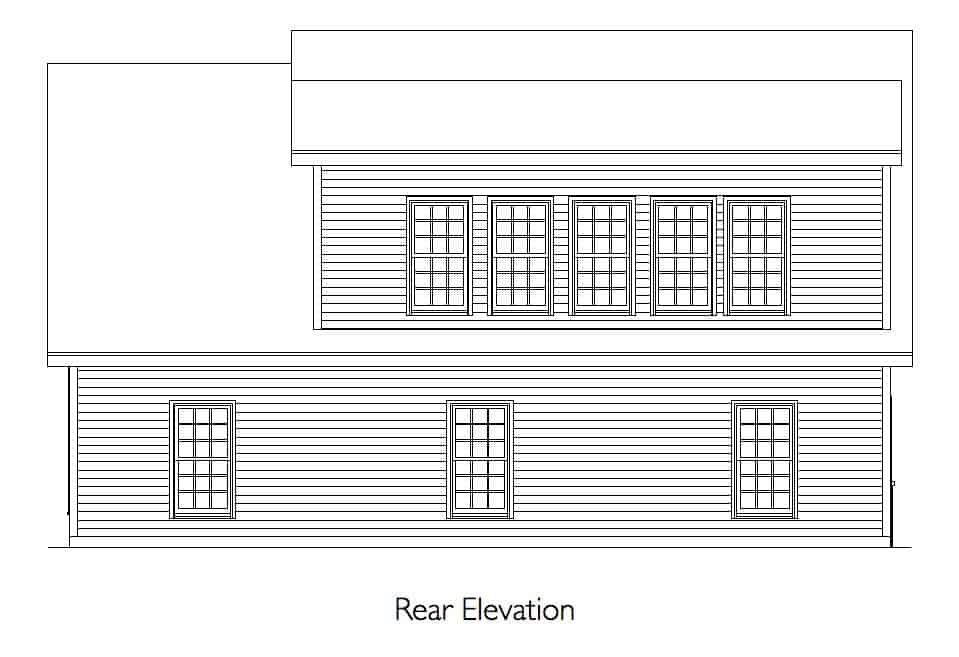

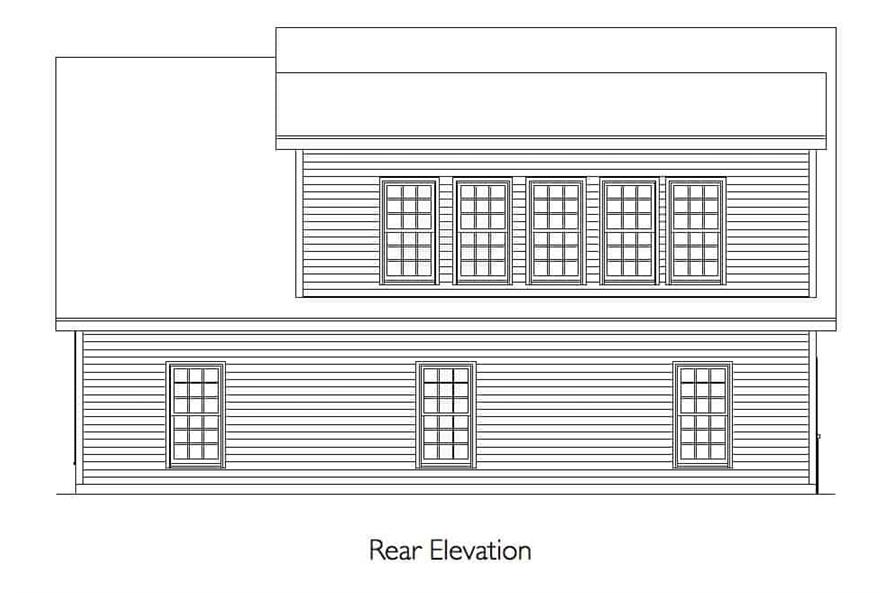

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.
