3-Bedroom, 1630-1631 Sq Ft PEr Unit Multi-Family Home Plan
Related House Plans
| 4892 SQUARE FEET | 9 BEDROOMS | 6 FULL BATH | 3 HALF BATH |
| 2 FLOOR | 110' 0" WIDTH | 37' 0" DEPTH | 6 GARAGE BAY |
This lovely multi-unit Craftsman style home with its sophisticated yet rustic design is sure to please every member of the family. The charming covered front porch, multi-pane windows, and stately columns combine to enhance the exterior of the house. The delightful 4892-square-foot home has three units. Each unit has 3 bedrooms and 2.5 baths, as well as these great amenities:
• Spacious utility room
• Powder room
• Lots of storage space

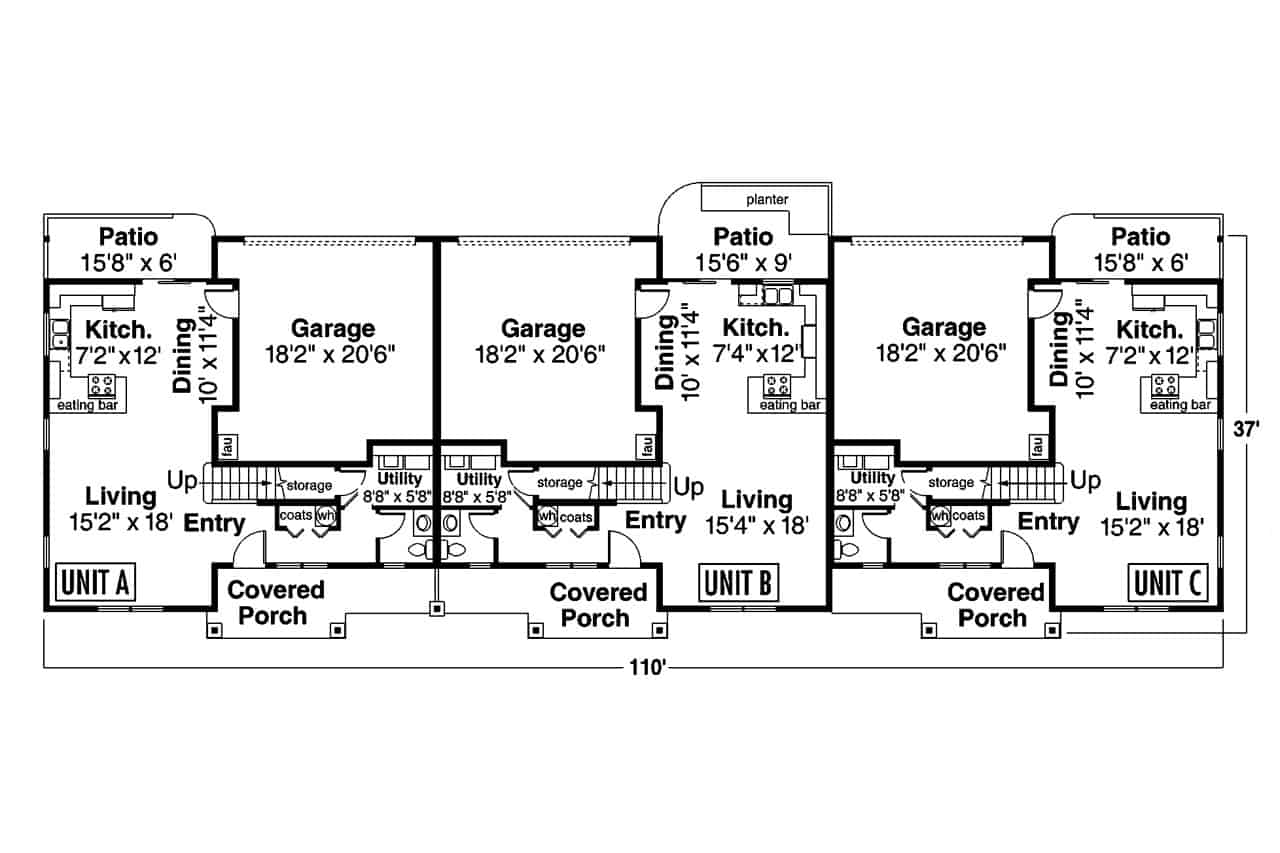

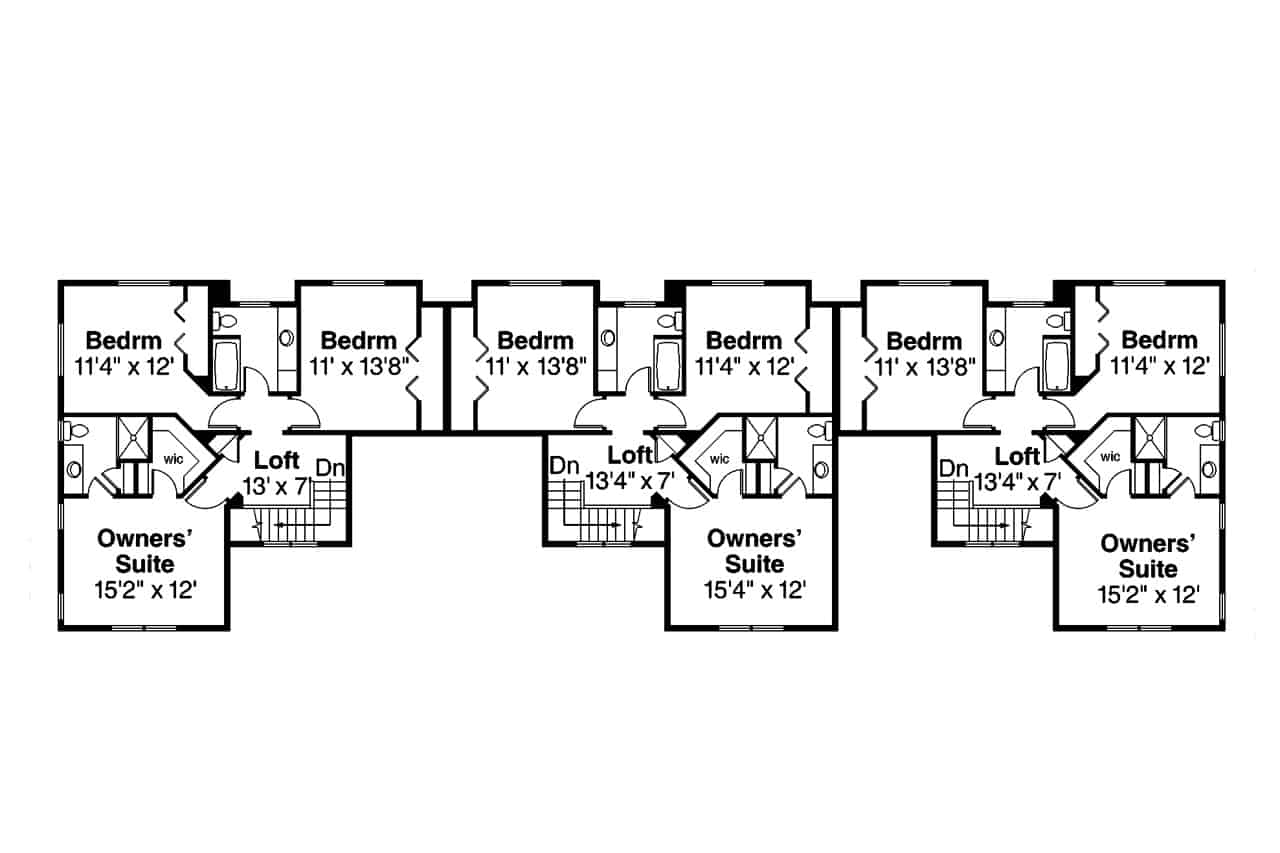

Unit A: 1631 square feet of heated and cooled finished living space (744 square feet on the main level and 887 square feet on the upper level) and a 2-car, 395 sq ft garage.
Unit B: 1630 square feet of heated and cooled finished living space (745 squa...
Each plan set includes the following:
-
Artist’s rendering of the home,
-

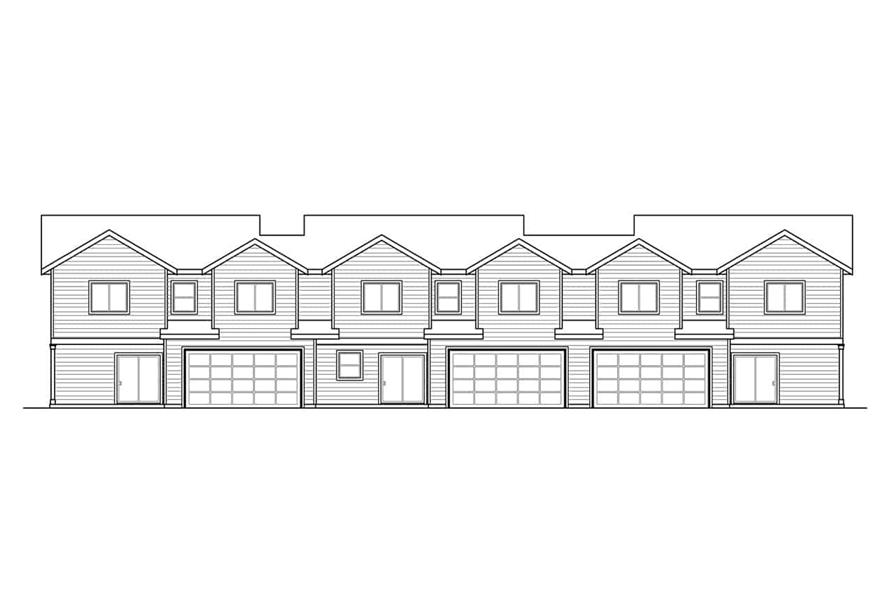

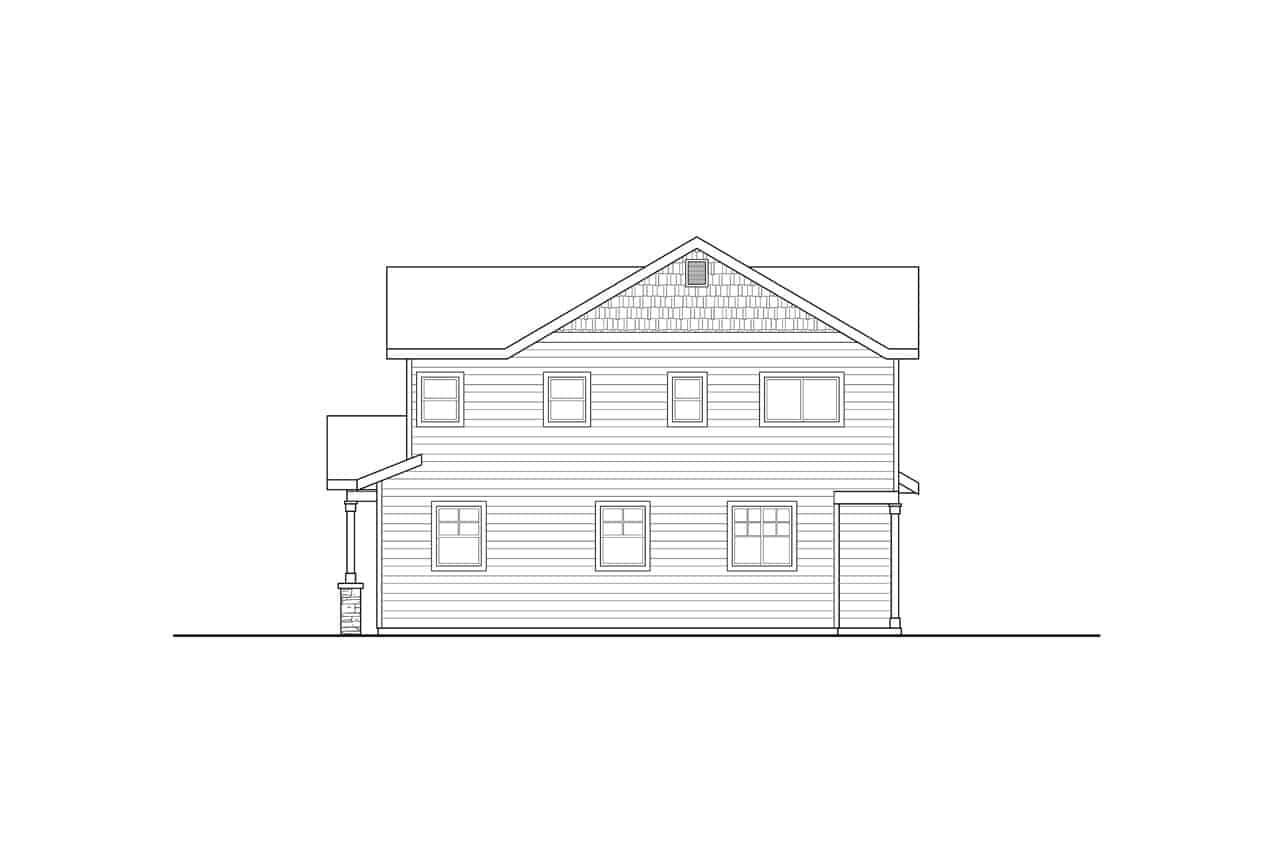

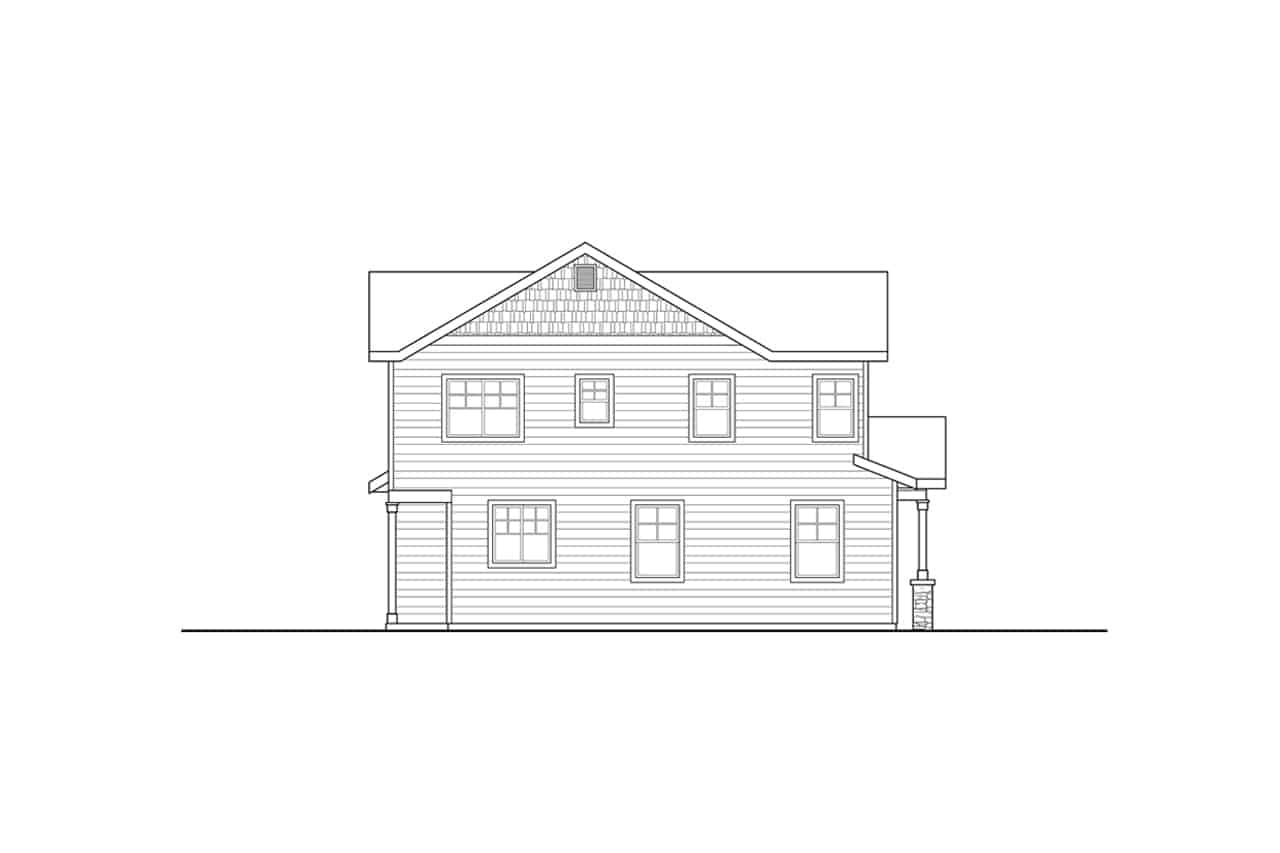

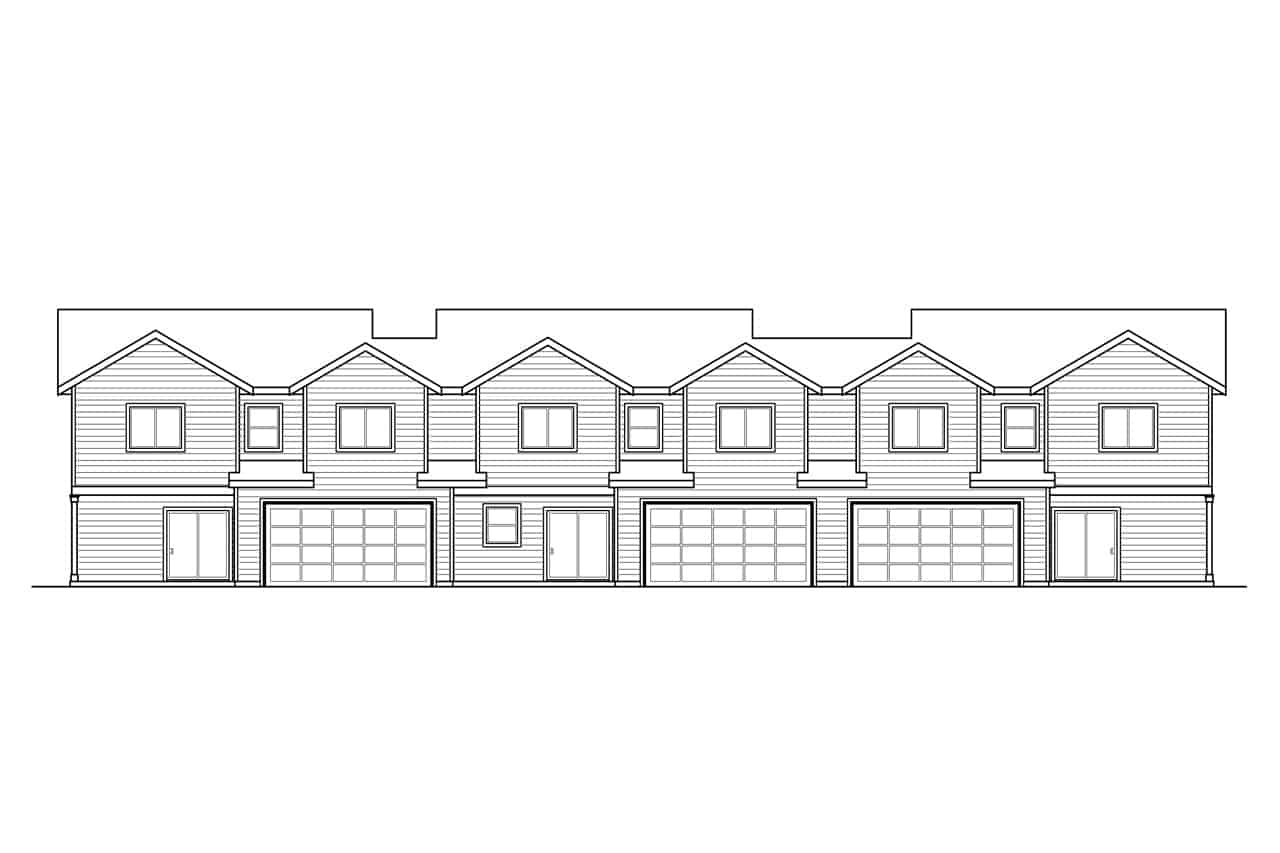

Front/Rear/Left and Right Elevations,
-
Main floor plan, Second or Basement floor plans (if applicable),
-
Foundation plan and detail,
-
Floor framing plan,
-
Roof framing plan, supporting details and
-
Electric layout.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
