5-Bedroom, 5671 Sq Ft European Plan with Covered Rear Porch

Each plan set includes the following:

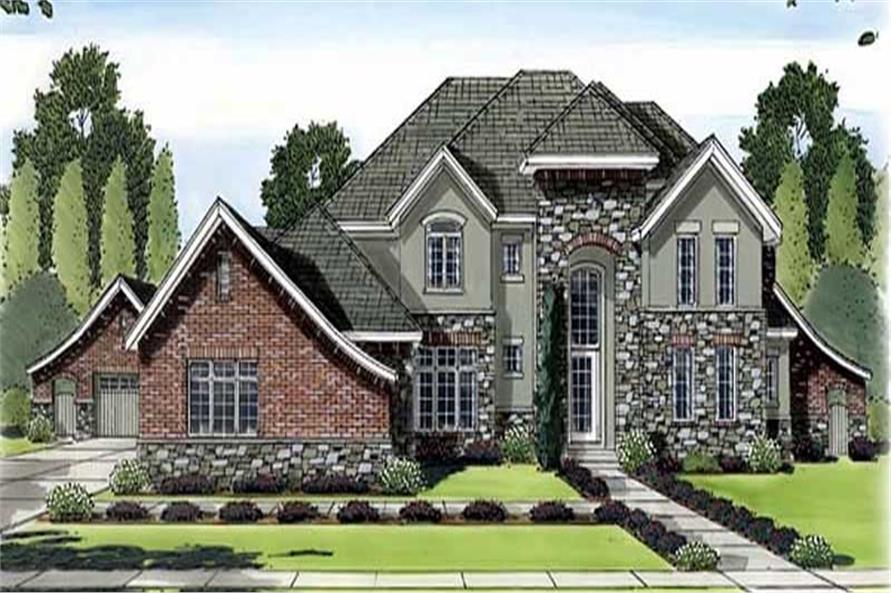

• Cover Sheet: Shows the front elevation and typical notes and requirements.

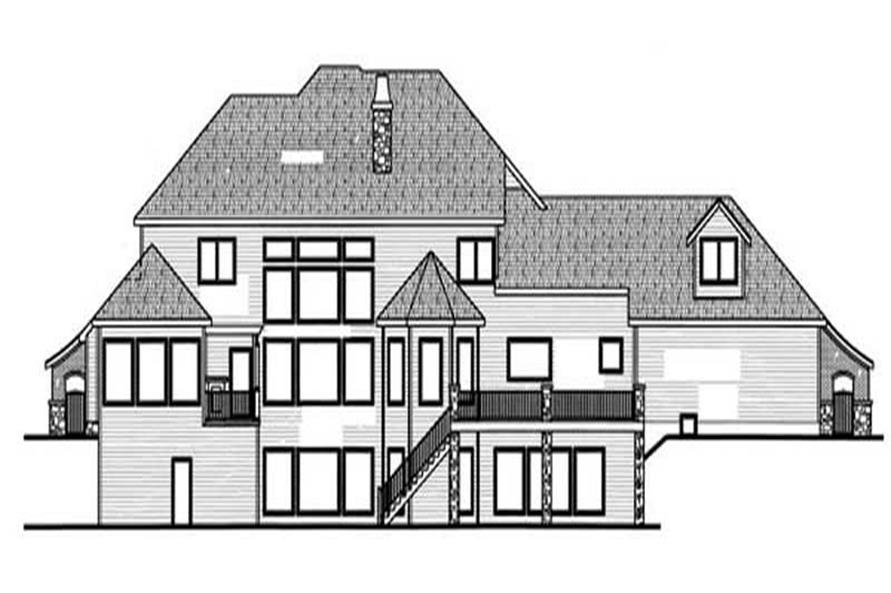

• Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

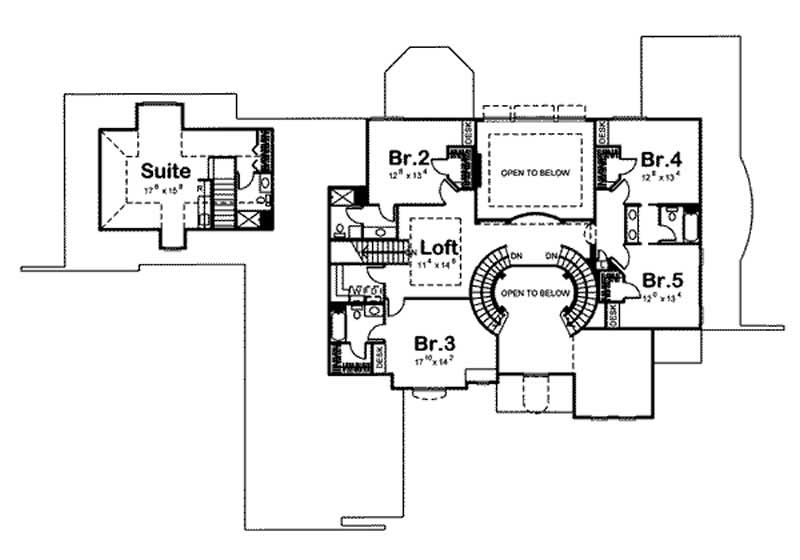

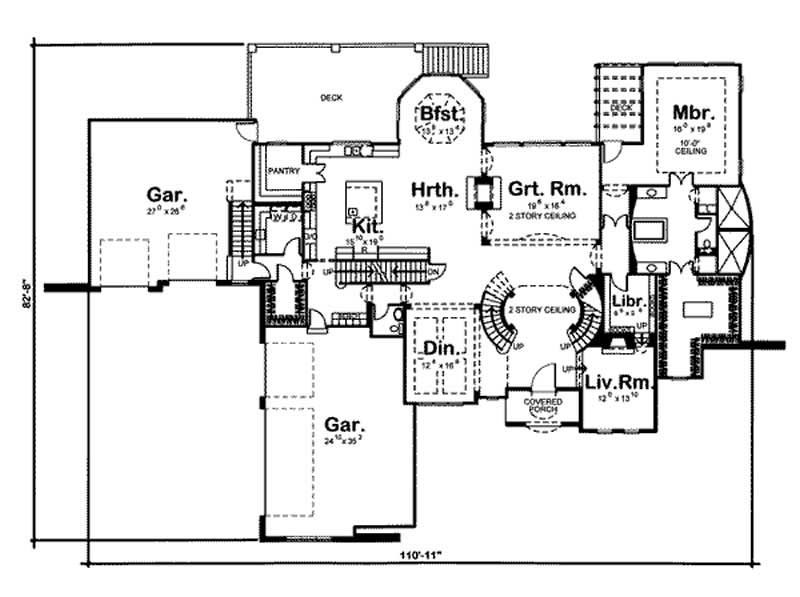

• Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
• Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
• Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
• Roof Plan
• Typical wall section
• Typical stair section
• Cabinets are shown on all plans.

These items are NOT included:

• Architectural or Engineering Stamp - handled locally if required.
• Site Plan - handled locally when required.
• Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
• Energy calculations - handled locally when required.
