5-Bedroom, 5699 Sq Ft Mediterranean Plan with Peninsula/Eating Bar
Related House Plans
| 5699 SQUARE FEET | 5 BEDROOMS | 5 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 73' 0" WIDTH | 116' 8" DEPTH | 0 GARAGE BAY |
Each plan set includes the following:
- Floor plan
- Kitchen & Bath layout
- Exterior elevations
- Sections
- Structural plans
- Foundation plan
- Roof plan
- Mechanical layout
- Electrical layout
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

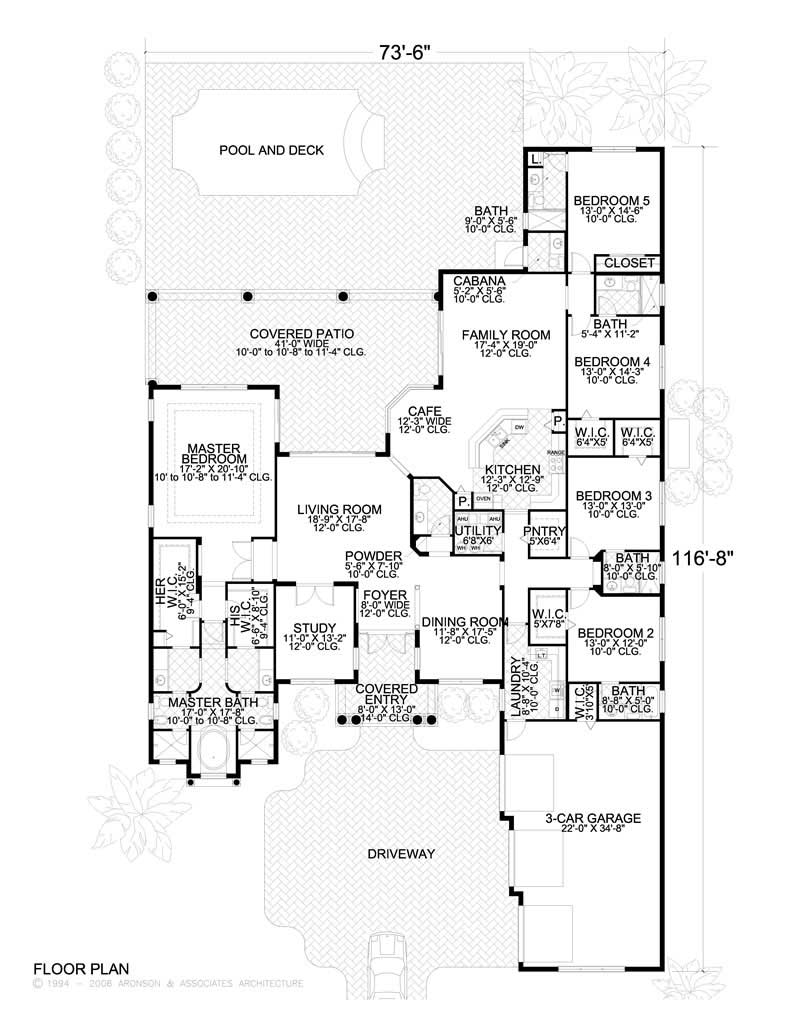

FLOOR PLANS Flip Images
