4-Bedroom, 6424 Sq Ft French Plan with Walk In Closet
Related House Plans
| 6424 SQUARE FEET | 4 BEDROOMS | 4 FULL BATH | 1 HALF BATH |
| 2 FLOOR | 87' 4" WIDTH | 75' 6" DEPTH | 3 GARAGE BAY |

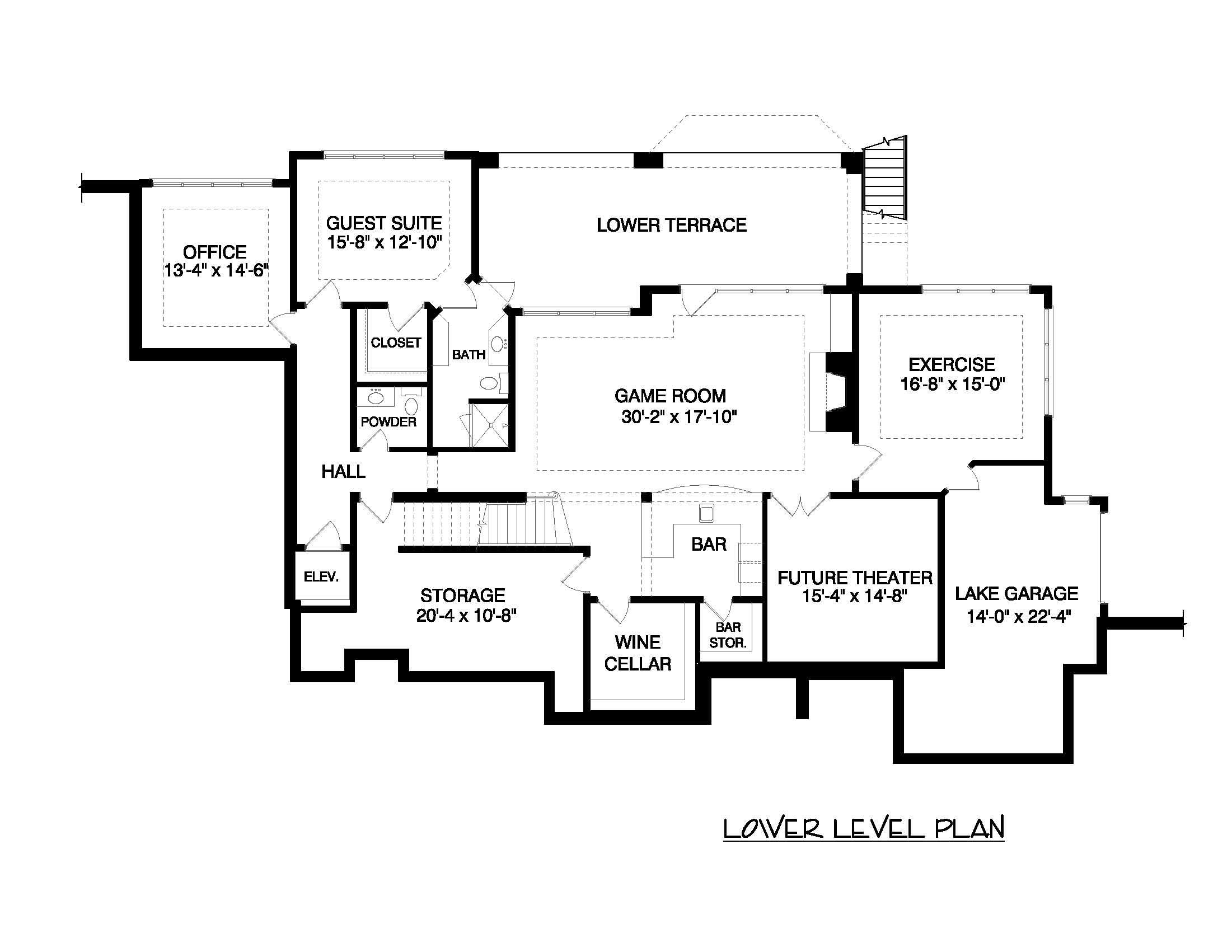

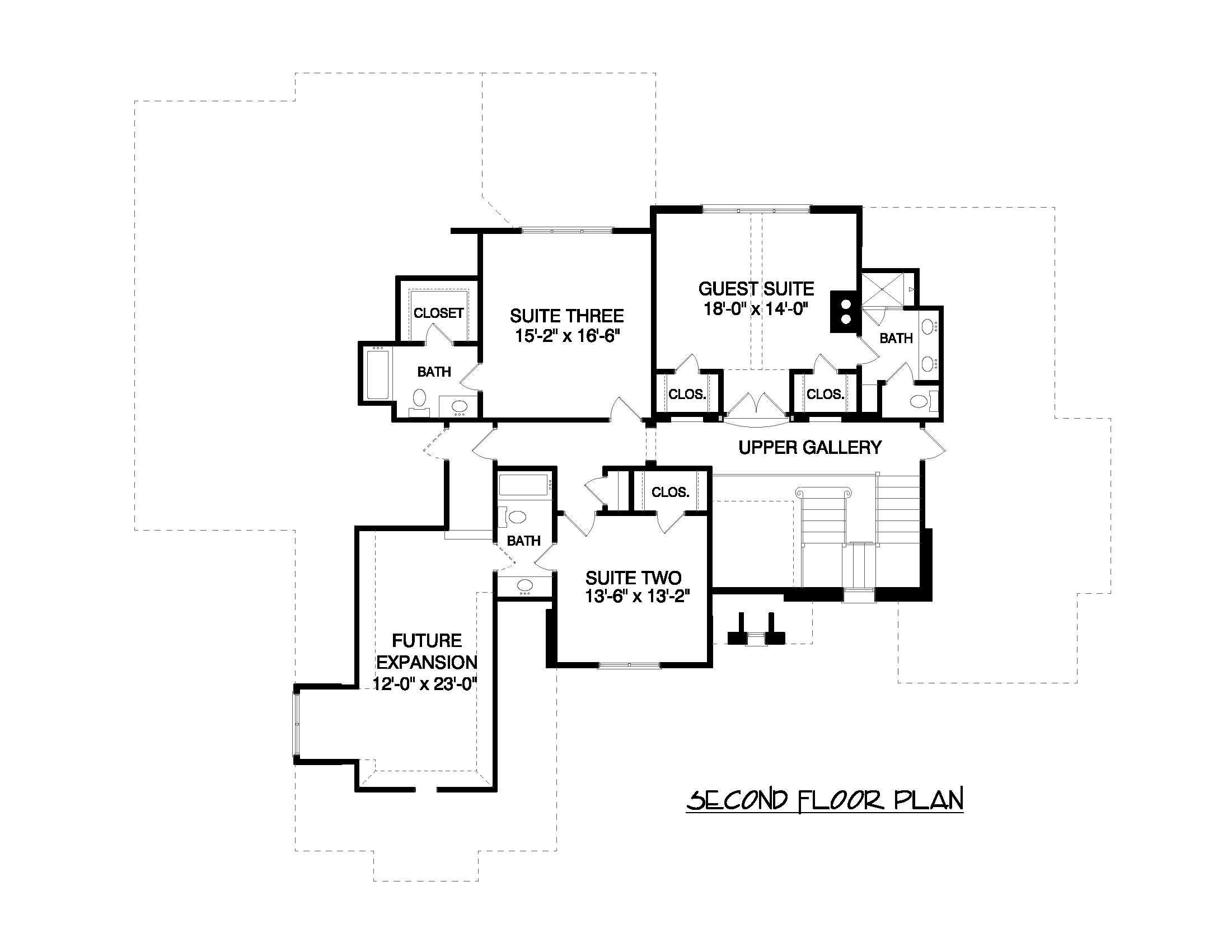

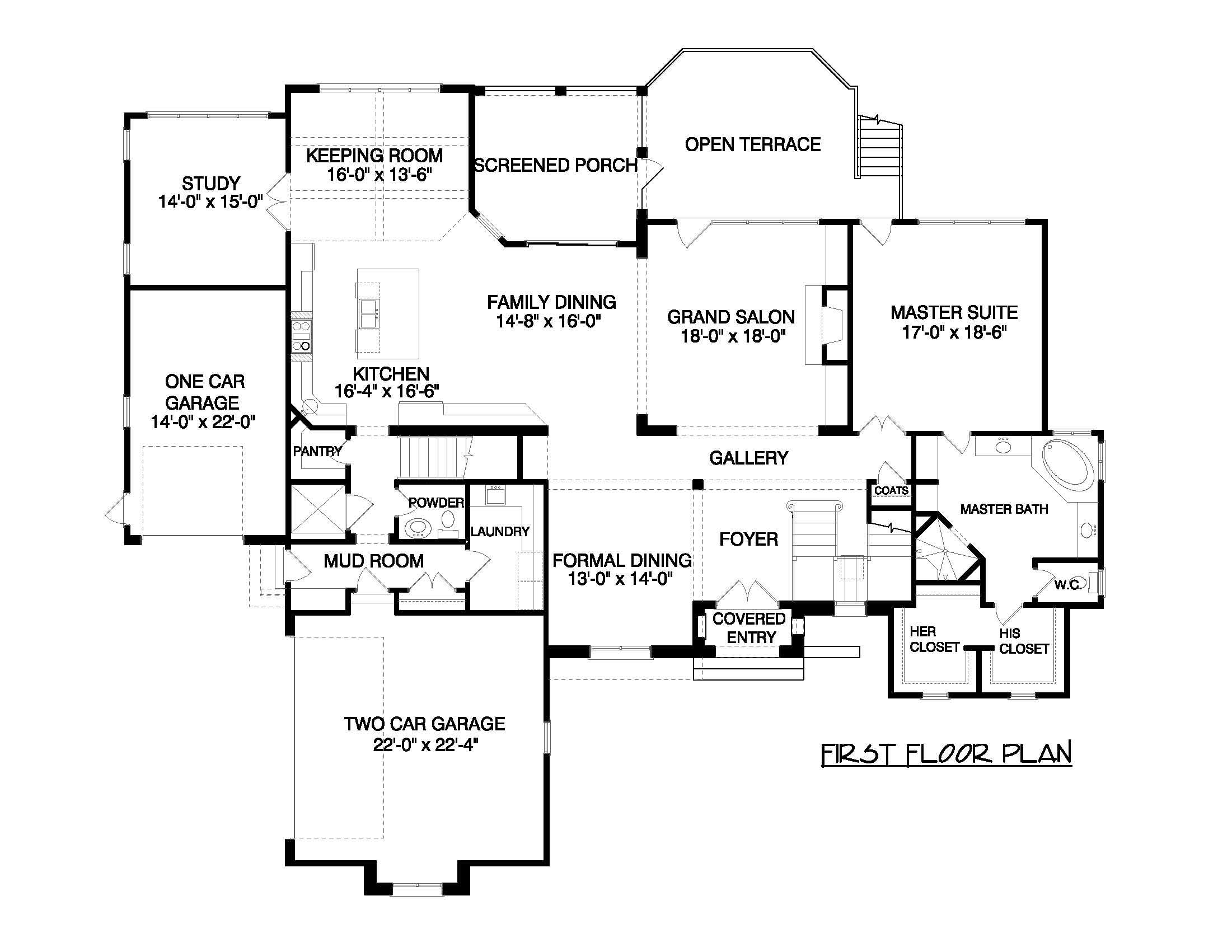

Luxury Home Plans " THE POINT " have an exceptional exterior and a functional floor plan. The master suite and laundry rooms are located on the main floor plan. The second floor plan has a guest suite, two other bedrooms and an area for future expansion. This home plan also has a basement, this area includes a a bar in the game room, wine cellar, exercise room, storage, and an office.
Each plan set includes the following:
- COVER PAGE
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
- CEILING FRAMING
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

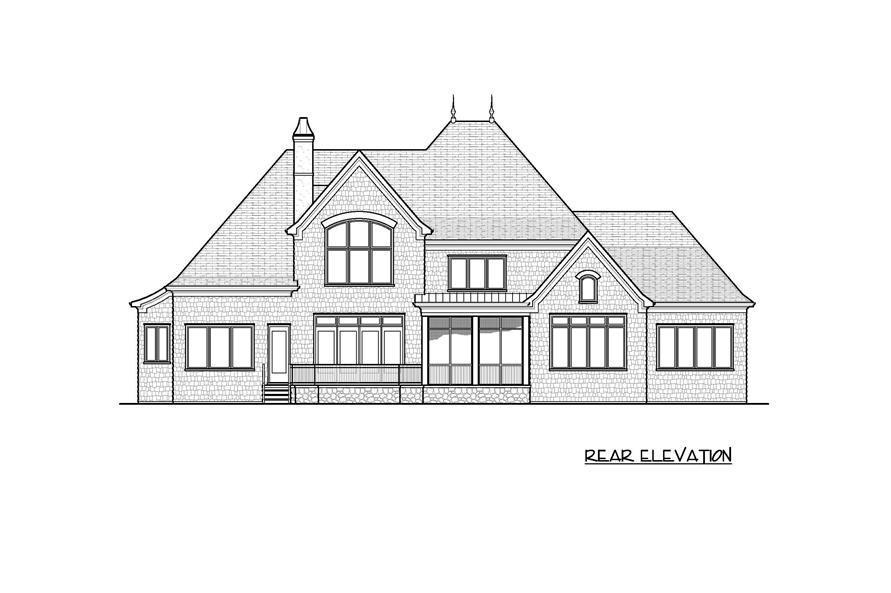

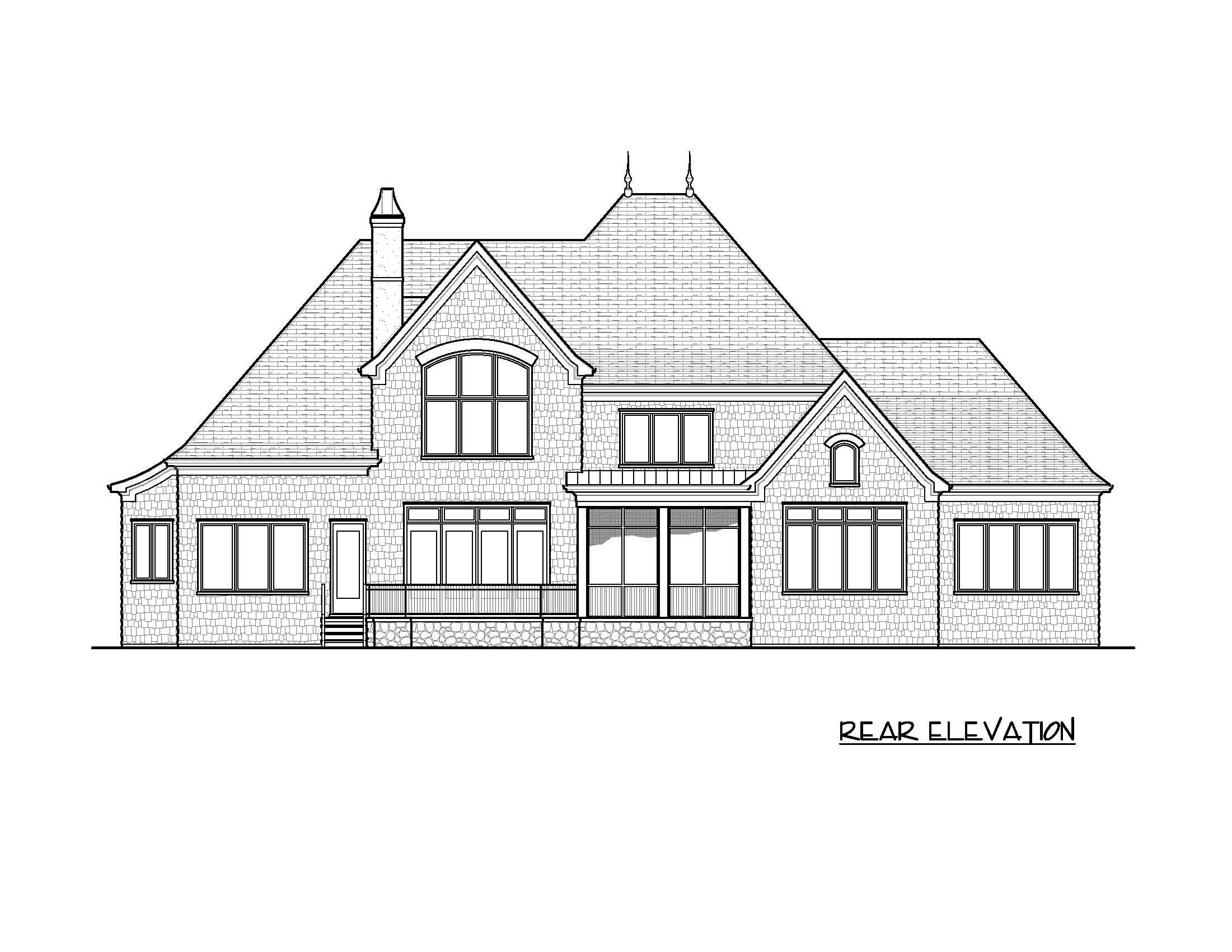

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
