2-Unit Multi-Family Design with Split Bedroom Layout
Related House Plans
| 2038 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 89' 8" WIDTH | 43' 0" DEPTH | 2 GARAGE BAY |

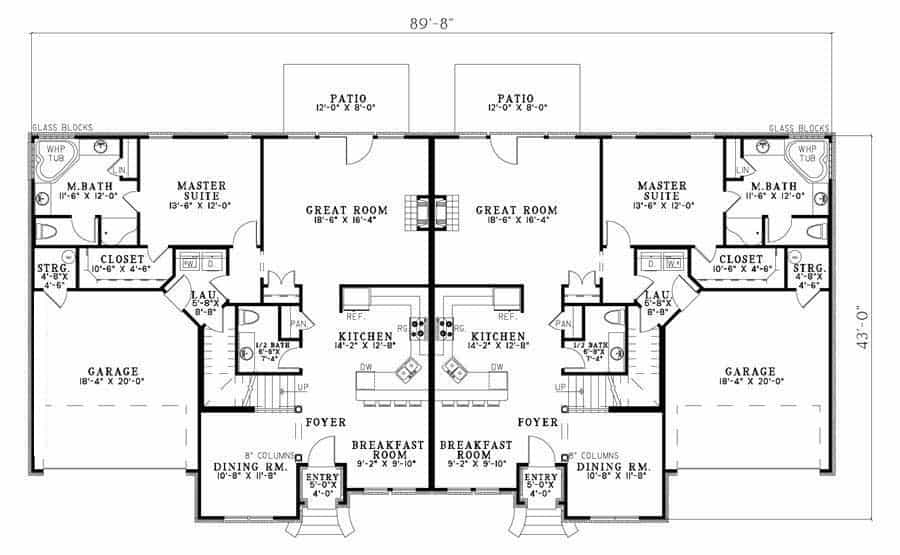

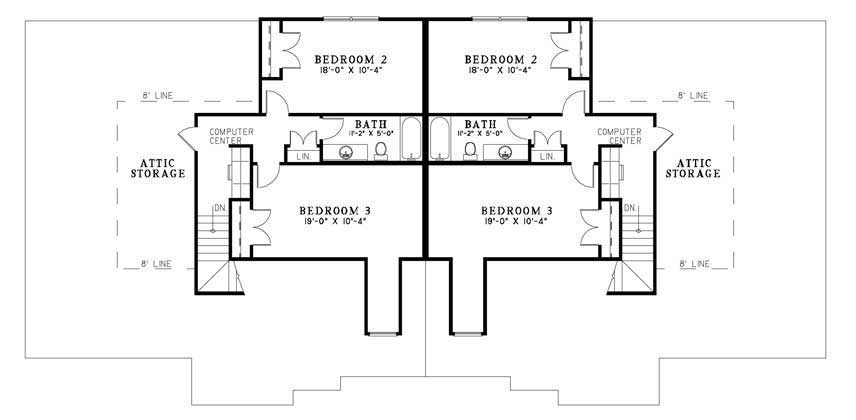

A classic exterior. A contemporary interior. Each of the two units boasts an open floor plan yet also designed for sufficient privacy. The kithen opens up to the breakfast room with a row of seats at the eating bar. The great room includes a fireplace as well as views to the rear patio. With bedroom 2 and bedroom 3 located upstairs from the main floor master suite, this duplex plan offers relaxation for everyone and privacy for a family with older children. Mom and dad can relax in the secluded master bedroom while their children enjoy their bedrooms located on the second level. Square footage same for both units -- 2038 living square feet -- for total living square footage for both units of 4076.
Each plan set includes the following:
-
floorplan
-
4 side exterior elevations,
-
electrical plan,
-
birds-eye view of the roof,
-
foundation plan,
-
and some miscellaneous details.
Please Note
We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
