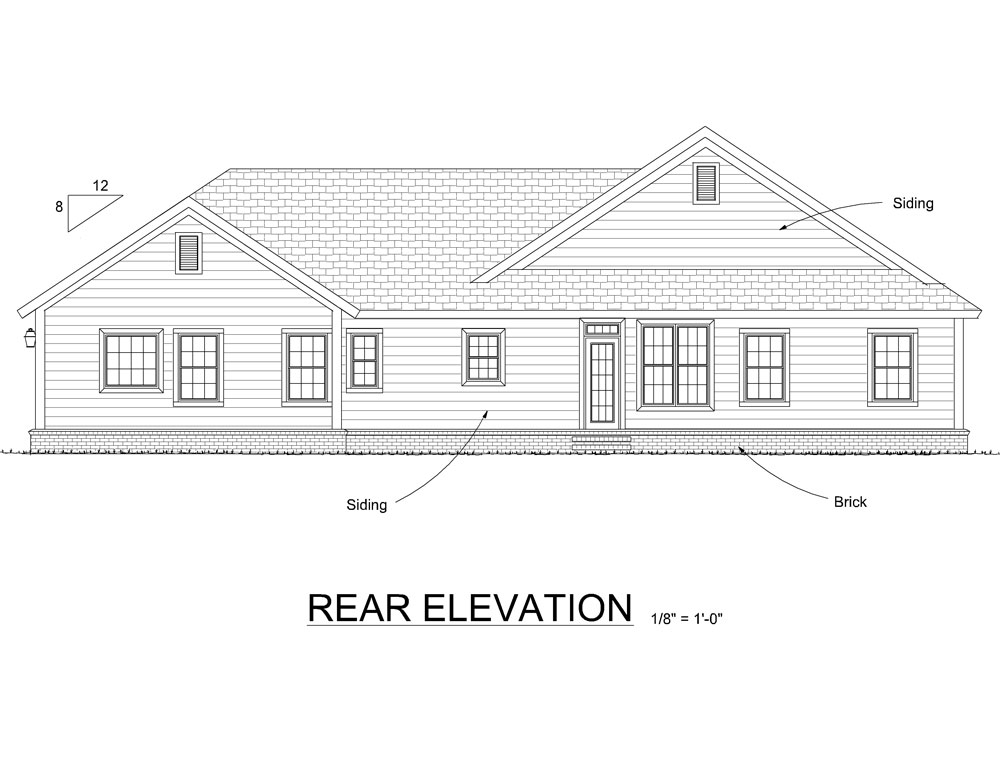

178-1304: Home Plan Rear Elevation
178-1304: Home Other Image-Front View

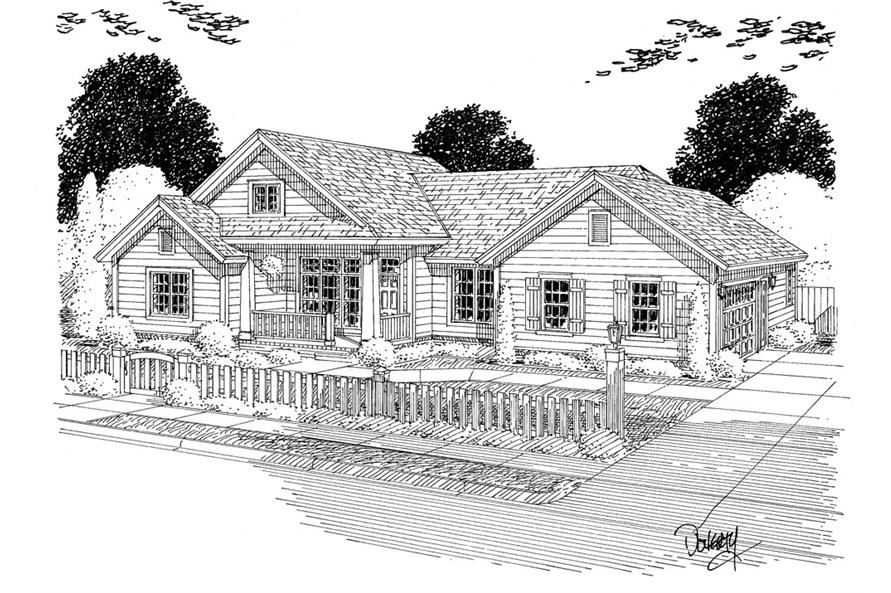

4-Bedroom, 1966 Sq Ft Ranch House Plan - 178-1304 - Front Exterior

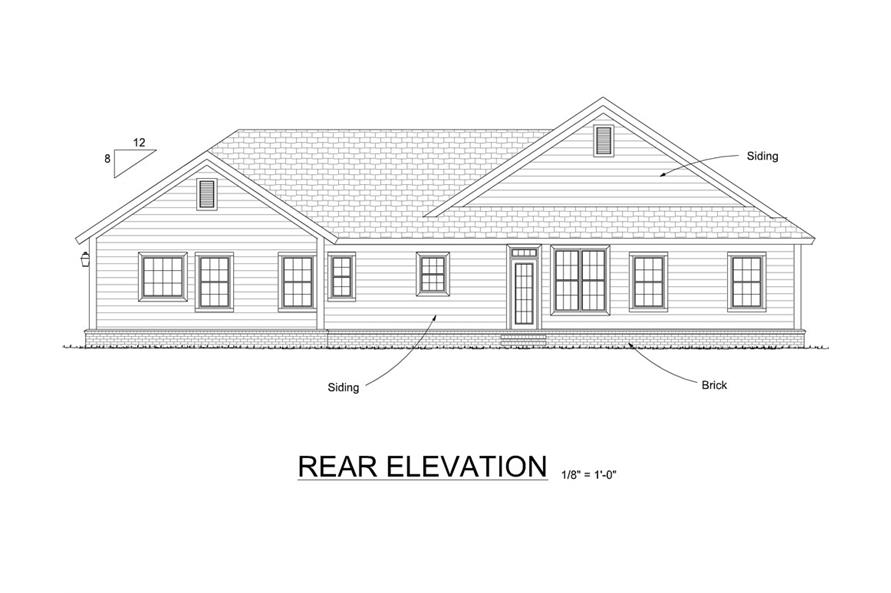

178-1304: Home Plan Rear Elevation
178-1304: Home Other Image-Front View

About Plan # 178-1304

About Plan # 178-1304

1966 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 67' 4" WIDTH 51' 0" DEPTH 2 GARAGE BAY

Enter this beautiful Ranch-style home plan from the front porch. As soon as you step into the house plan, you immediately feel at home and are right in the heart of the home's floor plan. The main living area has exquisite 11-foot-high ceilings. The living room is spacious and features a built-in fireplace. The open concept of the floor plan allows the living room, kitchen, dining room, and breakfast nook to all seamlessly flow together. The kitchen features a great L-shape design with an oversize island. The island has a built-in eating bar that reaches into the breakfast nook. From the nook, there is a door that leads to the rear of the home.

From the breakfast nook, you have access to a hallway that leads to three bedrooms, split from the master suite. These bedrooms feature 9-foot tall ceilings. Two bedrooms boast walk-in closets, while the other features two reach-in closets that flank a window seat. Two bedrooms share a common bathroom in the hallway, and one bedroom has a private bathroom.

On the opposite side of the floor plan you can enter a hallway that leads to the house plan's main-floor laundry room; two-car, side-entry garage; and master suite. Enter the suite through the spacious bedroom, which features a 9-foot-tall ceilings and access to the ensuite bathroom and large walk-in closet. The bathroom features dual sinks and a soaking tub.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

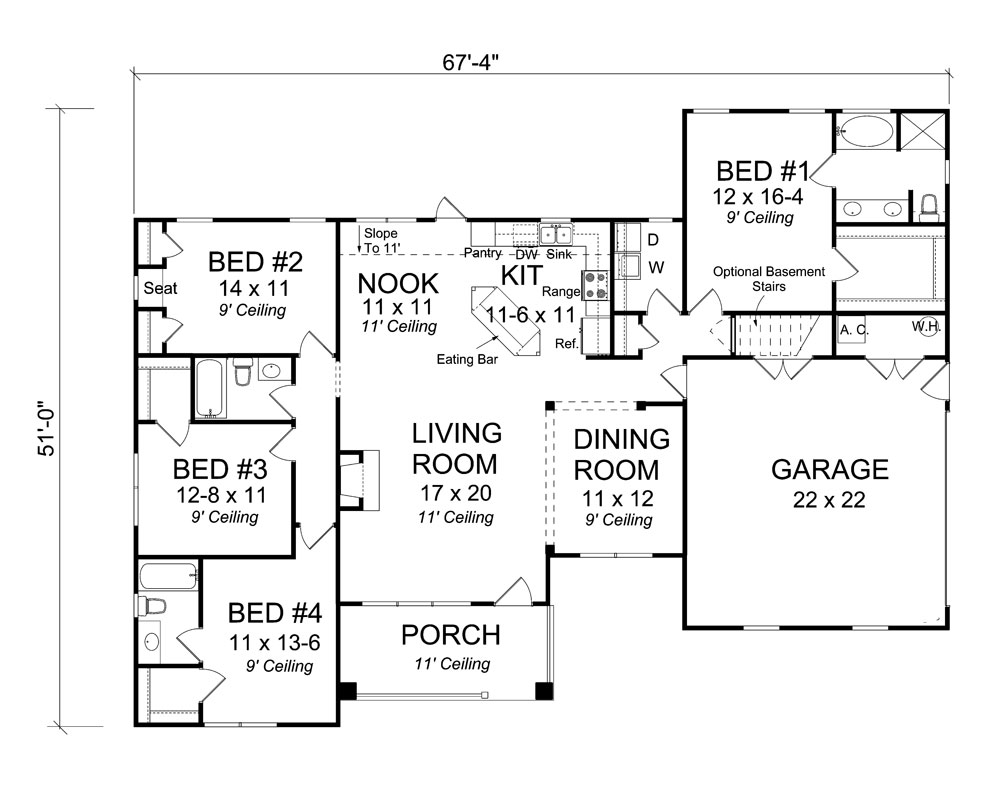

Home Plan: #178-1304 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #178-1304
