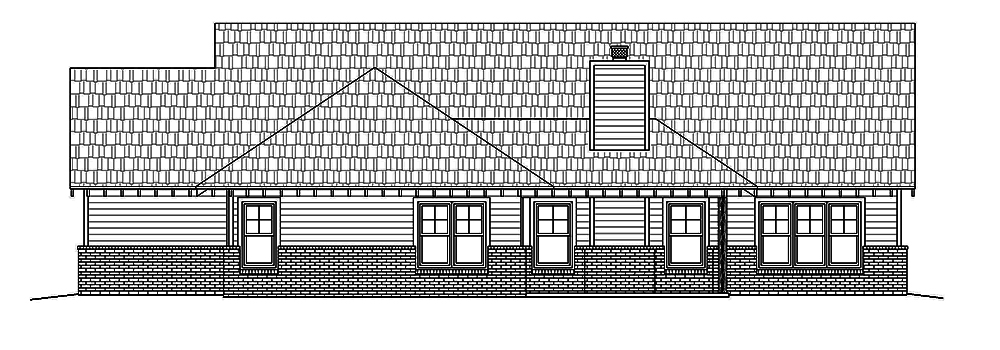

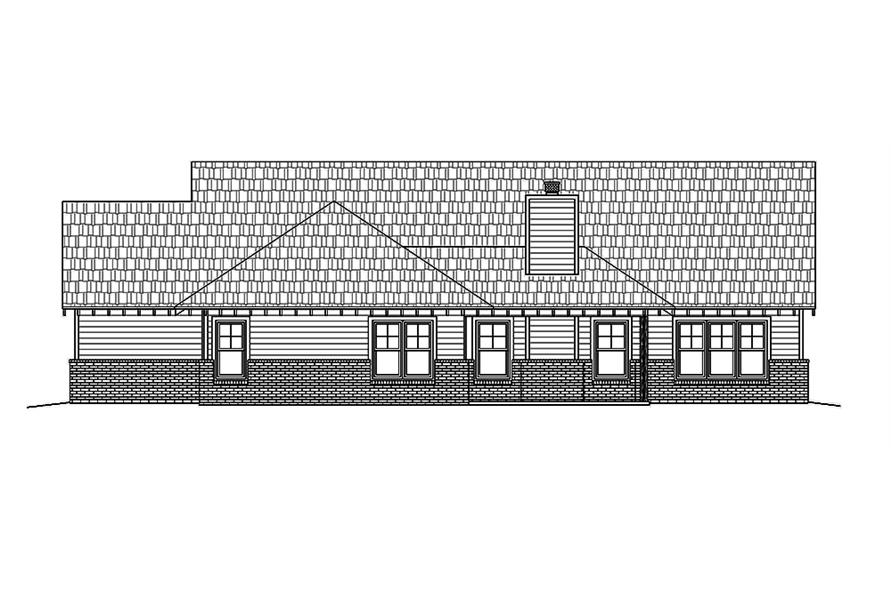

196-1017: Home Plan Rear Elevation

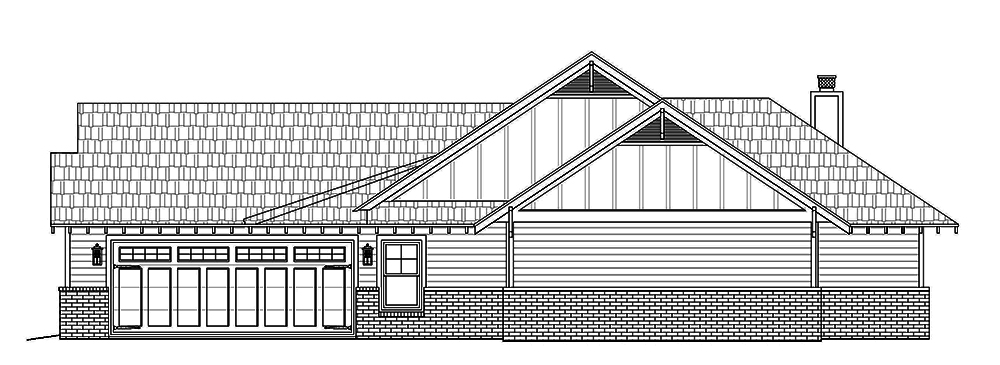

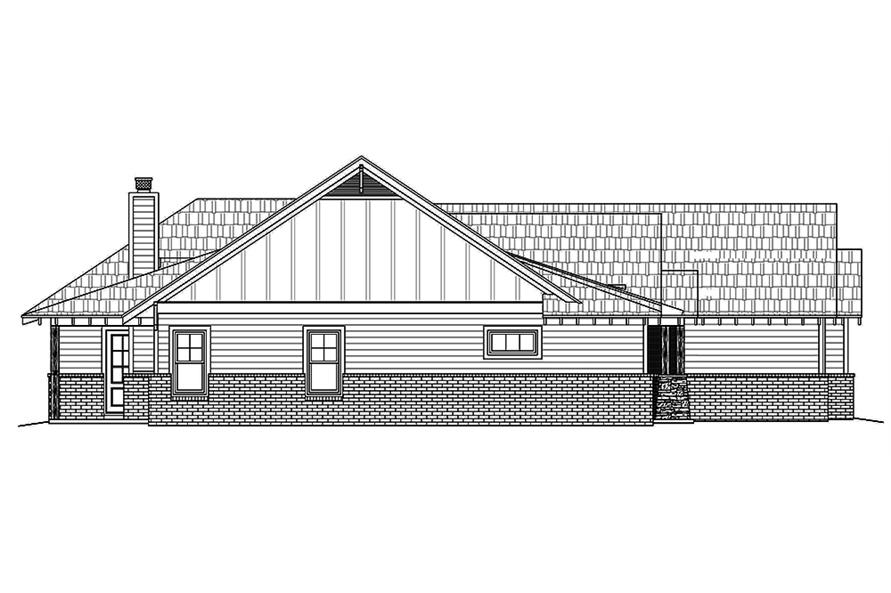

196-1017: Home Plan Right Elevation

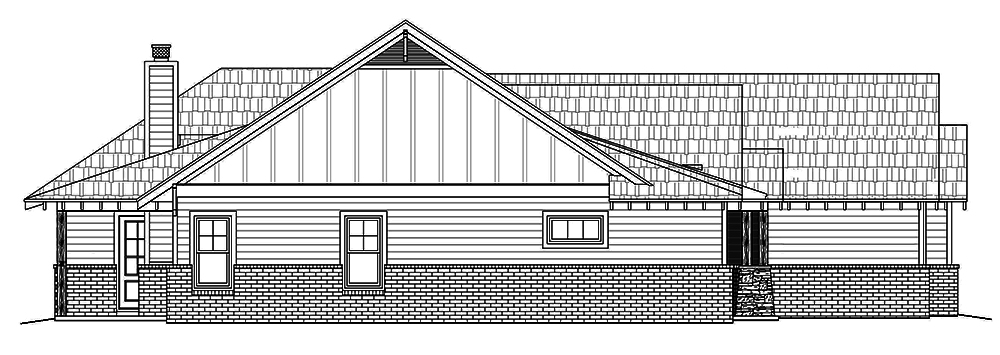

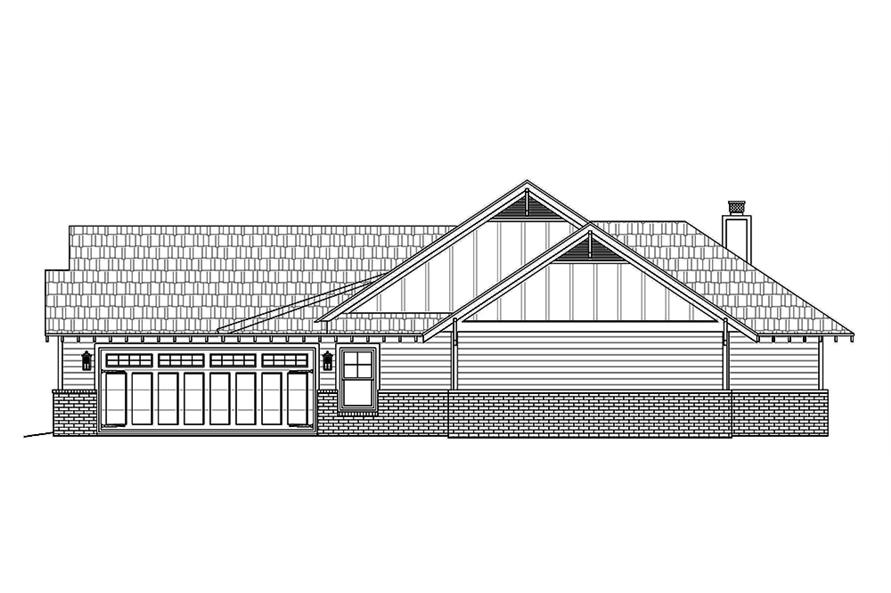

196-1017: Home Plan Left Elevation

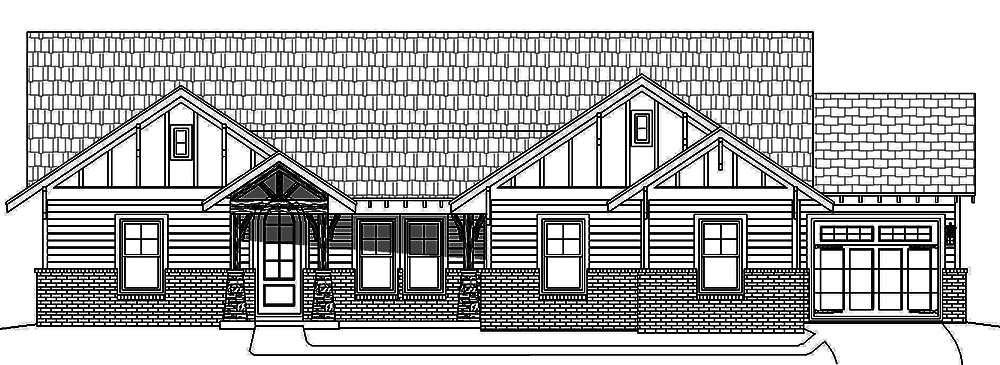

196-1017: Home Plan Front Elevation
3-Bedroom, 2100 Sq Ft Craftsman Home - Plan #196-1017 - Main Exterior
196-1017: Home Plan Rear Elevation
196-1017: Home Plan Right Elevation
196-1017: Home Plan Left Elevation
196-1017: Home Plan Front Elevation

About Plan # 196-1017

About Plan # 196-1017

2100 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 53' 8" WIDTH 64' 6" DEPTH 3 GARAGE BAY

This alluring Craftsman style home with Ranch characteristics (Plan #196-1017) has 2100 square feet of living space. The 1 story floor plan includes 3 bedrooms.

Each plan set includes the following:

a) Floor Plans: Floor plan drawings indicating dimensions for construction
b) Roof Plan: Drawings indicating roof slopes and unique conditions
c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
d) Building Sections: Drawings cut through important locations in the structure
e) Construction Details: Drawings showing specific construction of building elements at a large scale
f) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches, and outlets)
g) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
h) A building license: A single-use license for construction at one location only

Additional notes about engineering and building codes:

Our plans are designed to meet national building codes. We do not guarantee they will meet all local building requirements or building codes influenced by local geographic or climatic factors. It is the responsibility of the owner or builder to ensure these plans comply with city, county, municipal, and/or state/provincial building codes. Additionally, your plans will not be sealed or stamped by an engineer or architect. It is the owner’s (or builder’s) responsibility to hire a local professional to review and seal or stamp the plans if required by the building department. This must be handled by an engineer or architect licensed in the state/province where the plan is to be built.






Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

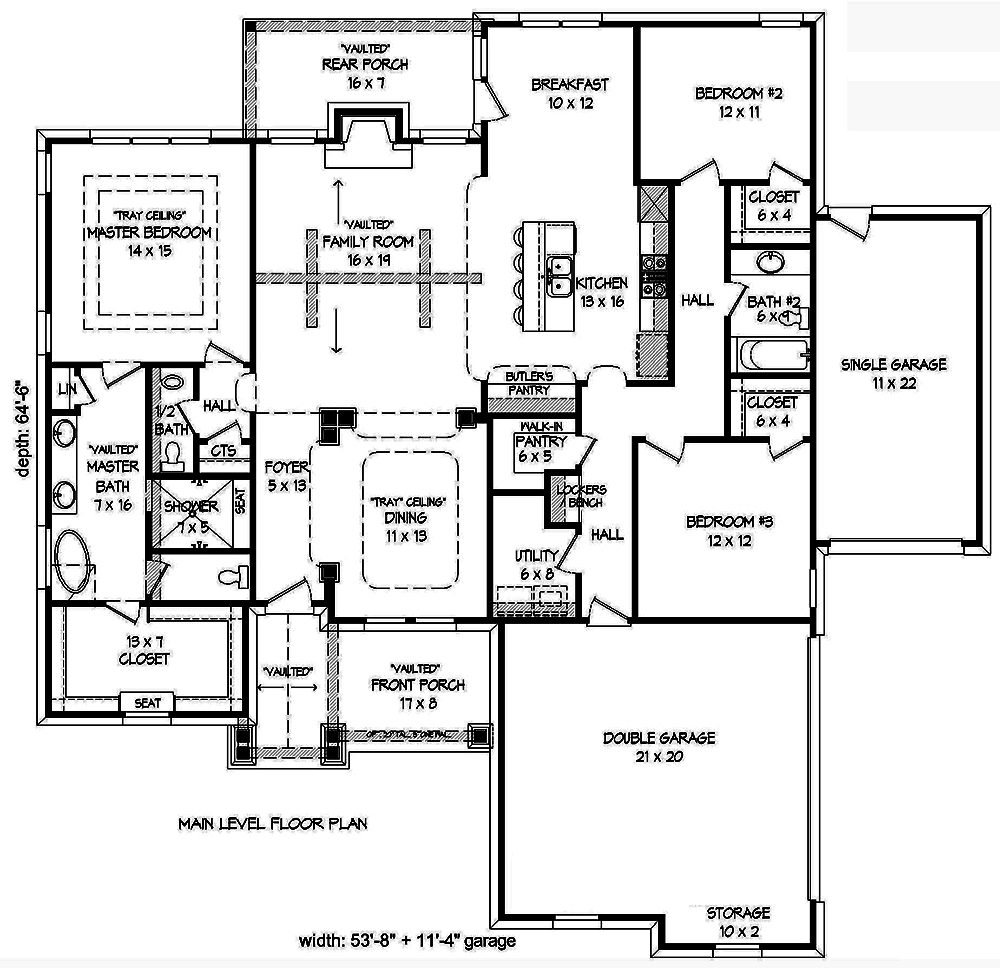

Home Plan: #196-1017 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #196-1017
Home Plan: #196-1017 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #196-1017
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 196-1017
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
3

Square Footage

Heated Sq Feet:
2100
Main Floor:
2100
Unfinished Sq Ft:
Garage :
770
Porch :
268

Dimensions

Width:
53' 8"
Depth:
64' 6"
Ridge Height:
21' 4"

Architectural Styles

Country
Ranch
Arts and Crafts
Craftsman
Transitional

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Family Room
Main Level Laundry
Split Bathroom
Storage
Vaulted Ceilings
Open Floor Plan

Garage Type

Attached Garage
Side Entry
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

NOTE FROM DESIGNER REGARDING PLAN PURCHASES: 80% of a 5 set purchase price can be applied to any PDF or CAD license upgrade. Additionally, 80% of PDF Study purchase price can be applied to any CAD or PDF license upgrade.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION
