This is a colored rendering for these arts and crafts home plans.

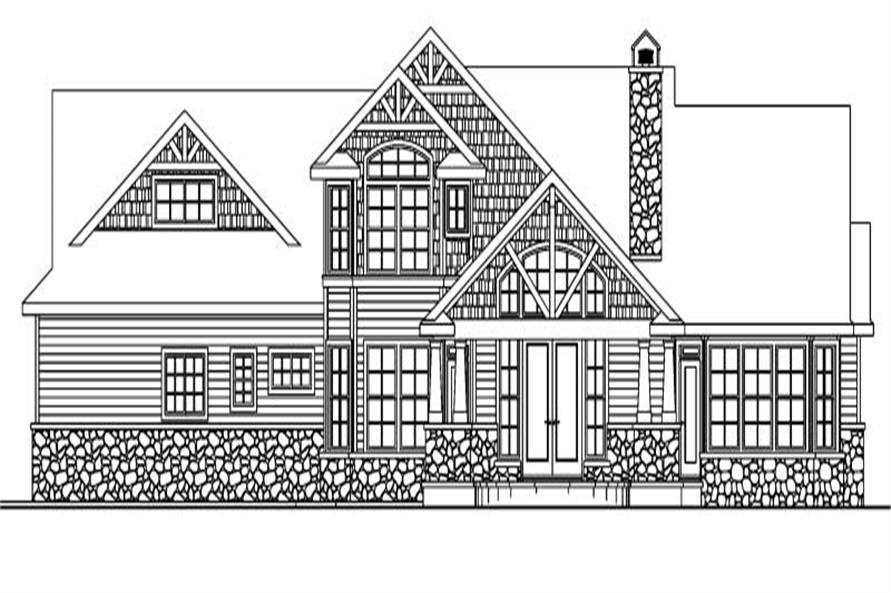

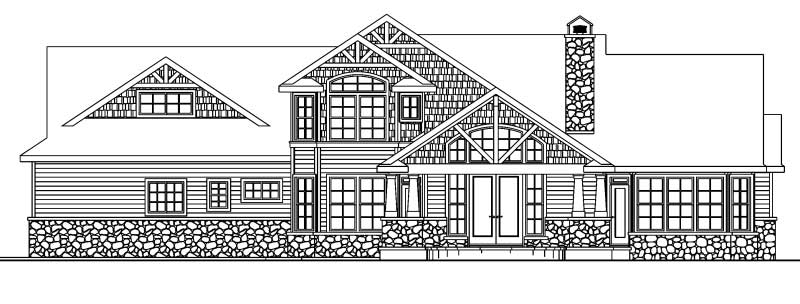

Home Plan Rear Elevation

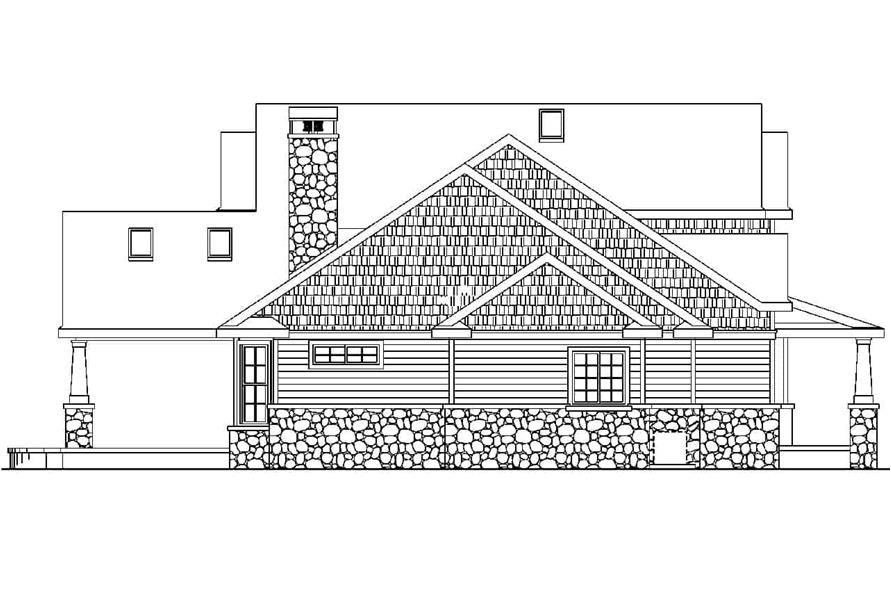

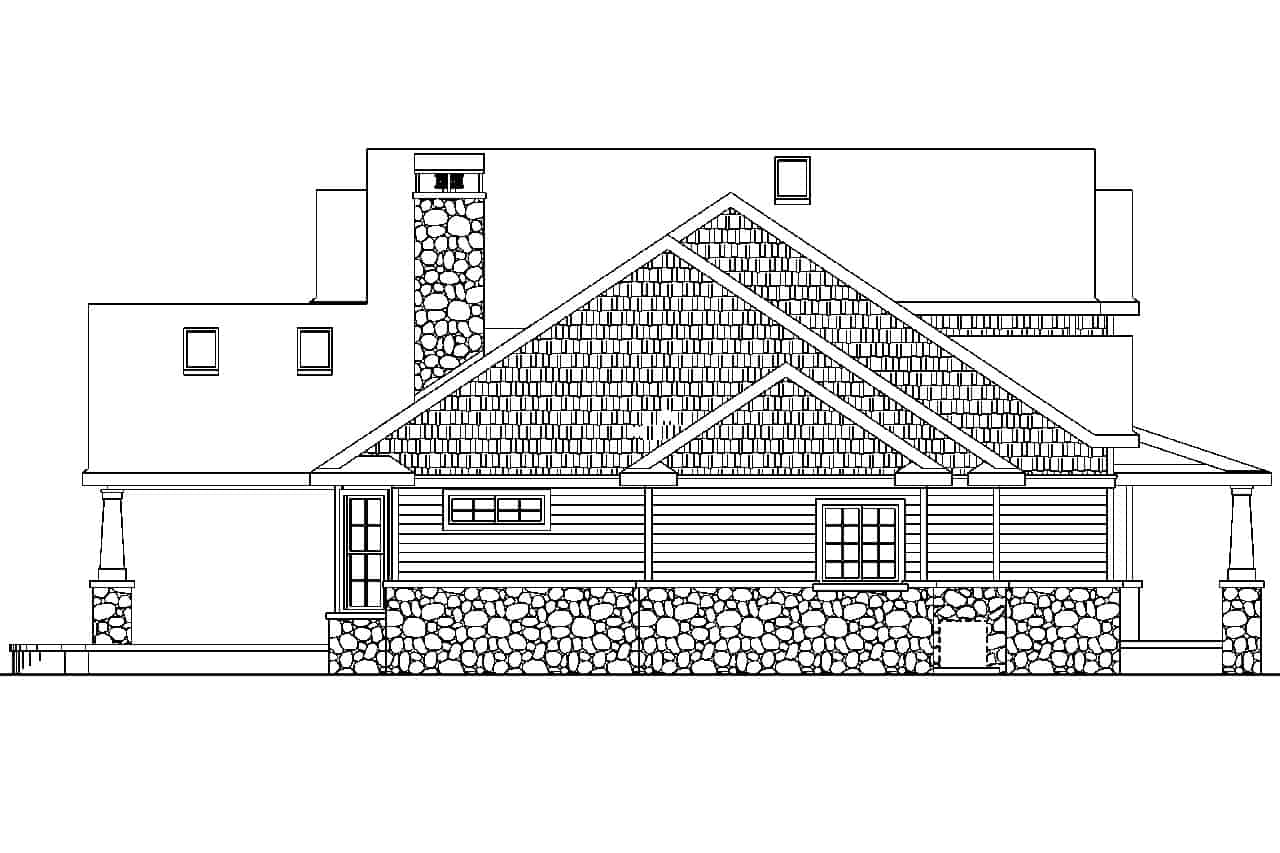

108-1062: Home Plan Left Elevation

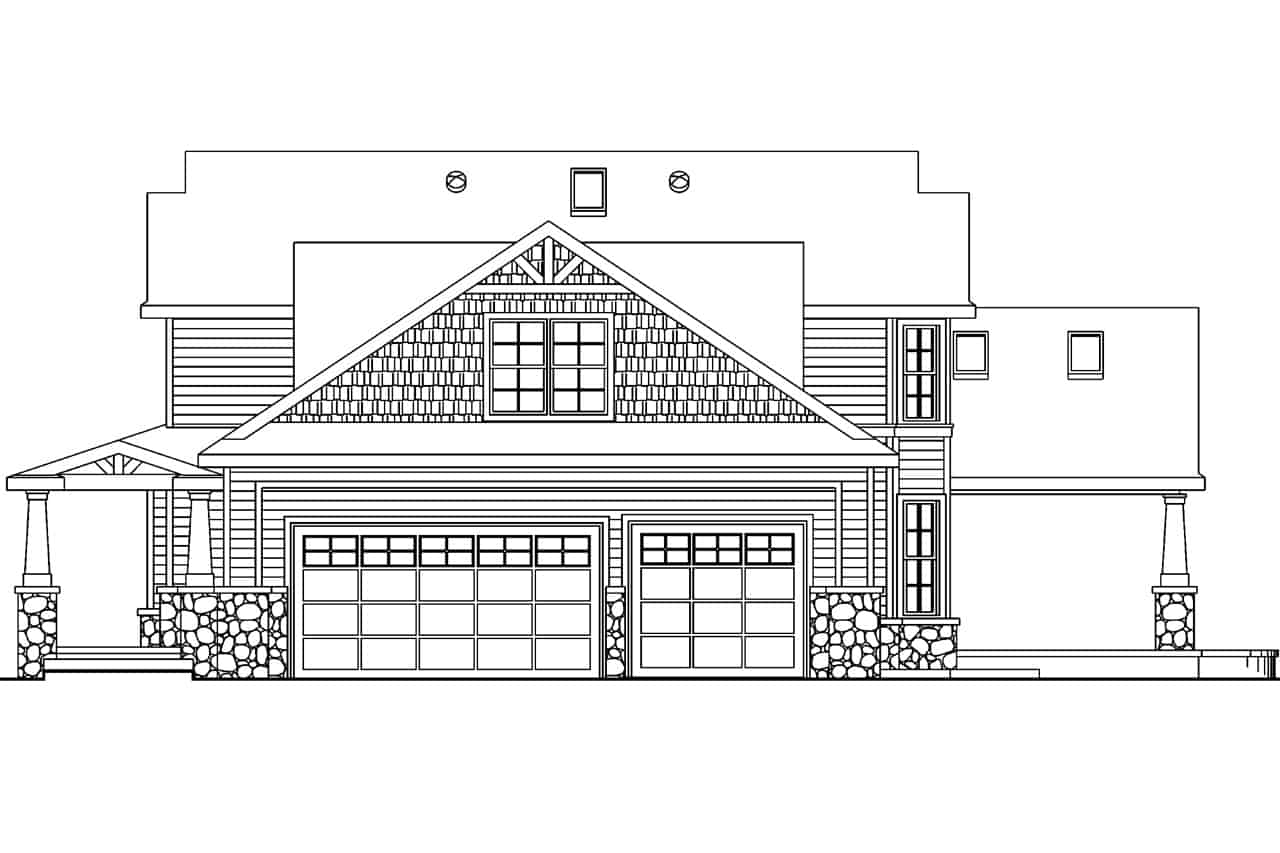

108-1062: Home Plan Right Elevation
3-Bedroom, 2674 Sq Ft Craftsman Home Plan - 108-1062 - Main Exterior
Home Plan Rear Elevation
108-1062: Home Plan Left Elevation
108-1062: Home Plan Right Elevation

About Plan # 108-1062

About Plan # 108-1062

2674 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 83' 0" WIDTH 60' 0" DEPTH 3 GARAGE BAY

Craftsman home plans. Stone veneer adds rustic ambiance to this craftsman home plan. A corner fireplace adds color to a vaulted great room that's open to the nook and kitchen. Glass fills most of the rear walls, and atrium doors access a vaulted, covered patio. A vaulted guest room/study is to the left of the two-story entry, a dining room on the right. Call it a Craftsman bungalow or a country cottage, the #108-1062 is a treat for the eyes. Stone veneer wainscoting and column supports create a rustic ambiance. Additional Craftsman details include the tapered porch columns, stick work gable accents, and multi-paned windows. A water feature is designed into the landscape wall to the right of the entry. Families that enjoy entertaining will particularly appreciate the four linked gathering spaces off of the two-story entry. The first access is through the dining room on the right, which connects with the kitchen and nook. Or head straight down the entry to the vaulted great room, which also opens to the kitchen and nook. In the great room, spacious cabinetry houses a home entertainment center that fills the wall next to a wood-burning fireplace. Glass fills most of a rear wall where sliding glass doors open onto a skylit, vaulted, covered patio. Natural light beams down through solar tubes into the large kitchen. A raised and curved eating bar fronts the kitchen sink, and more natural light washes in through the wide window bay at the rear. A pocket door opens into the mudroom and half bath, which connects to the three-car garage. An elegant tray ceiling sets the tone for the #108-1062's large, luxurious owners' suite. It boasts two walk-in closets, one larger than the other, and a lavishly appointed bathroom with twin lavatories, spa tub, oversized shower and private toilet. Two vaulted bedrooms, a bathroom, and a large, windowed bonus room are upstairs. Another vaulted room with a private bathroom, is downstairs and to the left of the entry. This space could be used as a guest room, home office, or study.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

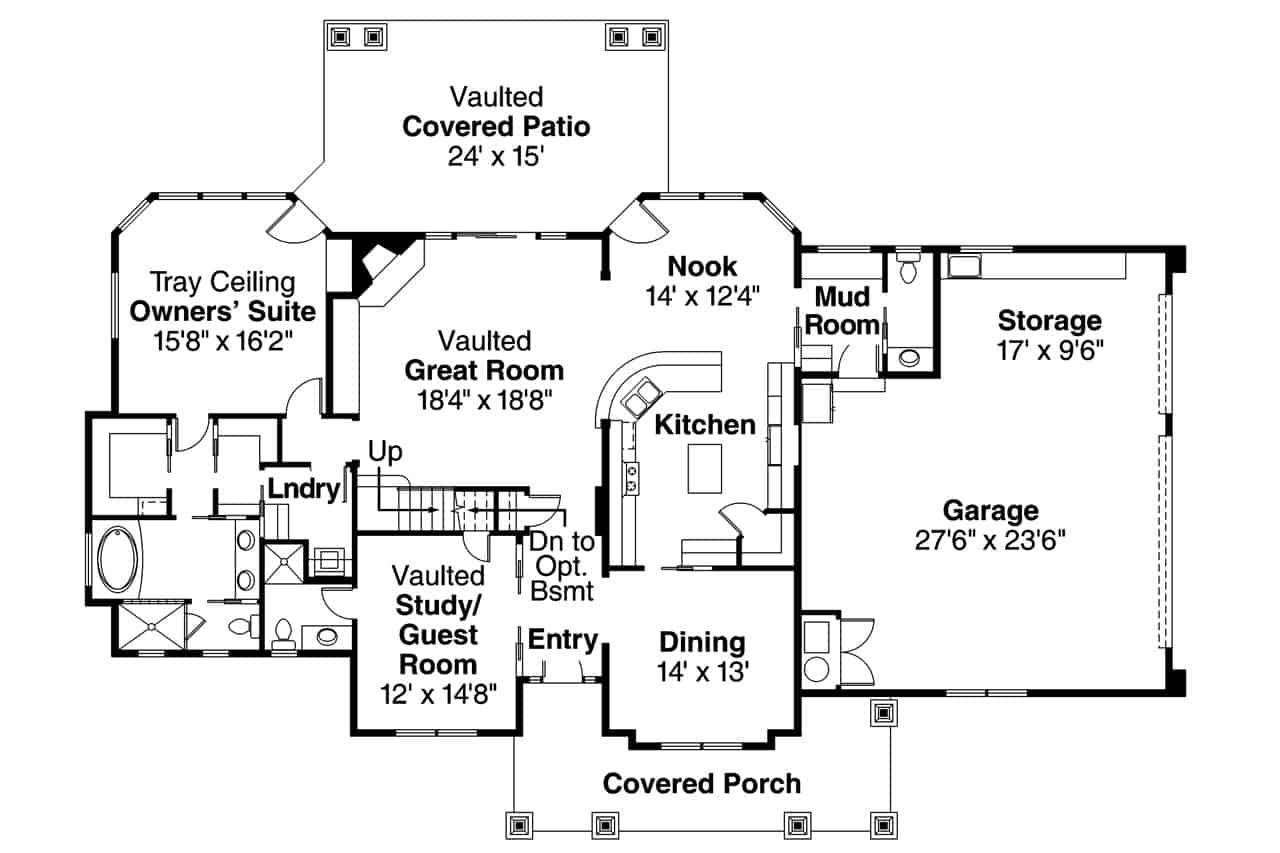

Home Plan: #108-1062 Floor Plan First Story - first story Main Level of Craftsman Plan #108-1062

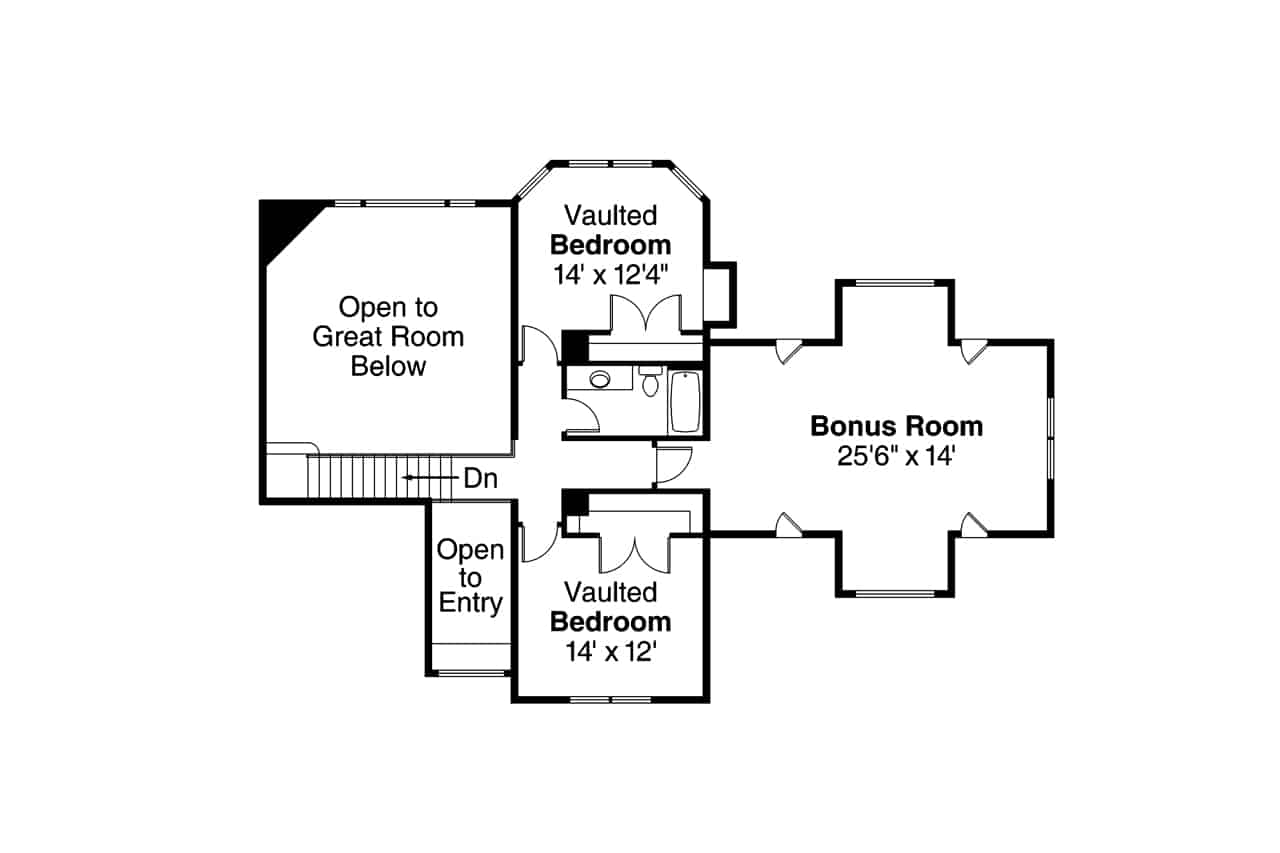

#108-1062 Floor Plan Second Story - second story Upper Level of Craftsman Plan #108-1062
Home Plan: #108-1062 Floor Plan First Story - first story Main Level of Craftsman Plan #108-1062
#108-1062 Floor Plan Second Story - second story Upper Level of Craftsman Plan #108-1062
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1062
Floors:
2
Bedrooms:
3
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
2674
Main Floor:
2066
Upper Floor:
608
Unfinished Sq Ft:
Bonus Room:
486
Garage :
847

Dimensions

Width:
83' 0"
Depth:
60' 0"
Ridge Height:
27' 9"

Architectural Styles

Arts and Crafts
Traditional
Craftsman

Exterior Wall Material

Rock/Stone
Wood Siding
Shakes

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Special Feature

Fireplace
Dining Room
Guest Room
Mud Room
Bonus Room
Main Level Laundry
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
