| 2836 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 1 HALF BATH |
| 1 FLOOR | 77' 2" WIDTH | 71' 10" DEPTH | 3 GARAGE BAY |
This lovely Ranch style home with European influences (House Plan #169-1053) has 2836 square feet of living space. The 1-story floor plan includes 3 bedrooms.
Each plan set includes the following:
- General notes and specifications

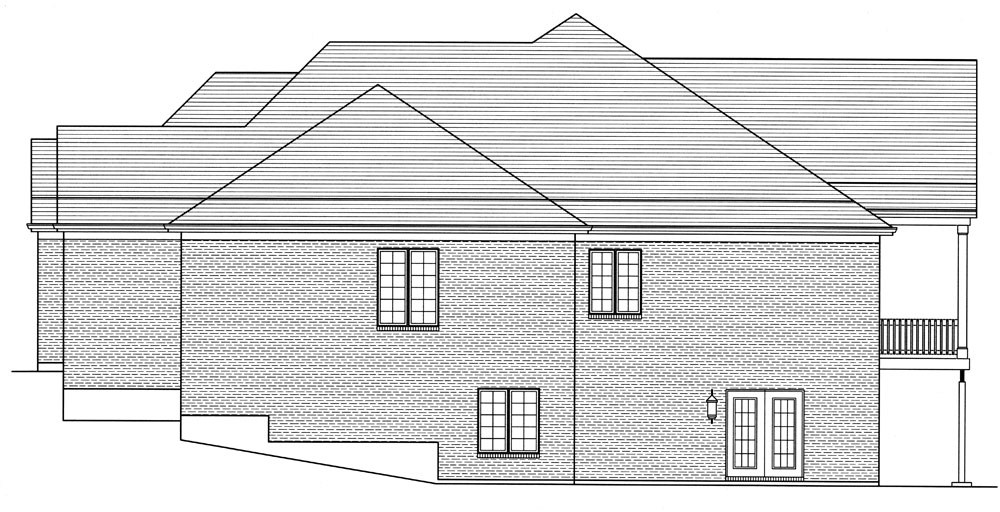

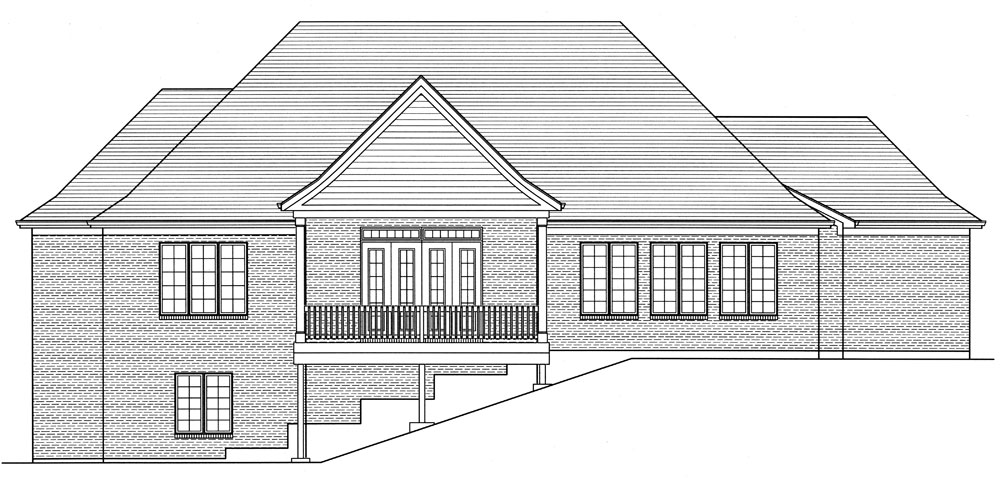

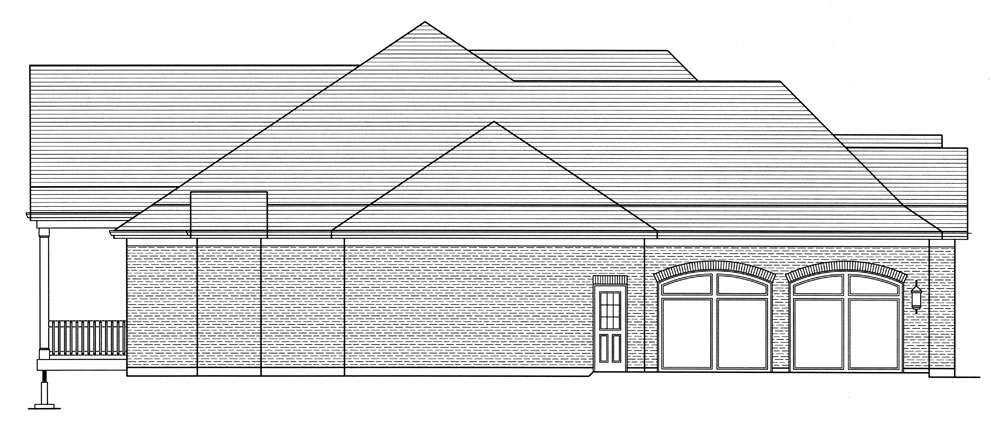

- Front, rear and side elevations (1/4" scale)

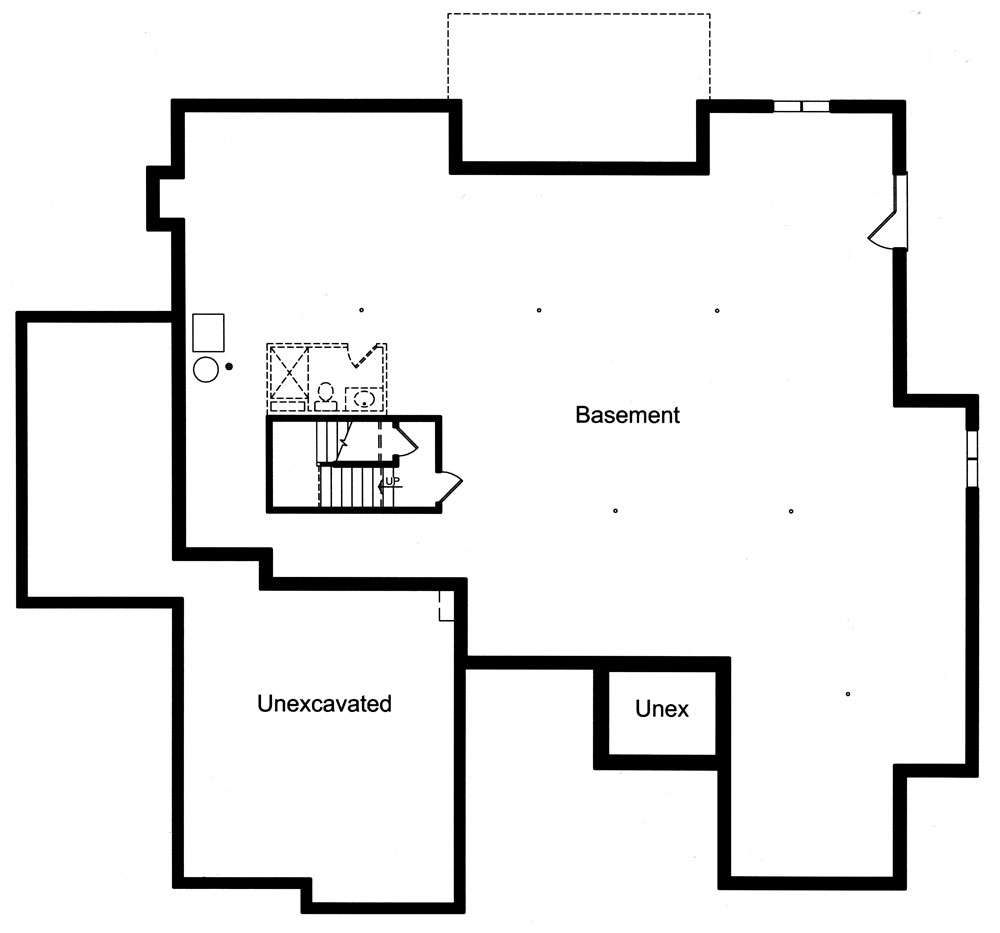

- Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
- Reinforced foundation and footing details
- First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
- Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction method
- Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
