4-Bedroom, 3337 Sq Ft Mediterranean Plan with Main Floor Master
Related House Plans
| 3337 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 75' 6" WIDTH | 97' 2" DEPTH | 3 GARAGE BAY |
With its soft arches and inset stone details, the Bermuda II possesses an attractive curb appeal. The mitered glass in the formal living room and casual dinette in this home plan offer breathtaking views of the lanai area and beyond. Generously sharing its calming glow with the living room and island kitchen, the two-sided fireplace creates an "at home" atmosphere. The large family room of this Mediterranean home plan is perfect for family relaxation. With its oversized sitting area, walk-in closets, shower, dual sinks and soaking tub, the master suite offers the ultimate privacy for the owner. Providing an enormous space for entertaining and outdoor activities, the covered and screened lanai can be accessed through the master suite and the vanishing zero-corner sliders in the family room. A large 3 car side-entry garage complements the superb amenities offered by the Bermuda II home plan.
Each plan set includes the following:

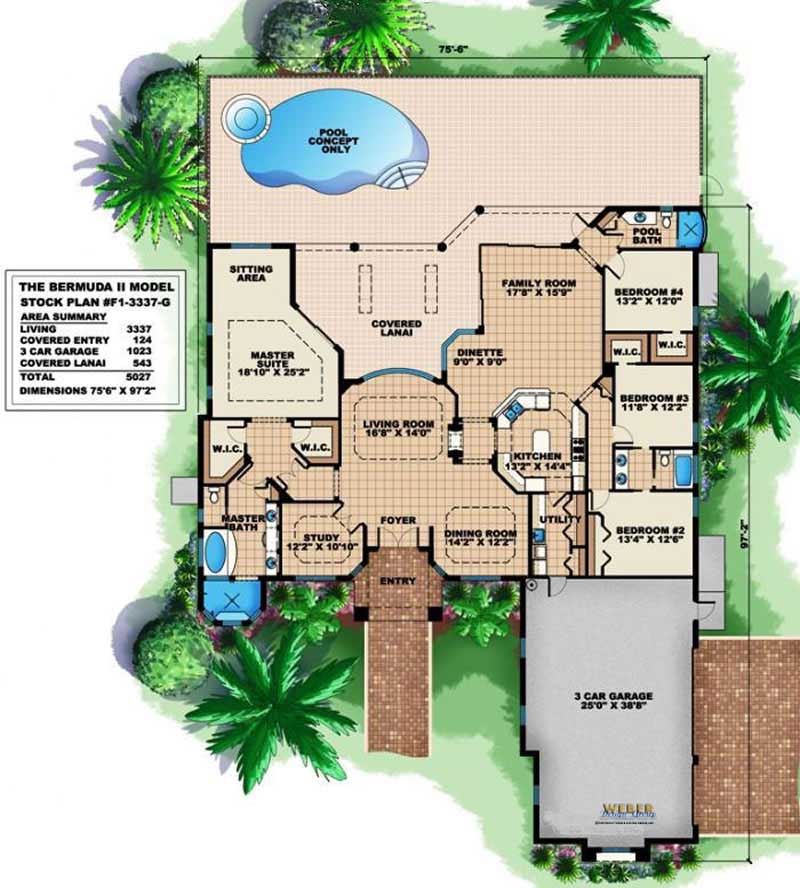

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
