4-Bedroom, 4173 Sq Ft Mediterranean Plan with Nook/Breakfast Area
| 4173 SQUARE FEET | 4 BEDROOMS | 1 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 131' 11" WIDTH | 120' 10" DEPTH | 3 GARAGE BAY |
The Magnolia house plan, featuring a stately portico, effortlessly depicts the finest in luxury living. The enormous outdoor living spaces in this house plan offer an abundance of amenities including pool with a spa, outdoor kitchen, pampering sauna and a relaxing fireplace. This area is conveniently accessed through the living room, family room, a versatile recreation room and the master suite of this floor plan even offers a large storage space for your pool's belongings. Open with volume ceilings, yet offering defined private spaces, this home plan was designed with elegant everyday living in mind. A welcoming vestibule, connecting the formal living room and master suite, leads the way to the owner's private, personal retreat. Imagine relaxing in the centerpiece Roman tub! The master suite also features walk in closets, dual sinks and an enormous walk around shower. The island kitchen, with breakfast nook and eating bar, can easily service the formal dining room by utilizing butler's pantry. It's true the Magnolia house plan welcomes you home in style!
Each plan set includes the following:
- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review

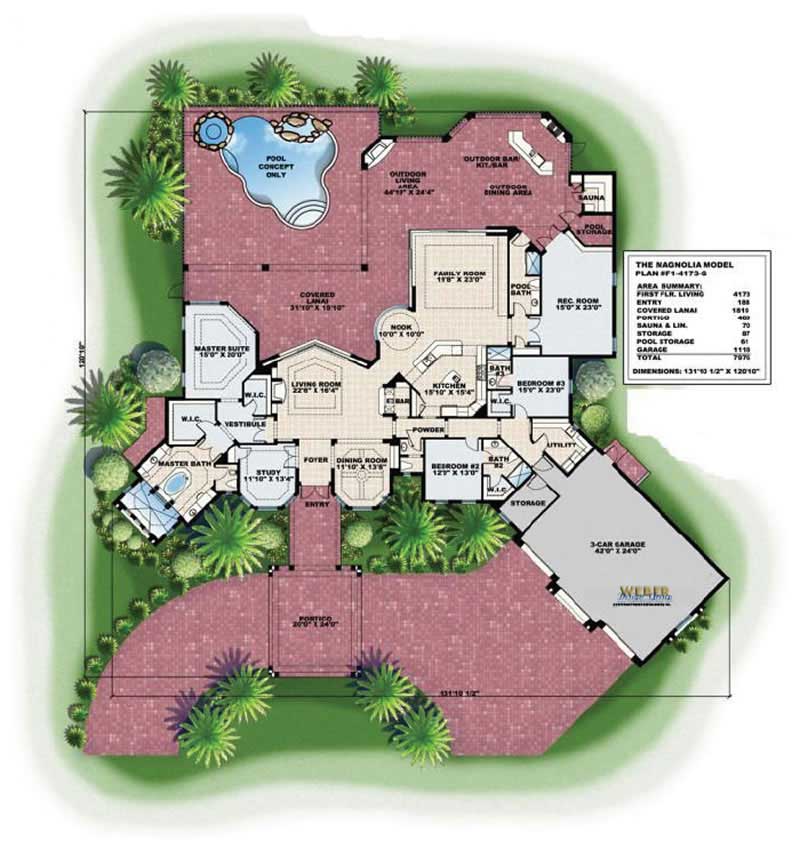

FLOOR PLANS Flip Images
