Name: 5-Bedroom, 5204 Sq Ft Luxury Plan with Peninsula/Eating Bar
Brand: The Plan Collection
SKU: 107-1029
Price: 1700 USD
Availability: InStock

About House Plan #107-1029

5204

Sq Ft

5

Bedrooms

5

Baths

0

Half Baths

3

Cars

2

Stories

65' 2'

Width

78

Depth

From$1700What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

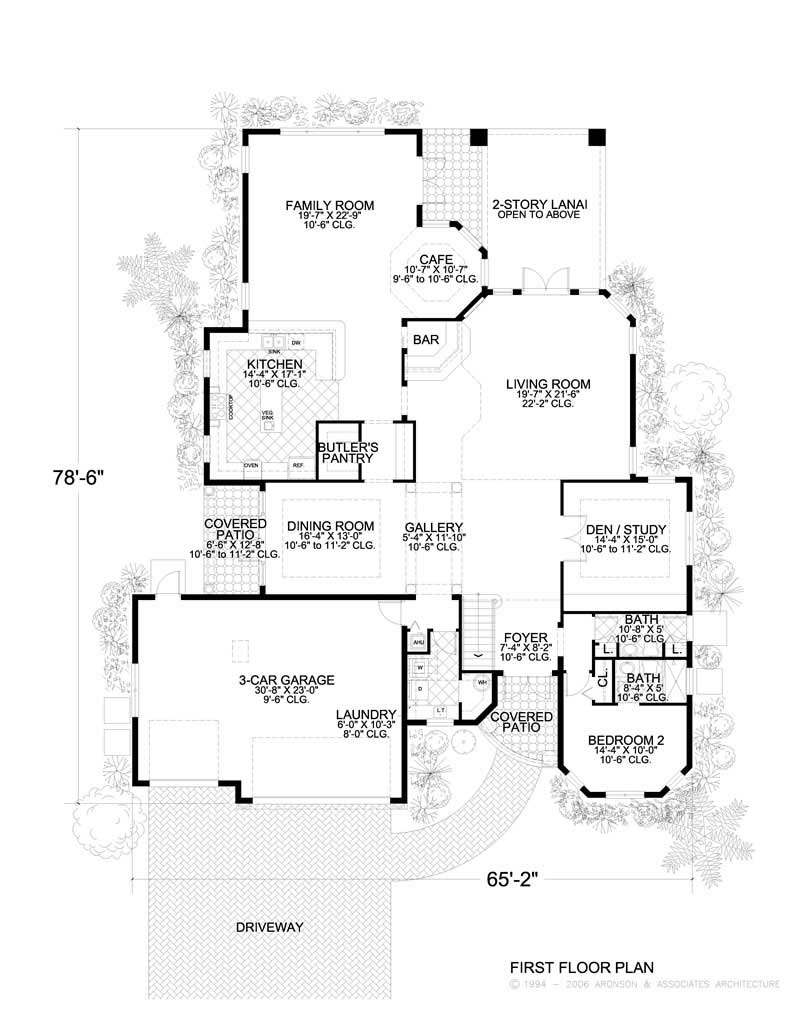

Main Floor Plan

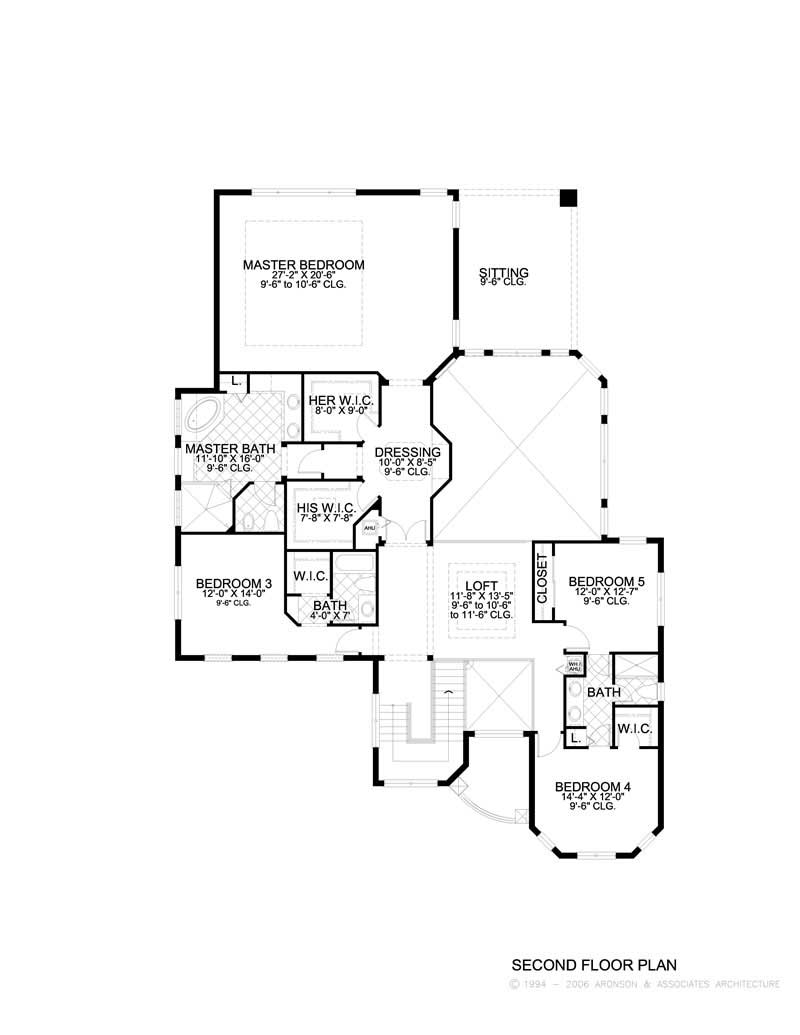

Second Floor Plan

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

This Luxury House Plan is a Spanish / Mediterranean-style waterfront manor that features five bedrooms, four and one-half bathrooms, a cabana bath, and three-car garage. This house plan offers an enormous amount of living space. Columns and arches exude "majesty" in its appearance both inside and out. The covered balconies and a lanai add to the amenities. A study/den provides a cozy retreat for simple solitude of intimate place for entertaining. The covered entrance displays paneled, double front doors with transom accent. A "dream"...

Home Details

Summary

Plan #:107-1029

Floors:2

Bedrooms:5

Full Baths:5

Half Baths:0

Garage:

Square Footage

Heated Area:5204 Sq. Ft.

First Floor:2814 Sq. Ft.

Second Floor:2390 Sq. Ft.

Unheated Area:

Garage:734 Sq. Ft.

Dimensions

Width:65' 2''

Depth:78' 6''

Ridge Height:32'4' 0''

Architectural Styles

Mediterranean Luxury Spanish Concrete Block/ ICF Design

Exterior Wall Material

Stucco

Roofing Type

Hip

Roof Pitch

5/12

Special Feature

Dining RoomHome OfficeFamily RoomMain Level LaundryLibraryColor PhotosLoftDen

Garage Type

Attached GarageFront Entry

Exterior Wall Framing

Concrete

Kitchen Features

Kitchen IslandButler's PantryNook/Breakfast Area

Porches and Exterior Features

Covered Front PorchCovered Rear PorchCovered Lanai

Master Suite Features

Master BathroomWalk In ClosetSitting AreaSecond Floor Master

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Floor plan

Kitchen & Bath layout

Exterior elevations

Sections

Structural plans

Foundation plan

Roof plan

Mechanical layout

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
