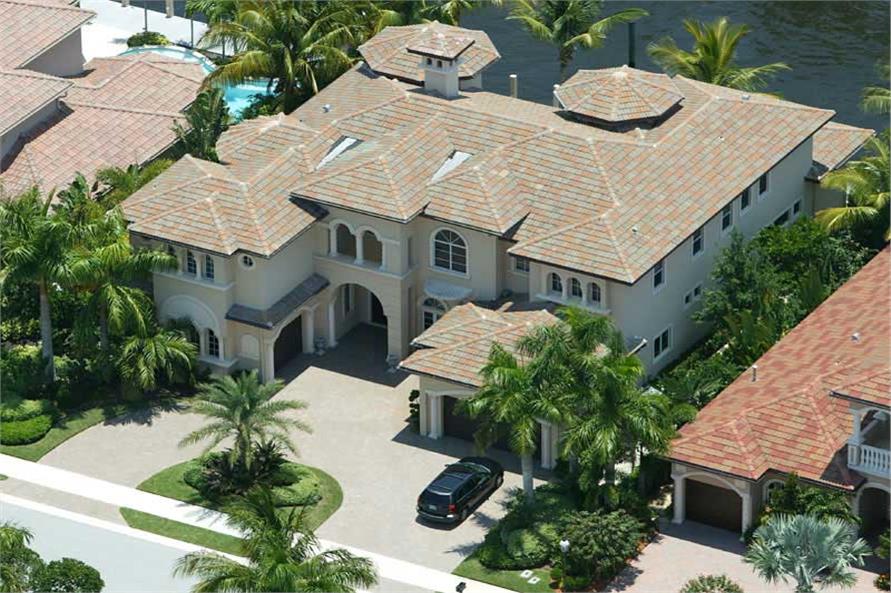

Aerial View #1
Aerial View #2
Aerial View #3
Aerial View #4
Aerial View #5

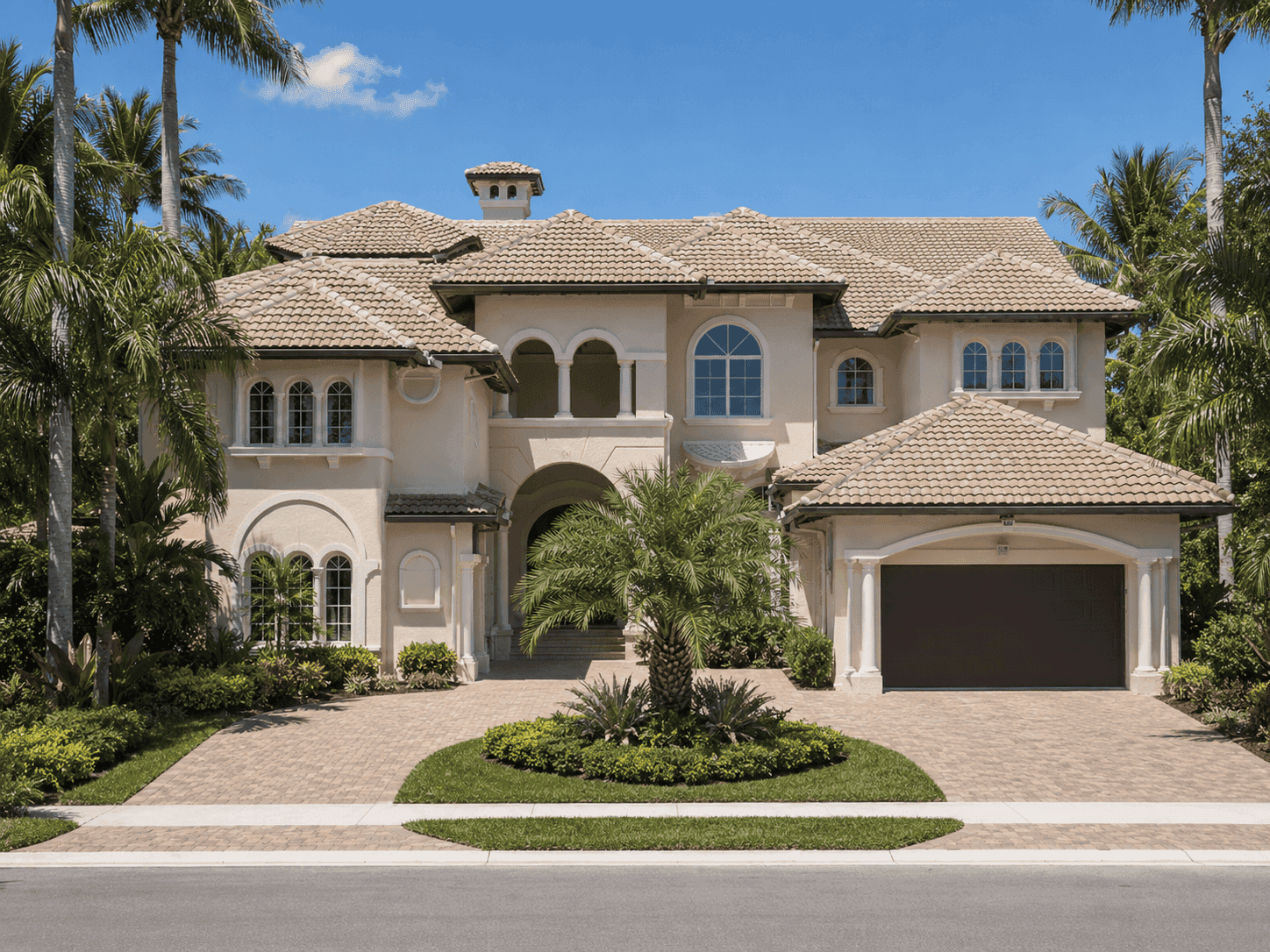

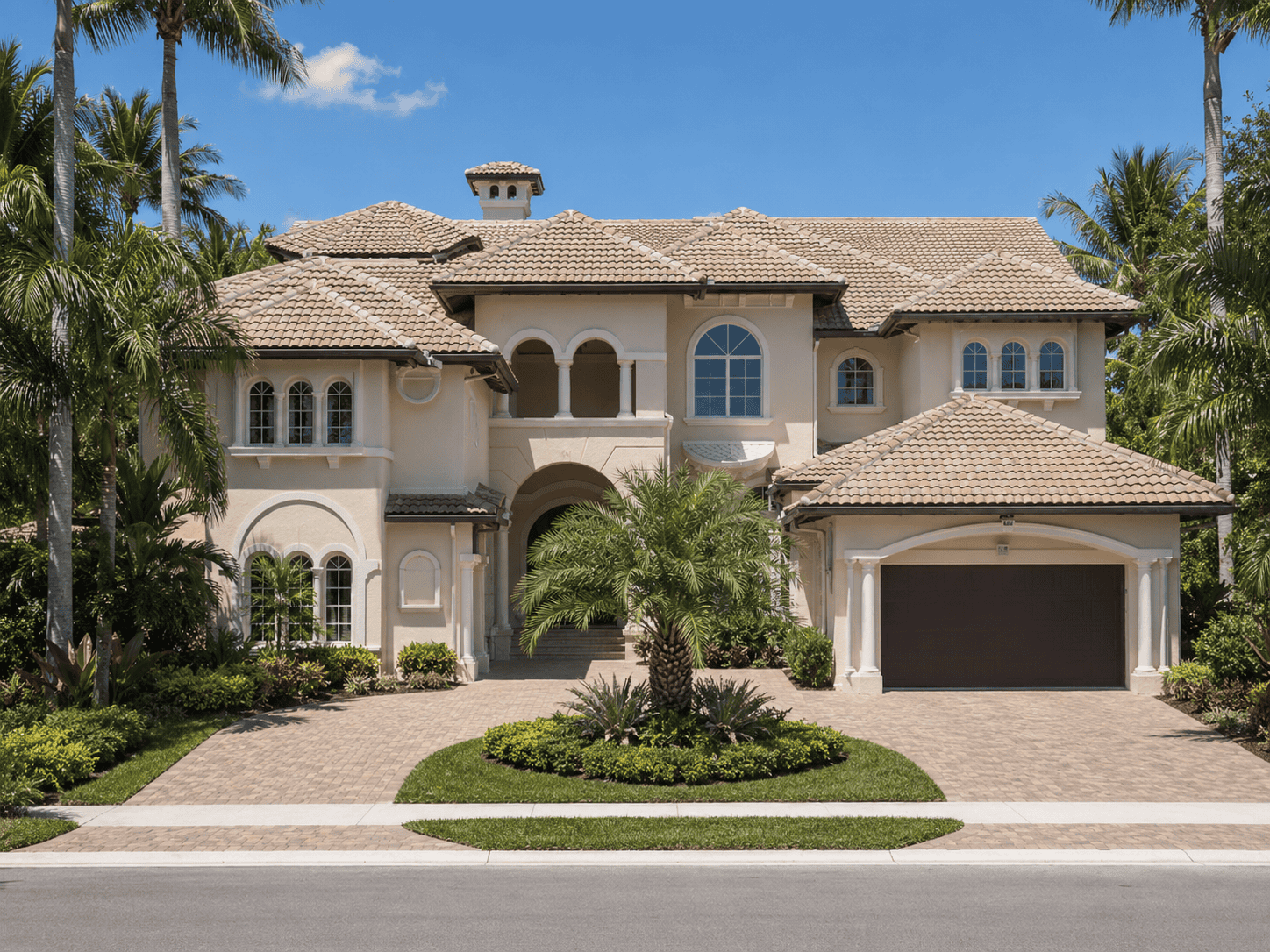

5-Bedroom, 5547 Sq Ft Luxury Home Plan - 107-1009 - Main Exterior

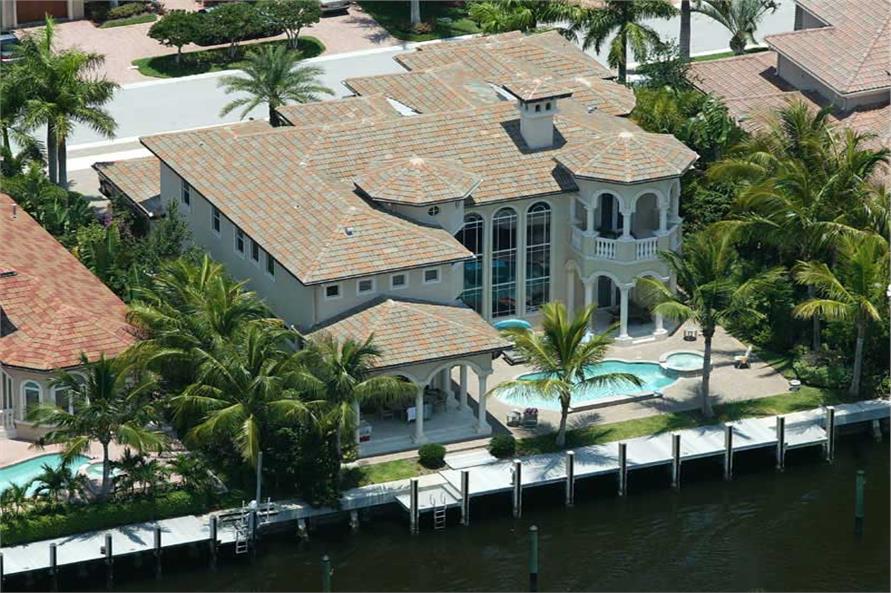

Aerial View #1

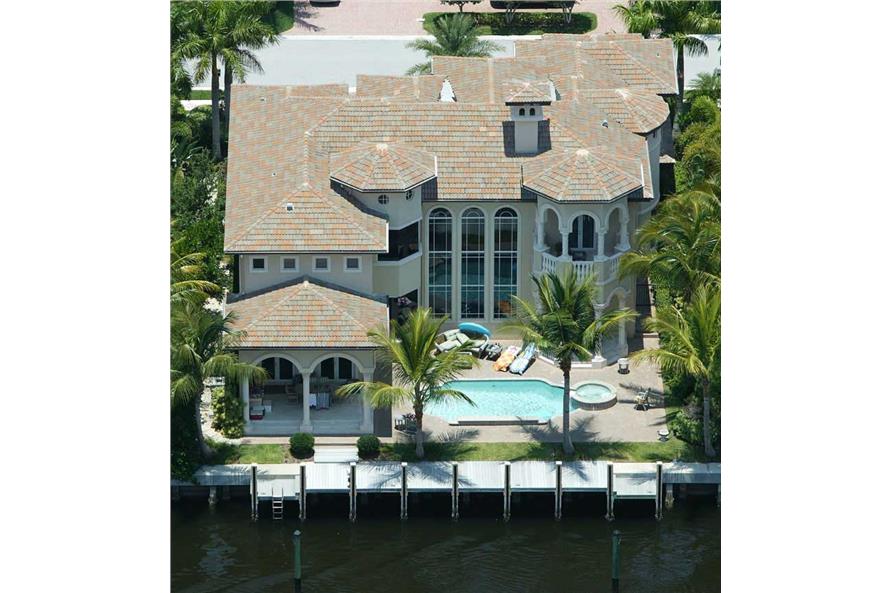

Aerial View #2

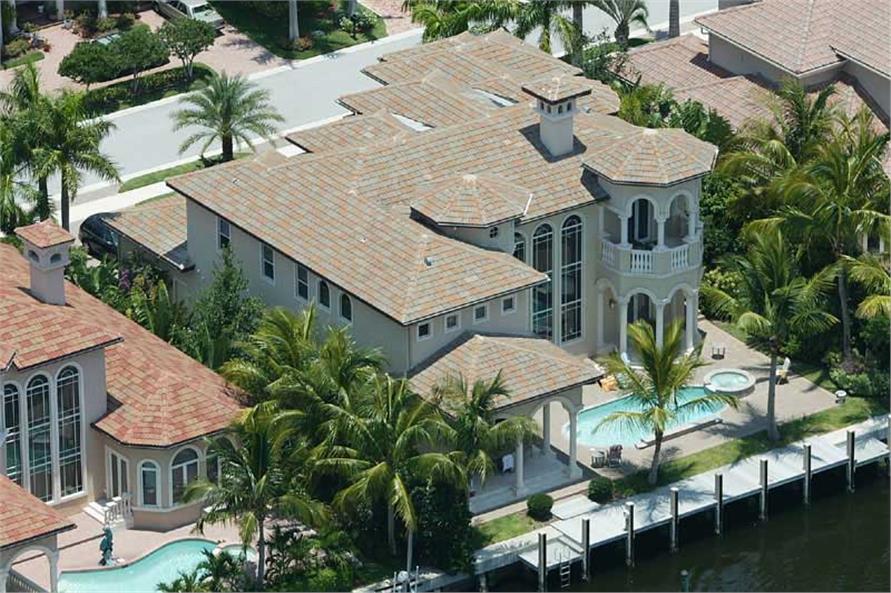

Aerial View #3

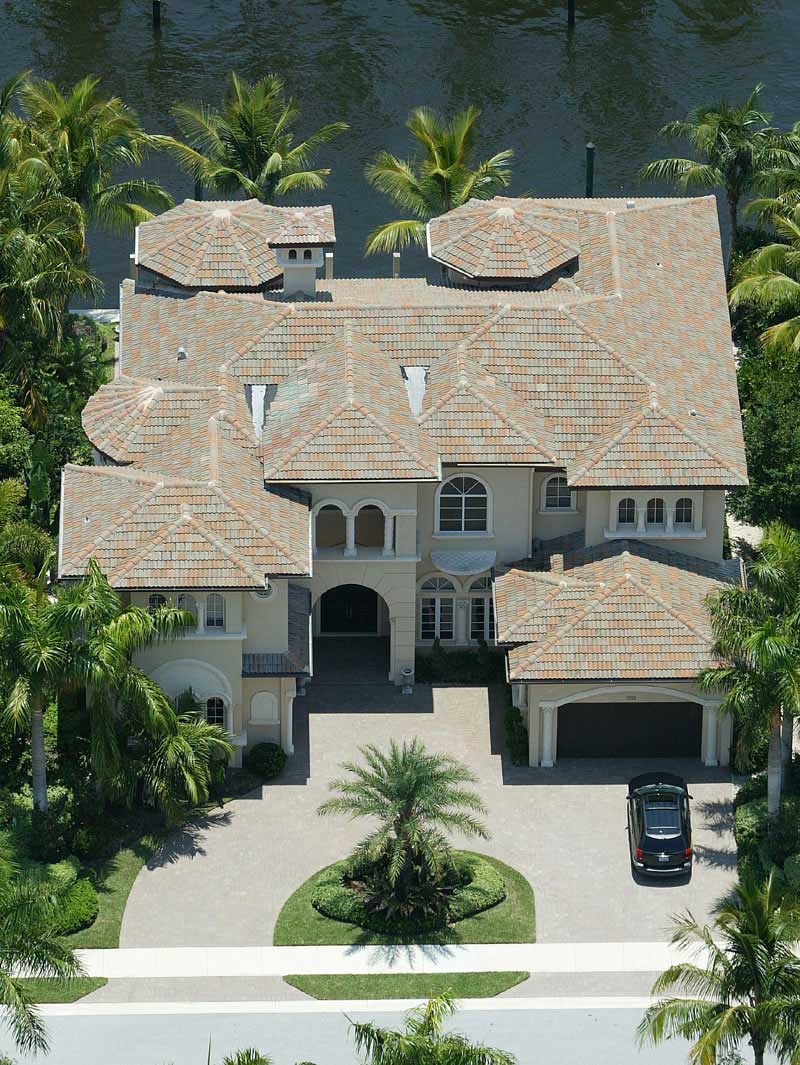

Aerial View #4

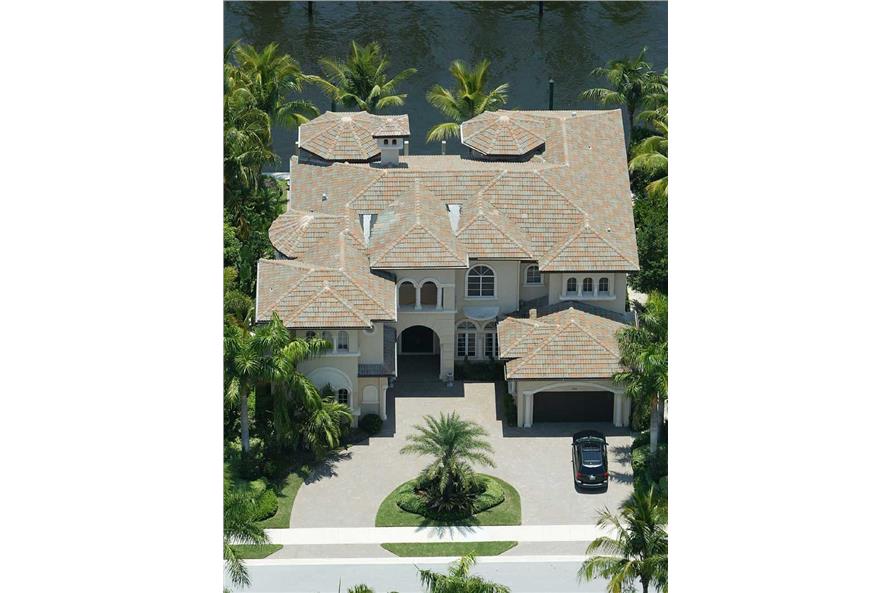

Aerial View #5

About Plan # 107-1009

About Plan # 107-1009

5547 SQUARE FEET 5 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 69' 8" WIDTH 89' 2" DEPTH 2 GARAGE BAY
This beautiful, two-story, Spanish-style waterfront house plan features five bedrooms, four and one-half bathrooms, a cabana bath, two-car and a one-car garage, a covered entrance with displaying an eight-foot high French door and arched transom. Columns and arches make a majestic appearance. The interior and exterior of this home is truly luxurious. The first story provides a large living room with high ceiling and fireplace. A family room opens to a covered patio with summer kitchen. The designer island kitchen features an eating bar, cafe and pantry. The formal dining room has an arched opening, columns and raised coffered ceiling. A library provides a cozy retreat area to relax or entertain. A luxurious master suite on the second story provides generous areas and enormous walk-in closets, tray ceilings and a majestic master bathroom opening onto a private, covered balcony. Check out this Luxury House Plans amazing aerial photos!

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

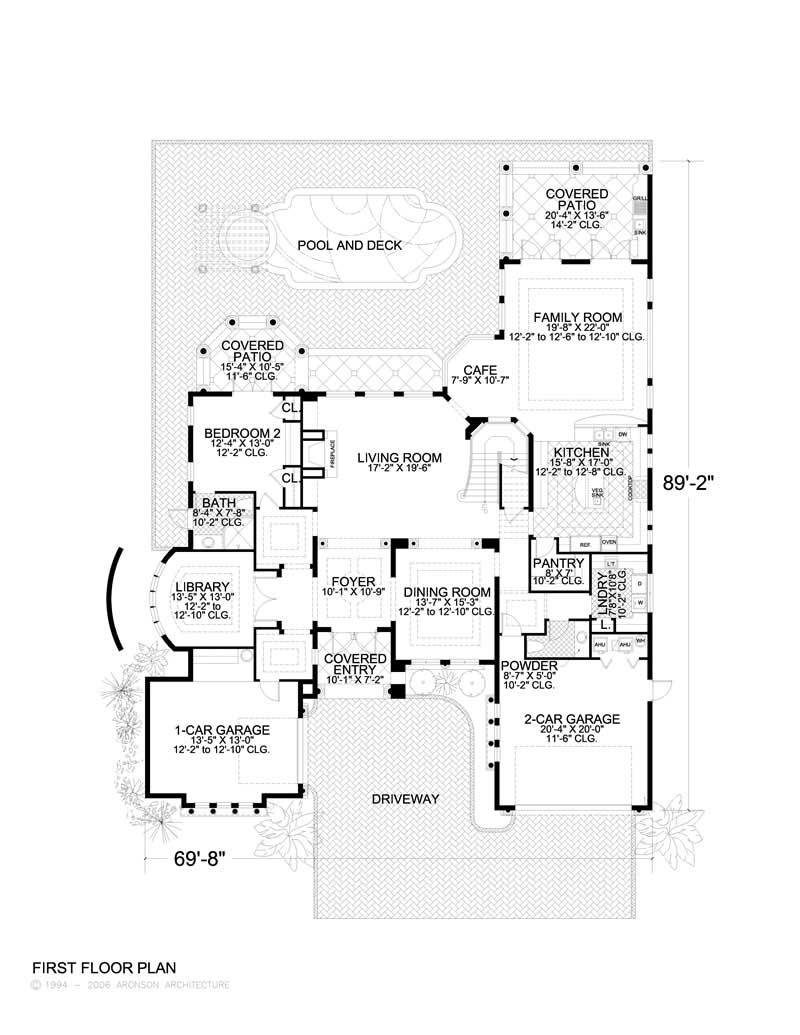

Home Plan: #107-1009 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1009

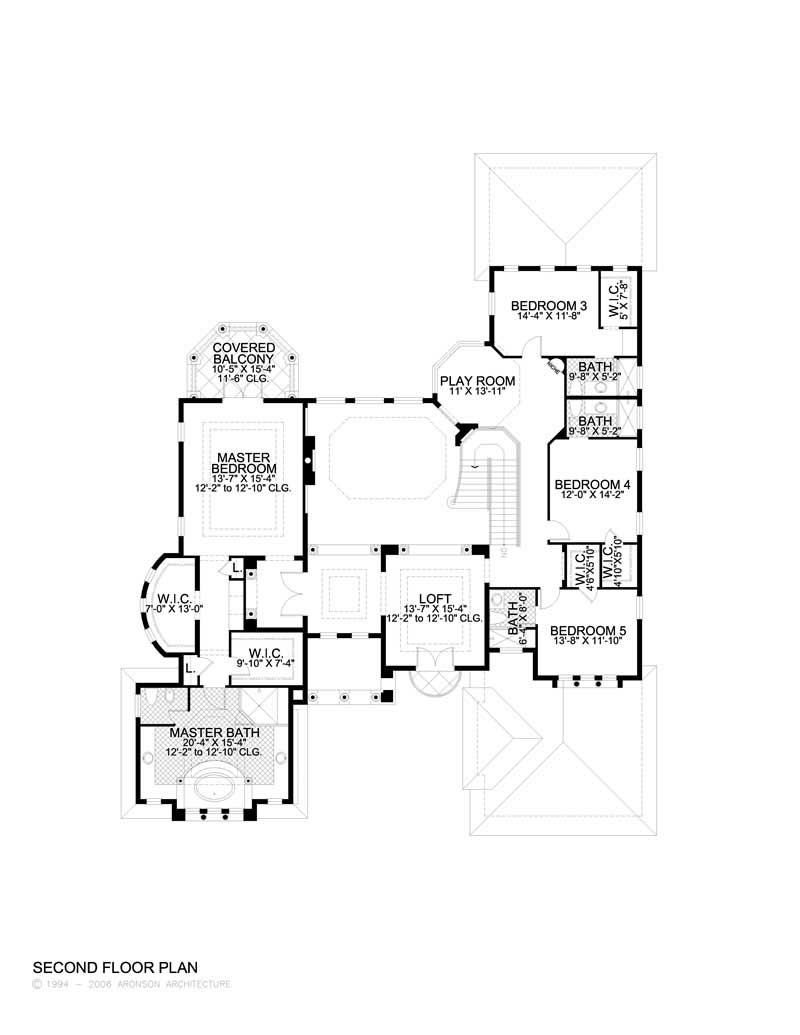

#107-1009 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1009
Home Plan: #107-1009 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1009
#107-1009 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1009
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1009
Floors:
2
Bedrooms:
5
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
5547
Main Floor:
2818
Upper Floor:
2729
Unfinished Sq Ft:
Garage :
877

Dimensions

Width:
69' 8"
Depth:
89' 2"
Ridge Height:
34'0' 0"

Architectural Styles

Mediterranean
Luxury

Exterior Wall Material

Stucco

Roofing Type

Hip

Roof Pitch

5/12

Special Feature

Dining Room
Game Room
Main Level Laundry
Library
Loft
Balcony

Garage Type

Attached Garage
Courtyard Entry

Kitchen Features

Kitchen Island
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Walk In Closet
Private Deck
Second Floor Master

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
