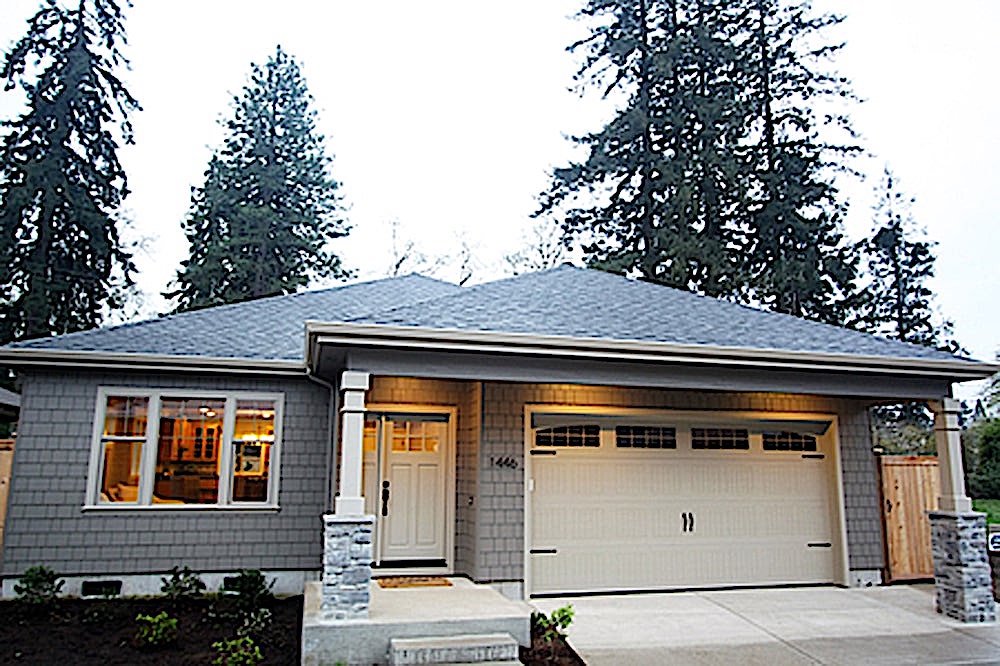

3-Bedroom, 1737 Sq Ft Shingle Home with Main Floor Master
Related House Plans
| 1737 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 42' 0" WIDTH | 67' 0" DEPTH | 2 GARAGE BAY |

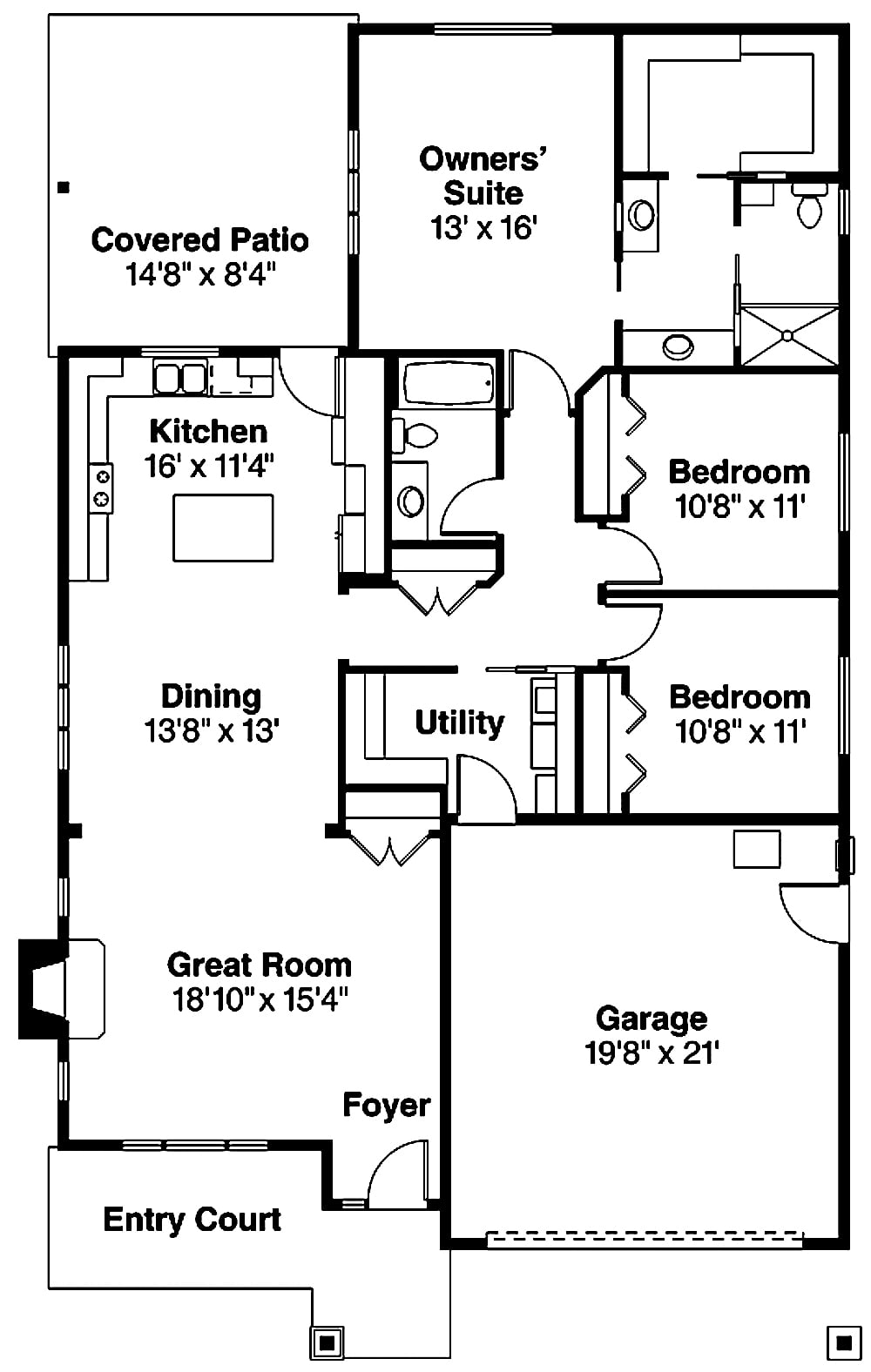

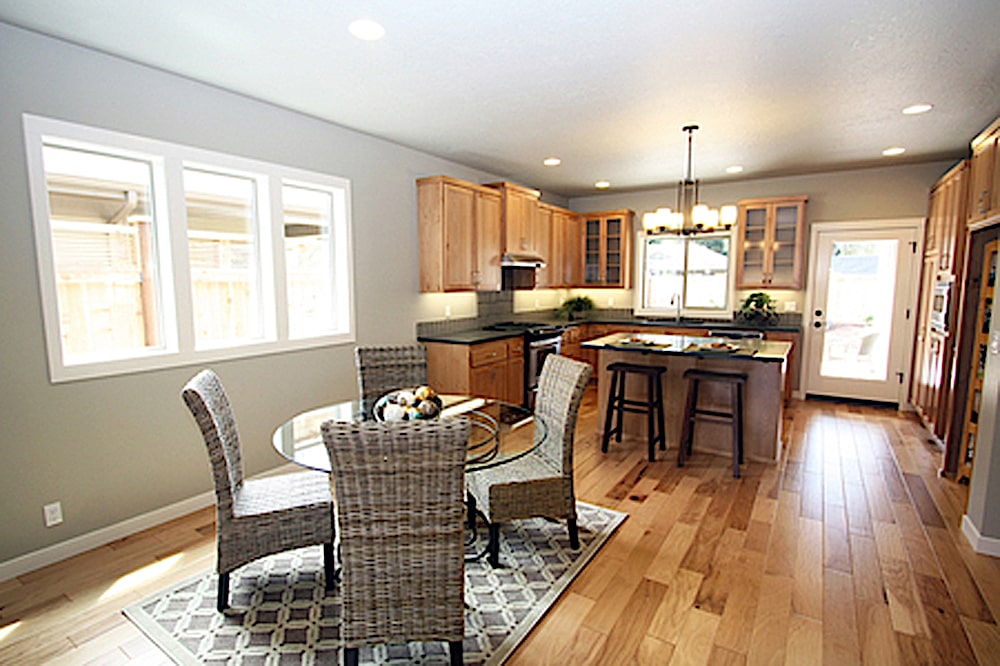

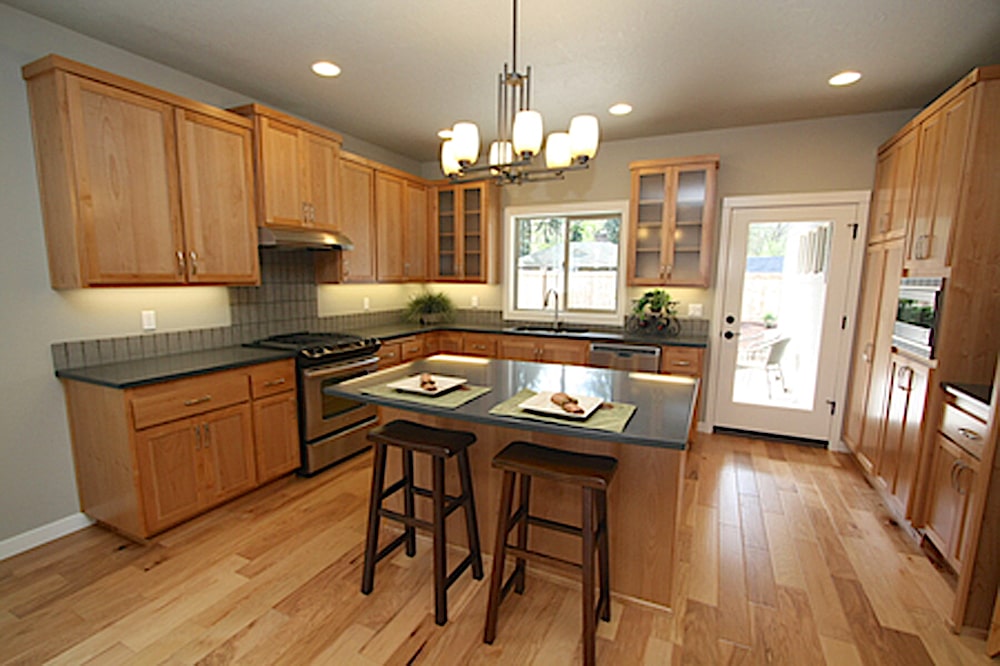

The open floor plan of the Great Room, dining room, and kitchen makes up the left-hand side of this transitional Shingle-style home. The house plan has a total floor area of 2,172 square feet of finished and unfinished space under its roof for family use. This home also has a rustic Ranch-style feel to it.

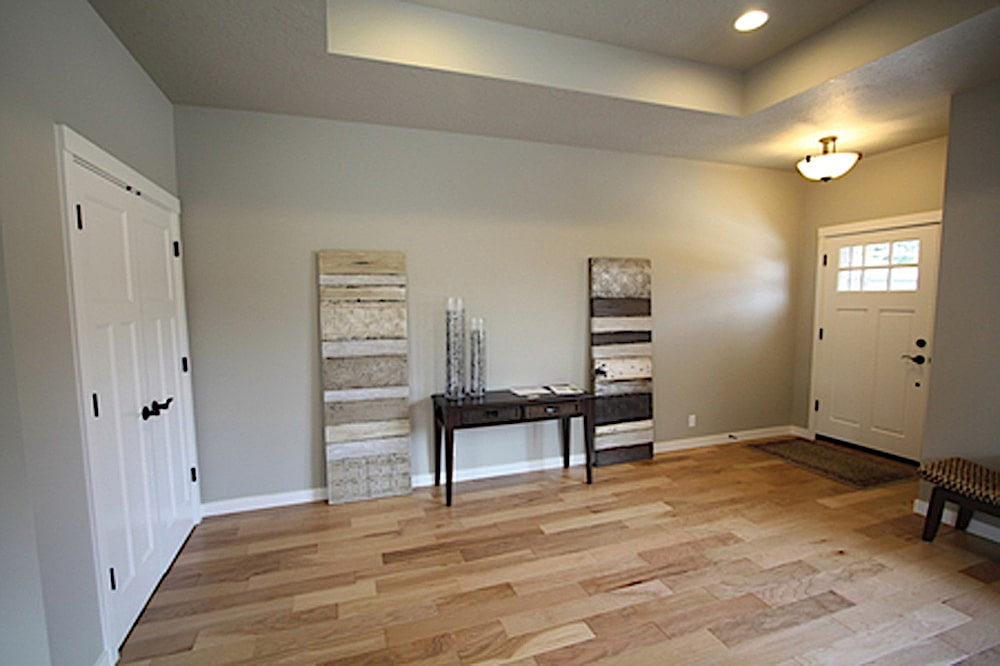

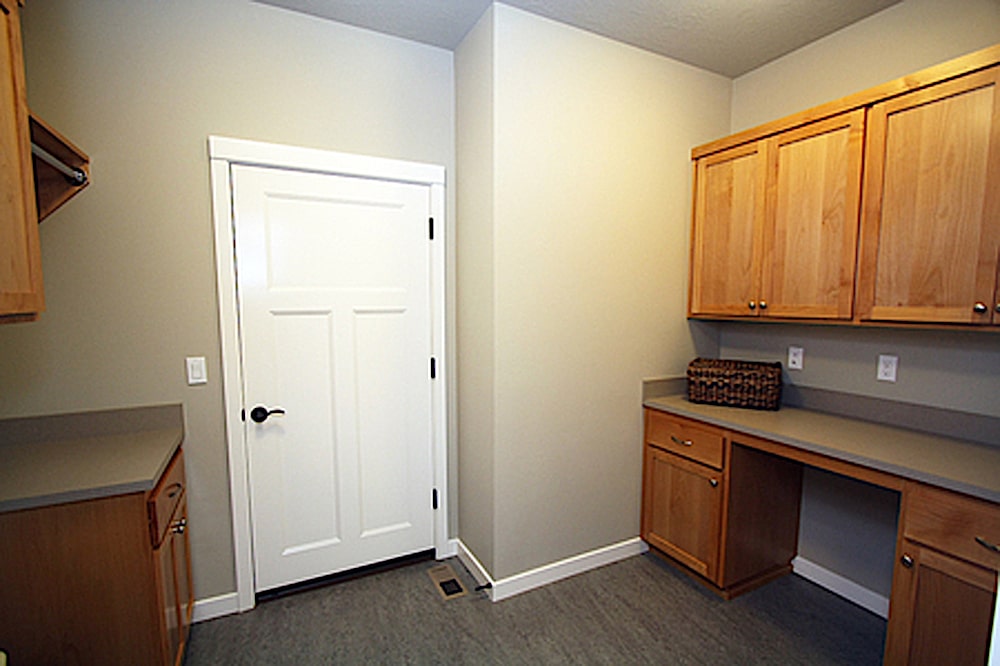

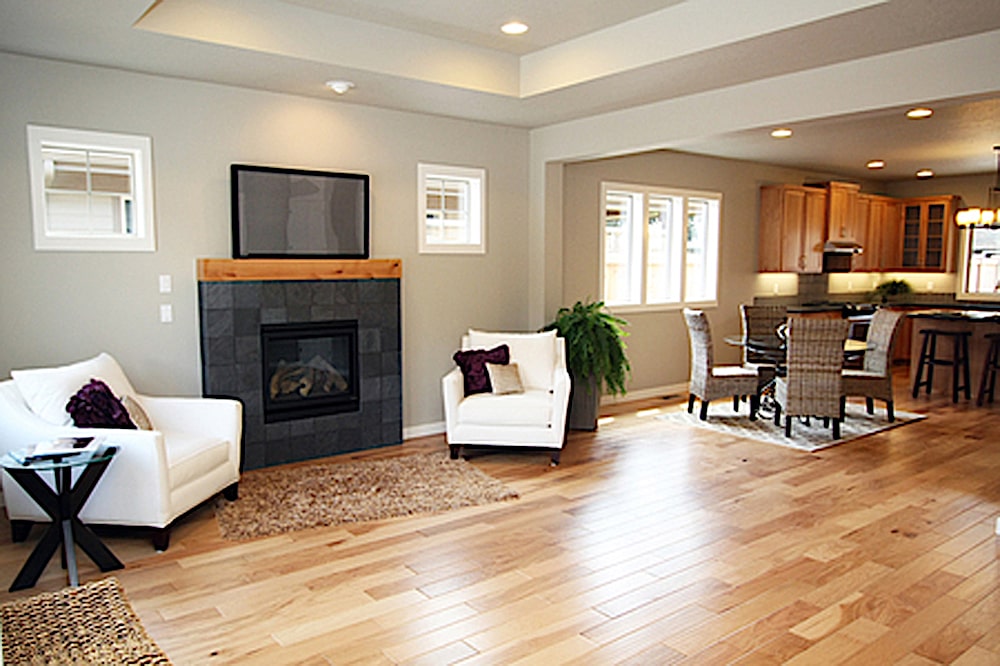

A covered entry court protects the main entrance door into the living areas of the house with an free-flowing feel that gives a wider appearance inside the house. A fireplace is centered on the Great Room wall framed by a window on each side. The 435 square-foot 2-car garage is at the front right side of the house providing a private entrance at the back into the utility room, kitchen, and bedrooms.
The master&n...
Each plan set includes the following:
-
Artist’s rendering of the home,
-

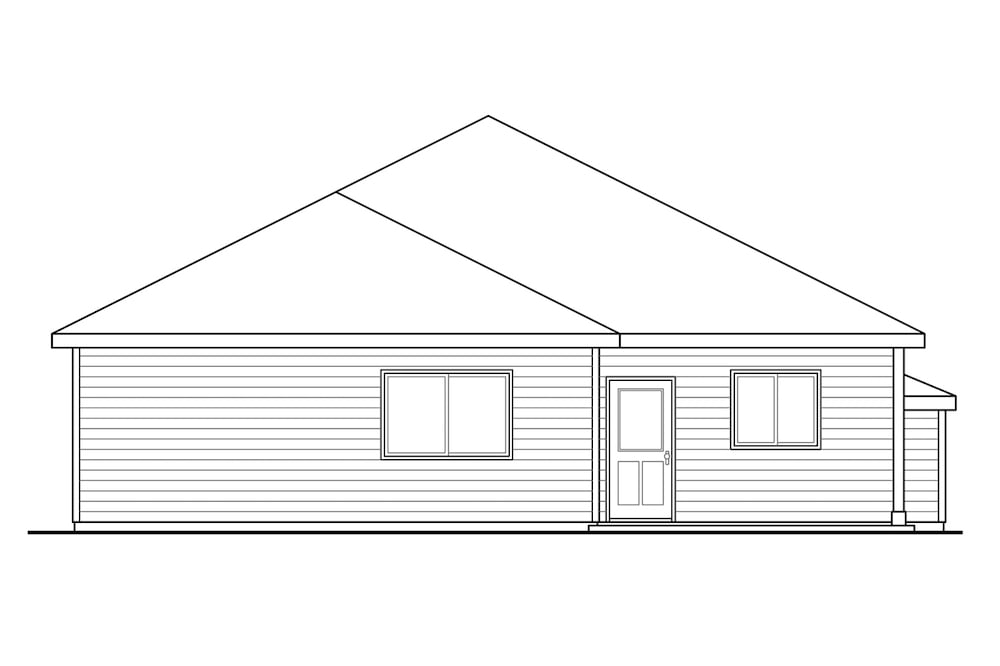

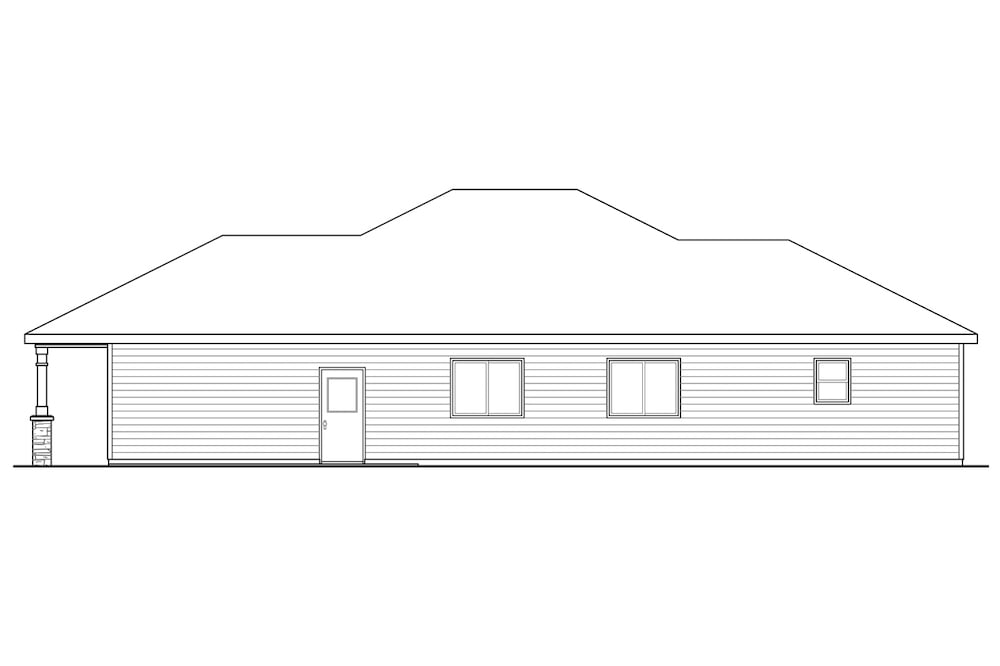

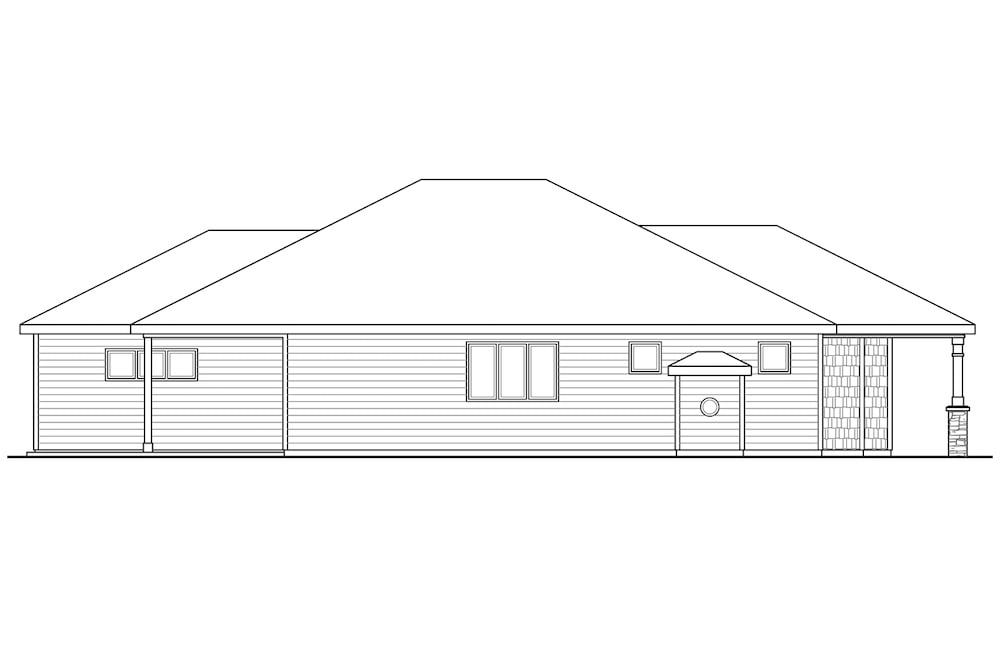

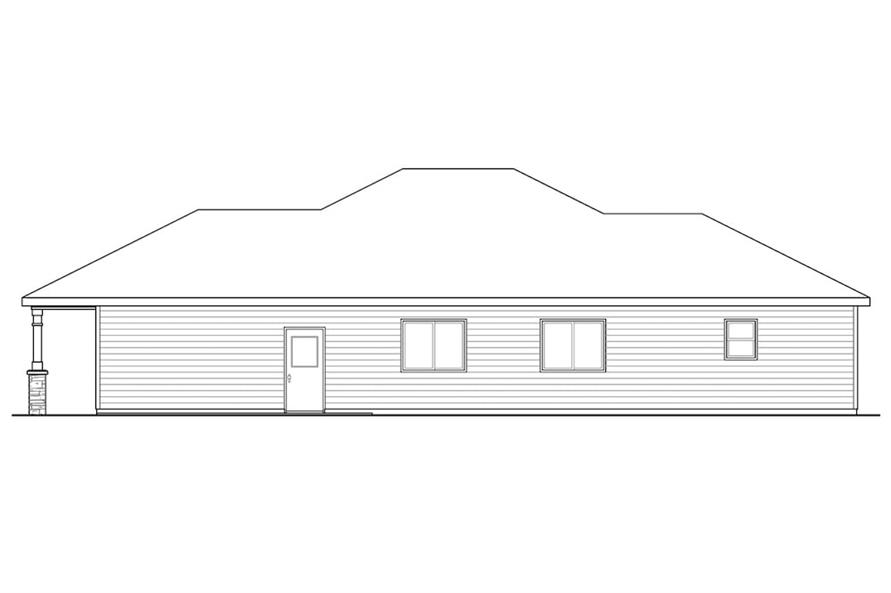

Front/Rear/Left and Right Elevations,
-
Main floor plan, Second or Basement floor plans (if applicable),
-
Foundation plan and detail,
-
Floor framing plan,
-
Roof framing plan, supporting details and
-
Electric layout.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
