4-Bedroom, 3098 Sq Ft Mediterranean Plan with Peninsula/Eating Bar
Related House Plans
| 3098 SQUARE FEET | 4 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 69' 4" WIDTH | 69' 4" DEPTH | 3 GARAGE BAY |
Varied rooflines in perfect balance plus uniquely detailed arches and banding give a timeless elegance to this Mediterranean home plan. Inside this floor is a large master wing with floor-to-ceiling windows overlooking the rear courtyard. Long diagonal views from the French doors allude to the spaciousness reiterated in the rest of the suite. The blueprint offers a garden shower for 2, separate Roman tub, dual sinks and walk-in closets complete the master suite. Just steps away the private den provides the owners with a peaceful, calming retreat. The formal living and dining room provide amazing views and convenient built-ins. The kitchen, family room and dinette open up to each other in this floor plan, providing for relaxed casual living. In the kitchen, a center island with second prep sink offers generous space for the family connoisseur. The large glass doors of this Mediterranean Home Plan seamlessly combine with family living area to the spacious lanai.
Each plan set includes the following:

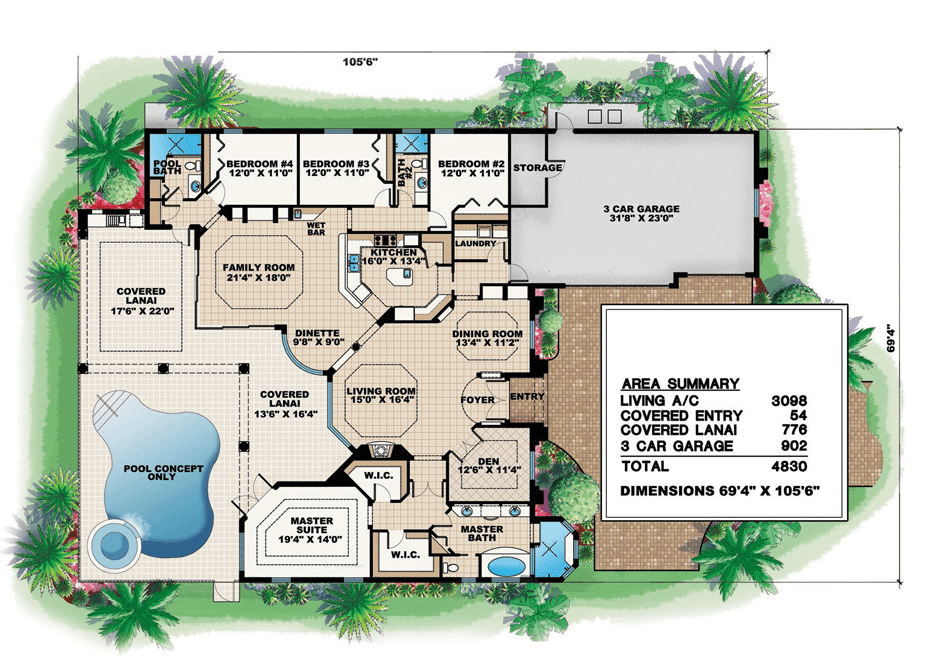

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
