5-Bedroom, 6924 Sq Ft Luxury Plan with Master Bathroom
Related House Plans
| 6924 SQUARE FEET | 5 BEDROOMS | 5 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 106' 8" WIDTH | 164' 0" DEPTH | 3 GARAGE BAY |
Luxury Home plans have extreme elegance! Words best describe this home plan with its attractive, Mediterranean exterior and open, flowing floor plan. Beyond the grand foyer is the two-story formal living room with large mitered bow windows at the first and second floor levels providing a breathtaking view of the pool area and beyond. Also in the living room is a stone fireplace with arched openings on either side that lead to the formal dining room, which has French doors that open onto the rear lanai. A large gourmet kitchen opens to the dinette, and family room areas and easily serves the dining room through the butler's pantry/wet bar. The family room is the center of activity with built-in entertainment center and large pocketing, zero-corner sliding glass doors which, when open; make the massive lanai space and family room one. On the lanai is an outdoor two-sided fireplace and outdoor kitchen/bar. The spacious master suite has a built-in entertainment center and French doors opening to a private lanai. Off the master suite is a sitting room with a kitchenette and bayed window viewing the rear of the property. The second floor holds three full bedrooms, each with its own bath. An expansive loft overlooks the living room and exterior balcony beyond completes this house plan.
Each plan set includes the following:

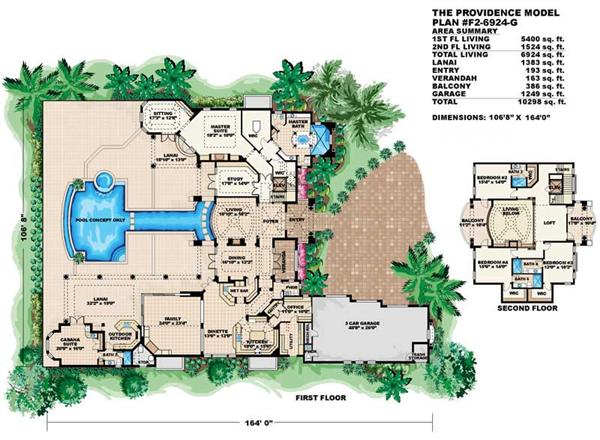

- FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
- FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
- ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
- ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

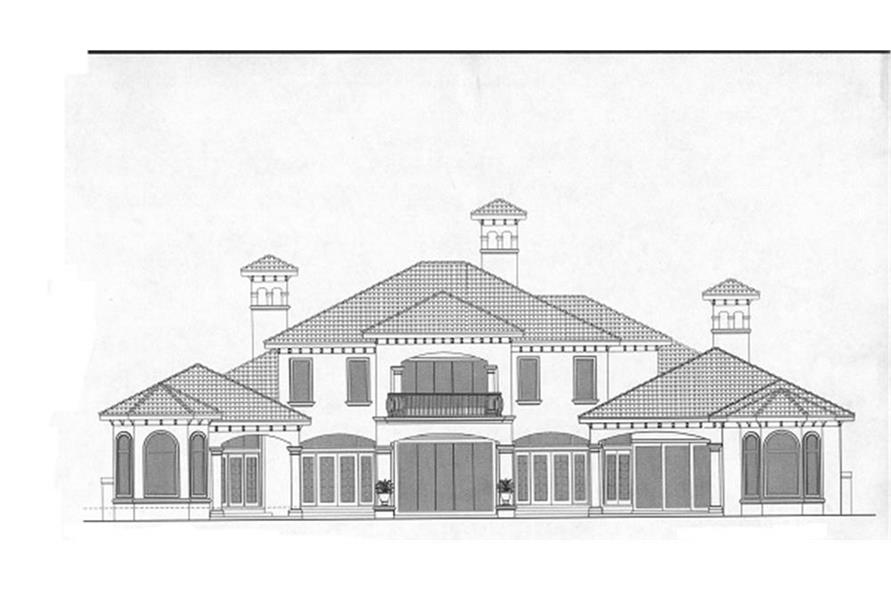

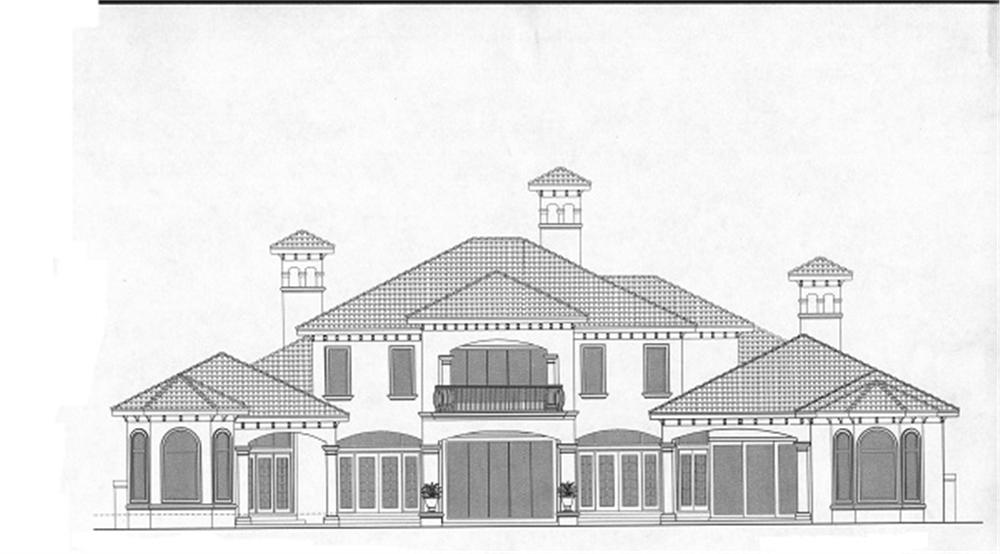

- FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
- CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
